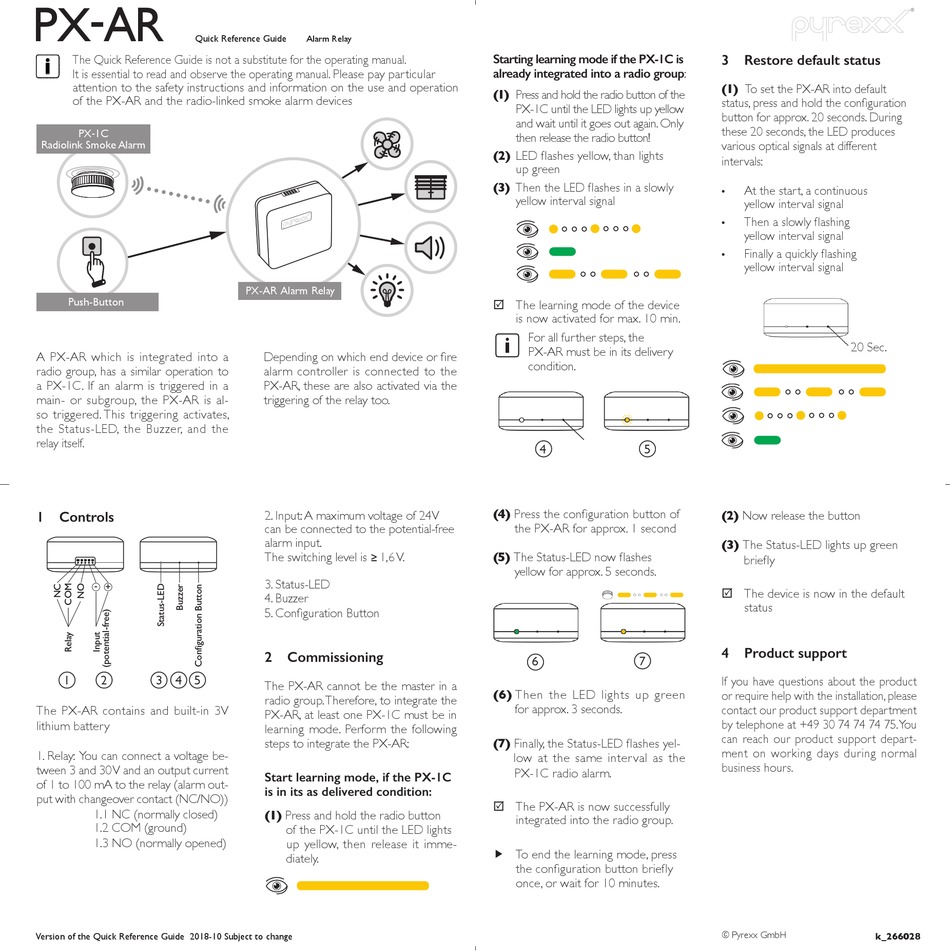

pyrexx PX-AR Kurzanleitung Seite 2

P X - AR
Quick Reference Guide
The Quick Reference Guide is not a substitute for the operating manual.
It is essential to read and observe the operating manual. Please pay particular
attention to the safety instructions and information on the use and operation
of the PX-AR and the radio-linked smoke alarm devices
PX - 1C
Radiolink Smoke Alarm
Push-Button
A PX-AR which is integrated into a
radio group, has a similar operation to
a PX-1C. If an alarm is triggered in a
main- or subgroup, the PX-AR is al-
so triggered. This triggering activates,
the Status-LED, the Buzzer, and the
relay itself.
1 Controls
- +
1 2 3 4 5
The PX-AR contains and built-in 3V
lithium battery
1. Relay: You can connect a voltage be-
tween 3 and 30 V and an output current
of 1 to 100 mA to the relay (alarm out-
put with changeover contact (NC/NO))
1.1 NC (normally closed)
1.2 COM (ground)
1.3 NO (normally opened)
Version of the Quick Reference Guide 2018-10 Subject to change
Alarm Relay
PX-AR Alarm Relay
Depending on which end device or fire
alarm controller is connected to the
PX-AR, these are also activated via the
triggering of the relay too.
2. Input: A maximum voltage of 24V
can be connected to the potential-free
alarm input.
The switching level is � 1,6 V.
3. Status-LED
4. Buzzer
5. Configuration Button
2 Commissioning
The PX-AR cannot be the master in a
radio group. Therefore, to integrate the
PX-AR, at least one PX-1C must be in
learning mode. Perform the following
steps to integrate the PX-AR:
Start learning mode, if the PX-1C
is in its as delivered condition:
(1) Press and hold the radio button
of the PX-1C until the LED lights
up yellow, then release it imme-
diately.
Starting learning mode if the PX-1C is
already integrated into a radio group:
(1) Press and hold the radio button of the
PX-1C until the LED lights up yellow
and wait until it goes out again. Only
then release the radio button!
(2) LED flashes yellow, than lights
up green
(3) Then the LED flashes in a slowly
yellow interval signal
5 The learning mode of the device
is now activated for max. 10 min.
For all further steps, the
PX-AR must be in its delivery
condition.
4 5
(4) Press the configuration button of
the PX-AR for approx. 1 second
(5) The Status-LED now flashes
yellow for approx. 5 seconds.
6 7
(6) Then the LED lights up green
for approx. 3 seconds.
(7) Finally, the Status-LED flashes yel-
low at the same interval as the
PX-1C radio alarm.
5 The PX-AR is now successfully
integrated into the radio group.
f To end the learning mode, press
the configuration button briefly
once, or wait for 10 minutes.
3 Restore default status
(1) To set the PX-AR into default
status, press and hold the configuration
button for approx. 20 seconds. During
these 20 seconds, the LED produces
various optical signals at different
intervals:
At the start, a continuous
•
yellow interval signal
Then a slowly flashing
•
yellow interval signal
Finally a quickly flashing
•
yellow interval signal
20 Sec.
(2) Now release the button
(3) The Status-LED lights up green
briefly
5 The device is now in the default
status
4 Product support
If you have questions about the product
or require help with the installation, please
contact our product support department
by telephone at +49 30 74 74 74 75. You
can reach our product support depart-
ment on working days during normal
business hours.
© Pyrexx GmbH
k_266028
