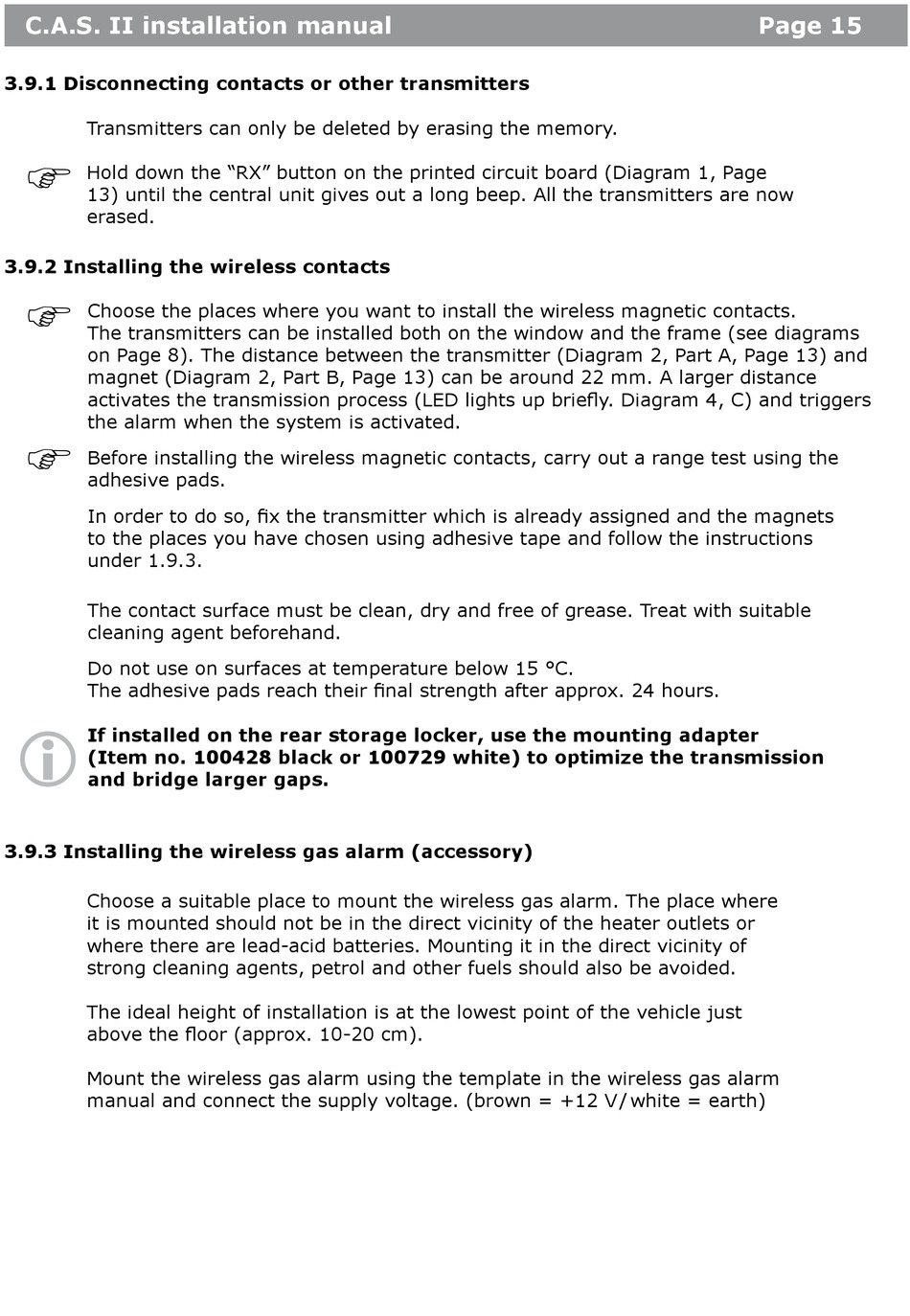

C.A.S. II installation manual
3.9.1 Disconnecting contacts or other transmitters
Transmitters can only be deleted by erasing the memory.

Hold down the "RX" button on the printed circuit board (Diagram 1, Page
13) until the central unit gives out a long beep. All the transmitters are now
erased.
3.9.2 Installing the wireless contacts

Choose the places where you want to install the wireless magnetic contacts.
The transmitters can be installed both on the window and the frame (see diagrams
on Page 8). The distance between the transmitter (Diagram 2, Part A, Page 13) and
magnet (Diagram 2, Part B, Page 13) can be around 22 mm. A larger distance
a ctivates the transmission process (LED lights up briefly. Diagram 4, C) and triggers
the alarm when the system is activated.

Before installing the wireless magnetic contacts, carry out a range test using the
adhesive pads.
I n order to do so, fix the transmitter which is already assigned and the magnets
to the places you have chosen using adhesive tape and follow the instructions
under 1.9.3.
The contact surface must be clean, dry and free of grease. Treat with suitable
cleaning agent beforehand.
Do not use on surfaces at temperature below 15 °C.
The adhesive pads reach their final strength after approx. 24 hours.
If installed on the rear storage locker, use the mounting adapter
(Item no. 100428 black or 100729 white) to optimize the transmission
and bridge larger gaps.

3.9.3 Installing the wireless gas alarm (accessory)

Choose a suitable place to mount the wireless gas alarm. The place where
it is mounted should not be in the direct vicinity of the heater outlets or
where there are lead-acid batteries. Mounting it in the direct vicinity of
strong cleaning agents, petrol and other fuels should also be avoided.
The ideal height of installation is at the lowest point of the vehicle just
above the floor (approx. 10-20 cm).
Mount the wireless gas alarm using the template in the wireless gas alarm
manual and connect the supply voltage. (brown = +12 V / white = earth)
Page 15
