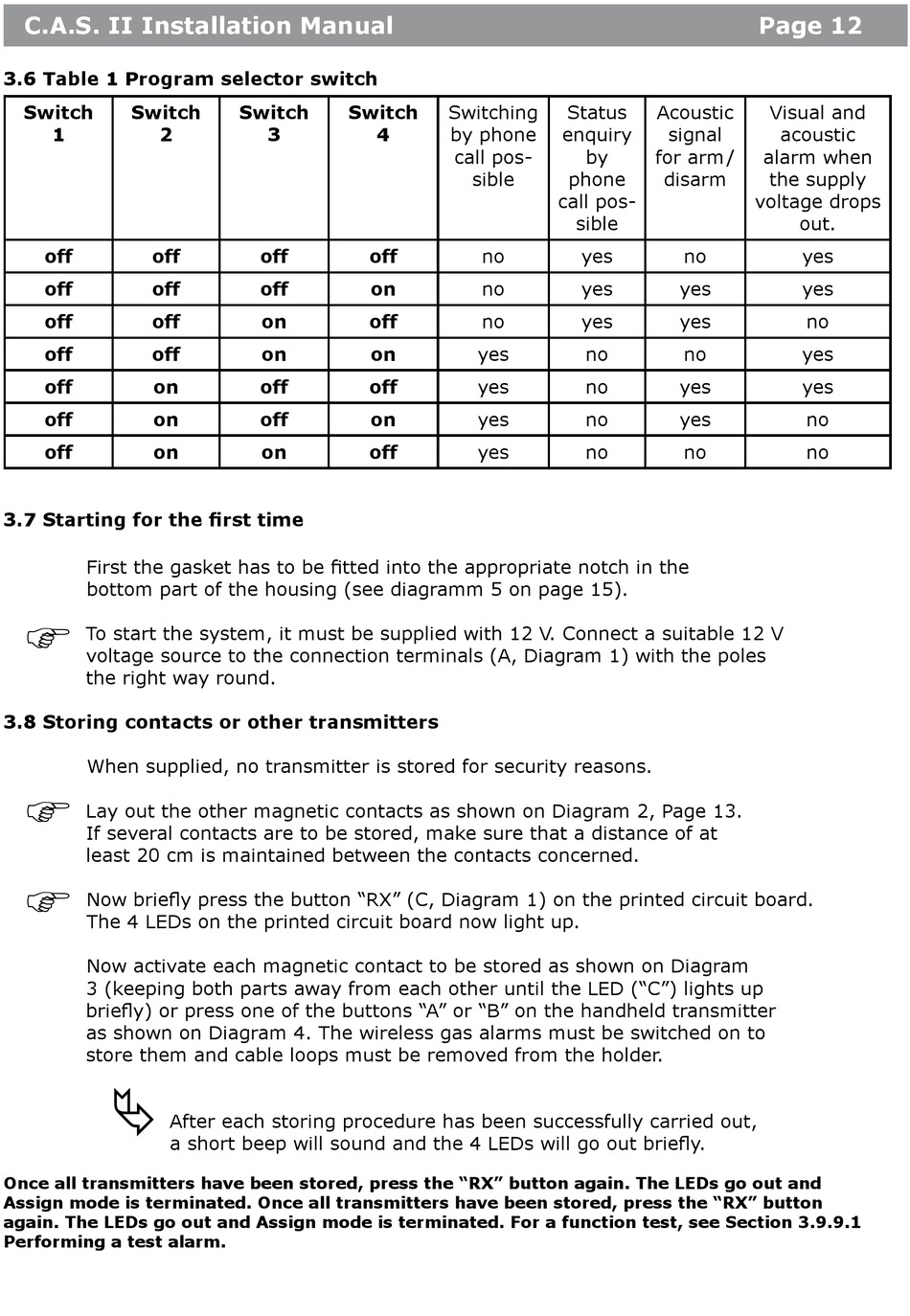

C.A.S. II Installation Manual
3.6 Table 1 Program selector switch
Switch
Switch
1
2
off
off
off
off
off
off
off
off
off
on
off
on
off
on
3.7 Starting for the first time
First the gasket has to be fitted into the appropriate notch in the
bottom part of the housing (see diagramm 5 on page 15).
To start the system, it must be supplied with 12 V. Connect a suitable 12 V
voltage source to the connection terminals (A, Diagram 1) with the poles
the right way round.
3.8 Storing contacts or other transmitters
When supplied, no transmitter is stored for security reasons.
Lay out the other magnetic contacts as shown on Diagram 2, Page 13.
If several contacts are to be stored, make sure that a distance of at
least 20 cm is maintained between the contacts concerned.
Now briefly press the button "RX" (C, Diagram 1) on the printed circuit board.
The 4 LEDs on the printed circuit board now light up.
Now activate each magnetic contact to be stored as shown on Diagram
3 (keeping both parts away from each other until the LED ("C") lights up
briefly) or press one of the buttons "A" or "B" on the handheld transmitter
as shown on Diagram 4. The wireless gas alarms must be switched on to
store them and cable loops must be removed from the holder.
After each storing procedure has been successfully carried out,
a short beep will sound and the 4 LEDs will go out briefly.
Once all transmitters have been stored, press the "RX" button again. The LEDs go out and
Assign mode is terminated. Once all transmitters have been stored, press the "RX" button
again. The LEDs go out and Assign mode is terminated. For a function test, see Section 3.9.9.1
Performing a test alarm.
Switch
Switch
3
4
off
off
off
on
on
off
on
on
off
off
off
on
on
off
Switching
Status
by phone
enquiry
call pos-
by
sible
phone
call pos-
sible
no
yes
no
yes
no
yes
yes
no
yes
no
yes
no
yes
no
Page 12
Acoustic
Visual and
signal
acoustic
for arm /
alarm when
disarm
the supply
voltage drops
out.
no
yes
yes
yes
yes
no
no
yes
yes
yes
yes
no
no
no
