Instructions For Use – Inductive Coupler NIC...-M30

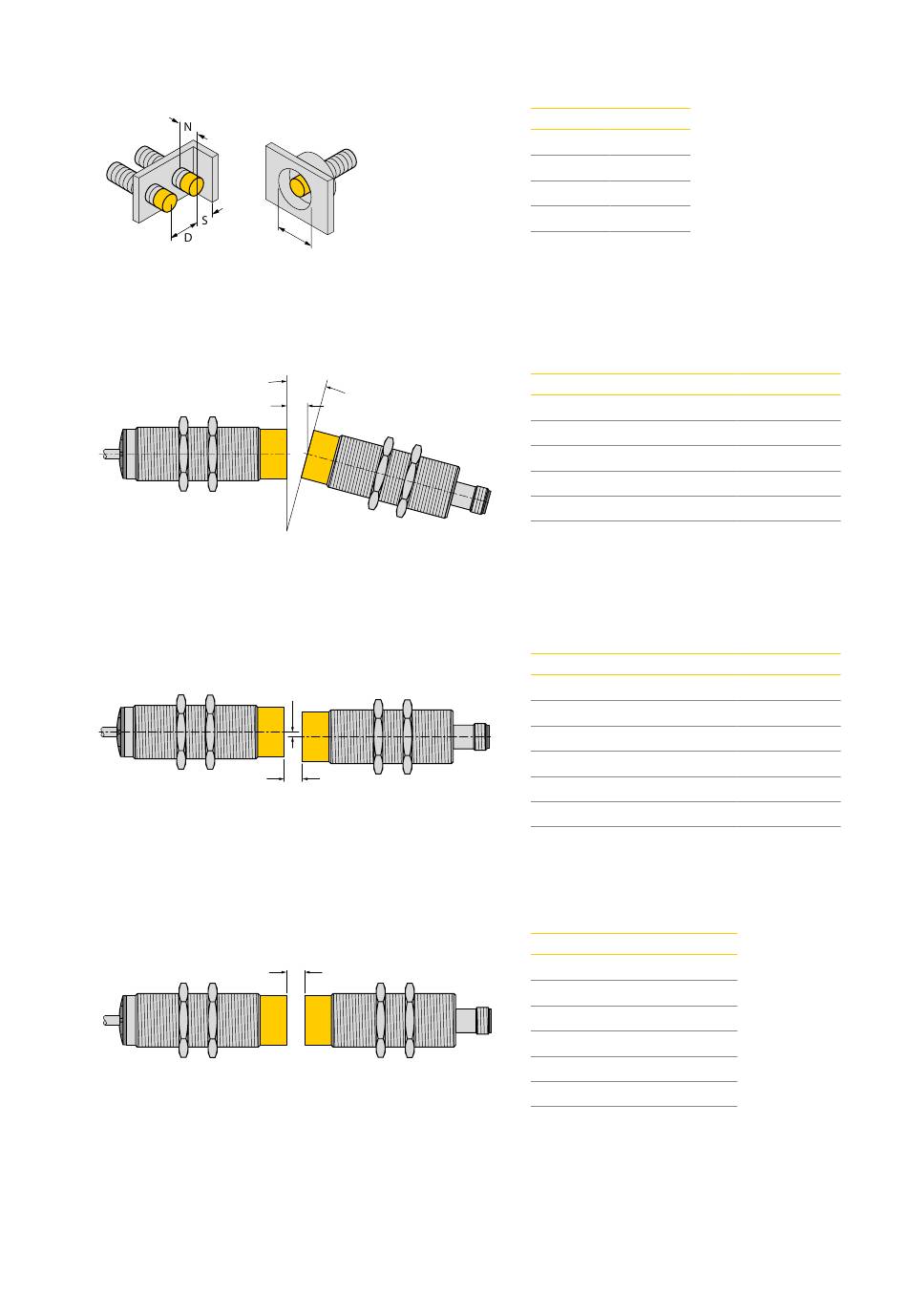

Fig. 8: Mounting distances
5.1 Power With Angle Offset
Fig. 9: Angle offset
5.2 Power With Lateral Offset
Fig. 10: Lateral offset between primary side (right) and secondary side (left)
5.3 Distance Between Primary Side And Secondary Side
Fig. 11: Distance between primary side (right) and secondary side (left)
12
T
α
D
M
D
D
Hans Turck GmbH & Co. KG • Tel. +49 208/4952-0 • Fax +49 208/4952-264
Distance
T 60 mm
N 26.5 mm
S 30 mm
D 60 mm
Distance D angle α
2 mm 7.5°
4 mm 15°
5 mm 20°
7 mm 25°
8 mm 30°
Distance D Offset M
0 mm 5 mm
2 mm 5 mm
4 mm 5 mm
5 mm 3 mm
7 mm 2 mm
8 mm 1 mm
Distance D Power
0 mm 12 W
2 mm 12 W
4 mm 12 W
6 mm 12 W
7 mm 12 W
8 mm 1 W
Power
12 W
12 W
12 W
12 W
1 W
Power
12 W
12 W
12 W
12 W
12 W
1 W
