Instructions For Use – Inductive Coupler NIC...-M30
4.3.2 IO-Link Mode
The devices NICP-M30-IOL2P8X-H1141 (primary) and NICS-M30-IOL2P8-0,3-RKC4.4T (secondary) are required for
IO-Link mode. IO-Link mode provides a bidirectional IO-Link communication between an IO-Link master and an
IO-Link device via the air interface.

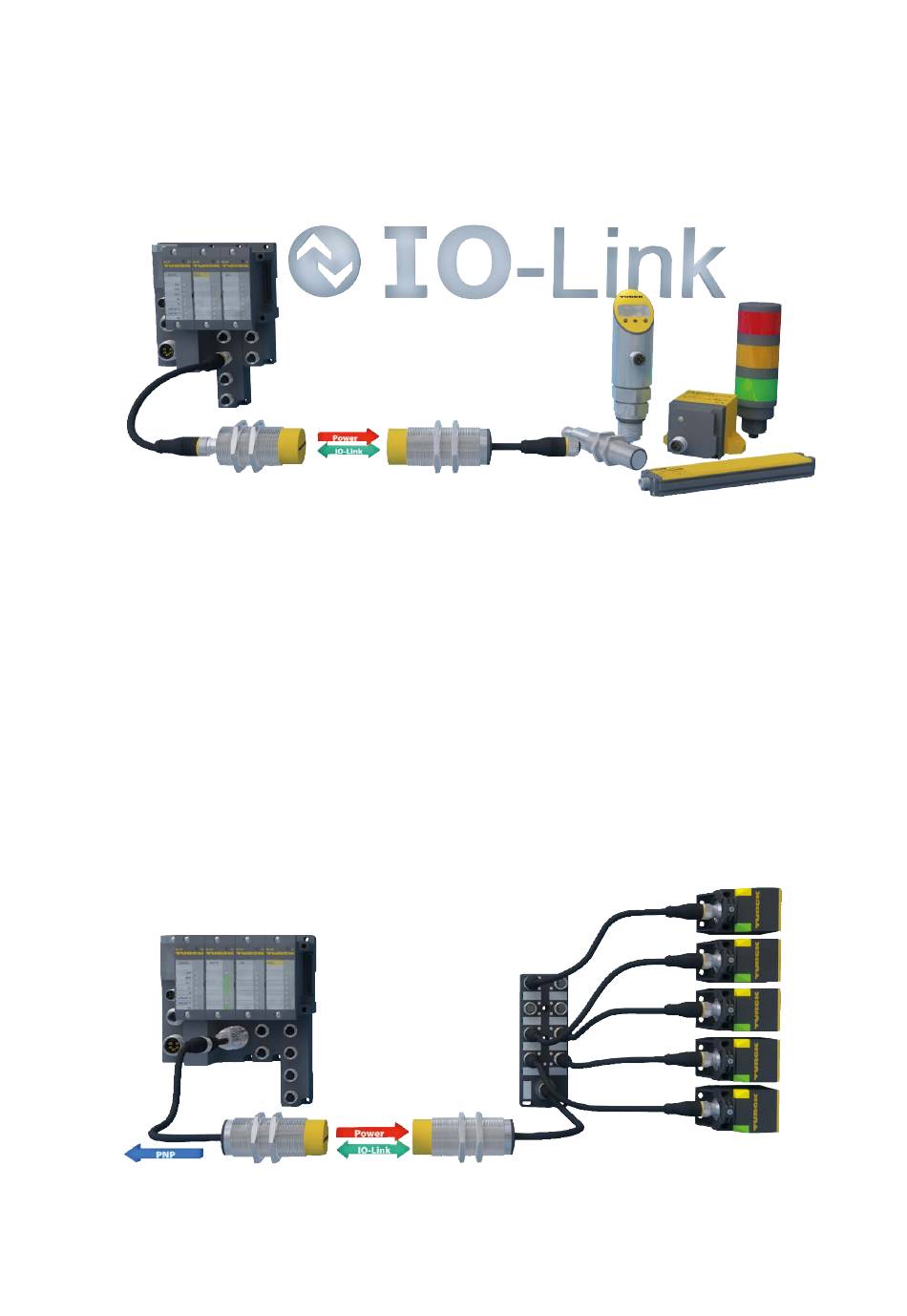

Fig. 6: Setup example for IO-Link communication
4.3.3 Transfer Of 8 Standard PNP Signals
To transfer 8 standard PNP signals, the following devices are required:
■
NICP-M30-8P8-0,3-RSC12T (primary)
■
NICS-M30-IOL2P8-0,3-RKC4.4T (secondary)
■
TBIL-M1-16DIP (I/O hub for IO-Link).
If the secondary side is connected to an I/O hub for IO-Link TBIL-M1-16DIP, up to 8 standard PNP signals can be
transferred via the inductive coupler. For this a PNP sensor is connected to the ports of the TBIL-M1-16DIP on chan-
nel A. On the primary side, the PNP sensor signals can be connected to a digital input card via the connector at the
device.
Fig. 7: Setup example for transferring 8 standard PNP signals
