Instructions For Use – Inductive Coupler NIC...-M30
4 Product Description
4.1

Device Overview

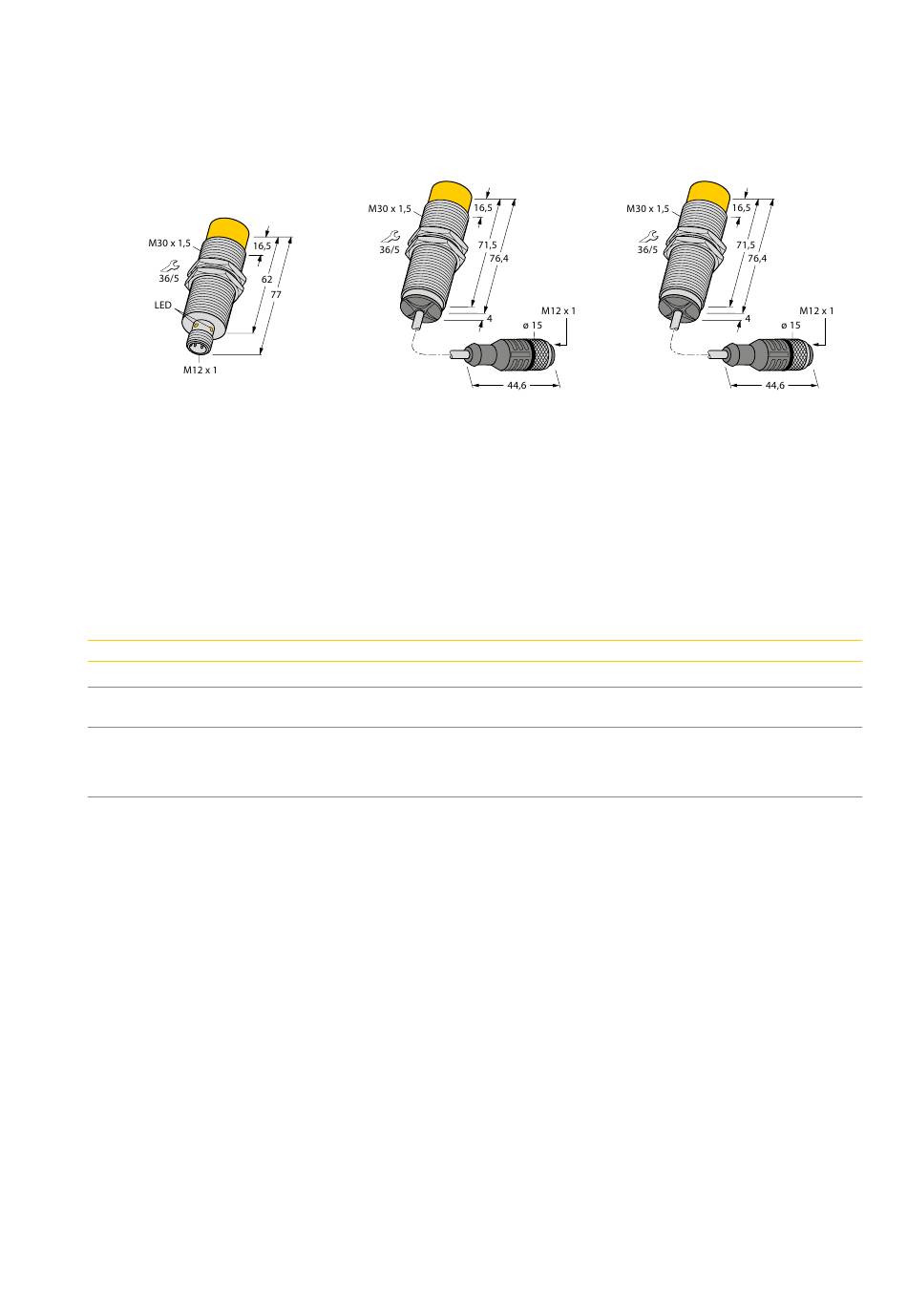

Fig. 1: NICP-M30-IOL2P8X-H1141
primary side
The devices have a cylindrical housing style with an M30 × 1.5 male thread. An M12 connector (male) directly on
the housing is used to connect the NICP-M30-IOL2P8X-H1141 primary side. The NICP-M30-8P8-0,3-RSC12T pri-
mary side and the NICS-M30-IOL2P8-0,3-RKC4.4T secondary side are provided with a 0.3 m connection cable with
an M12 female connector (pigtail).
4.1.1 Indication Elements
The NICP-M30-IOL2P8X-H1141 primary side is provided with an LED for status indication.
Status LED
LED continuously lit
LED flashes at a frequency of 10 Hz
LED flashes at a frequency of 1 Hz
8
Fig. 2: NICP-M30-8P8-0,3-RSC12T
primary side
Meaning
Data and power transfer OK
Secondary side missing, no communication between primary and secondary
side
The FOD function (Foreign Object Detection) is active. The FOD detects metal
foreign objects between the primary and secondary side. The power supply of
the device is switched off if the FOD detects foreign objects (see chapter 6.3,
page 14).
Hans Turck GmbH & Co. KG • Tel. +49 208/4952-0 • Fax +49 208/4952-264
Fig. 3: NICS-M30-IOL2P8-0,3-RKC4.4T
secondary side
