Control inputs / Relay outputs

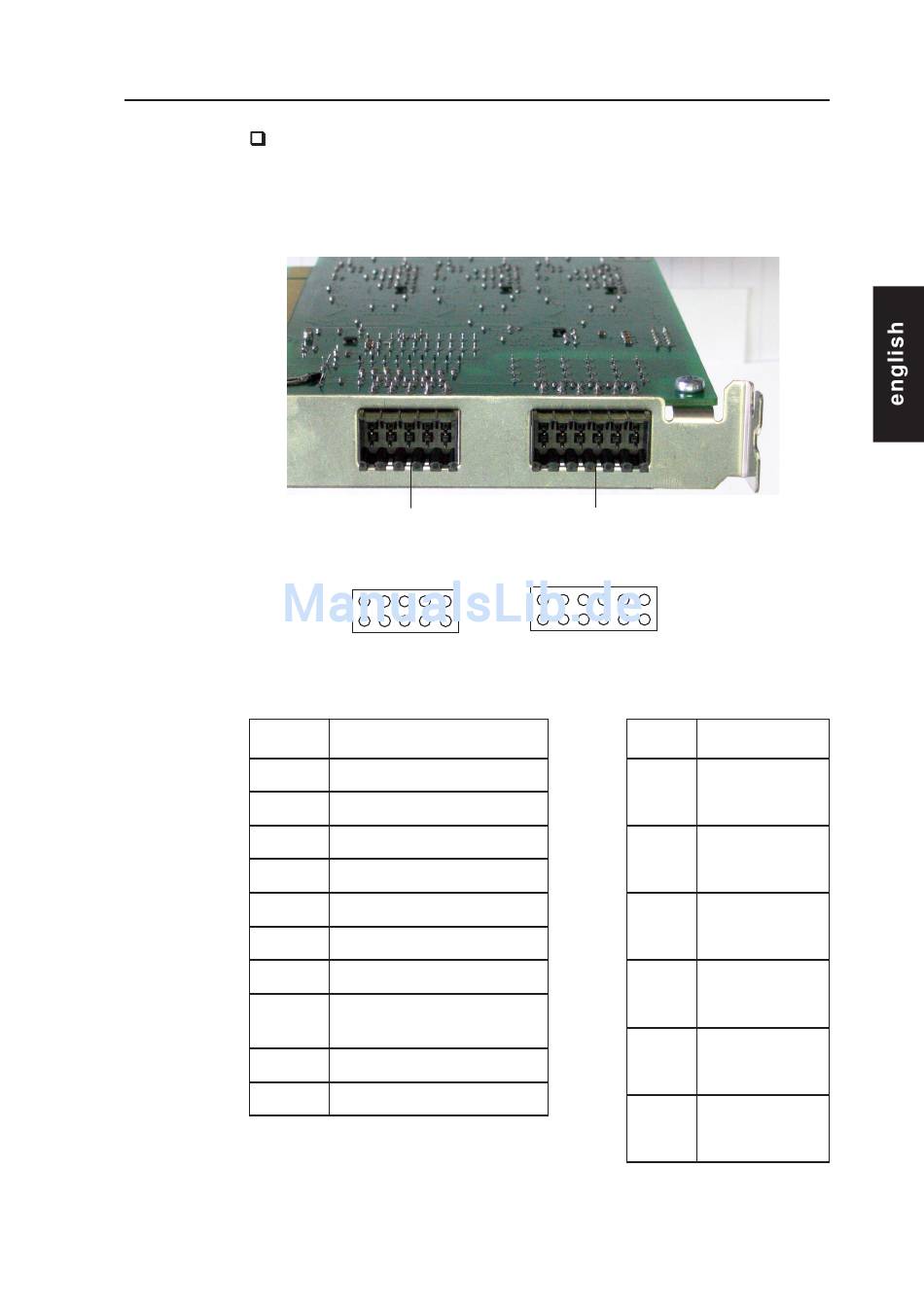

The inputs and outputs on the PCI card are floating contacts that
can be configured as either openers or closers.
Control inputs
PIN
1
2
3
4
5
6
7
8
9
10
Dallmeier electronic GmbH & Co.KG
Contact inputs
10
2
9
1
Function
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Switch over programs
Activate/Deactivate
the sensor
Ground
Ground
Relay outputs
12
2
11 1
Relay outputs
PIN
1
2
3
4
5
6
7
8
9
10
11
12
Function
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
