Installation and User Manual

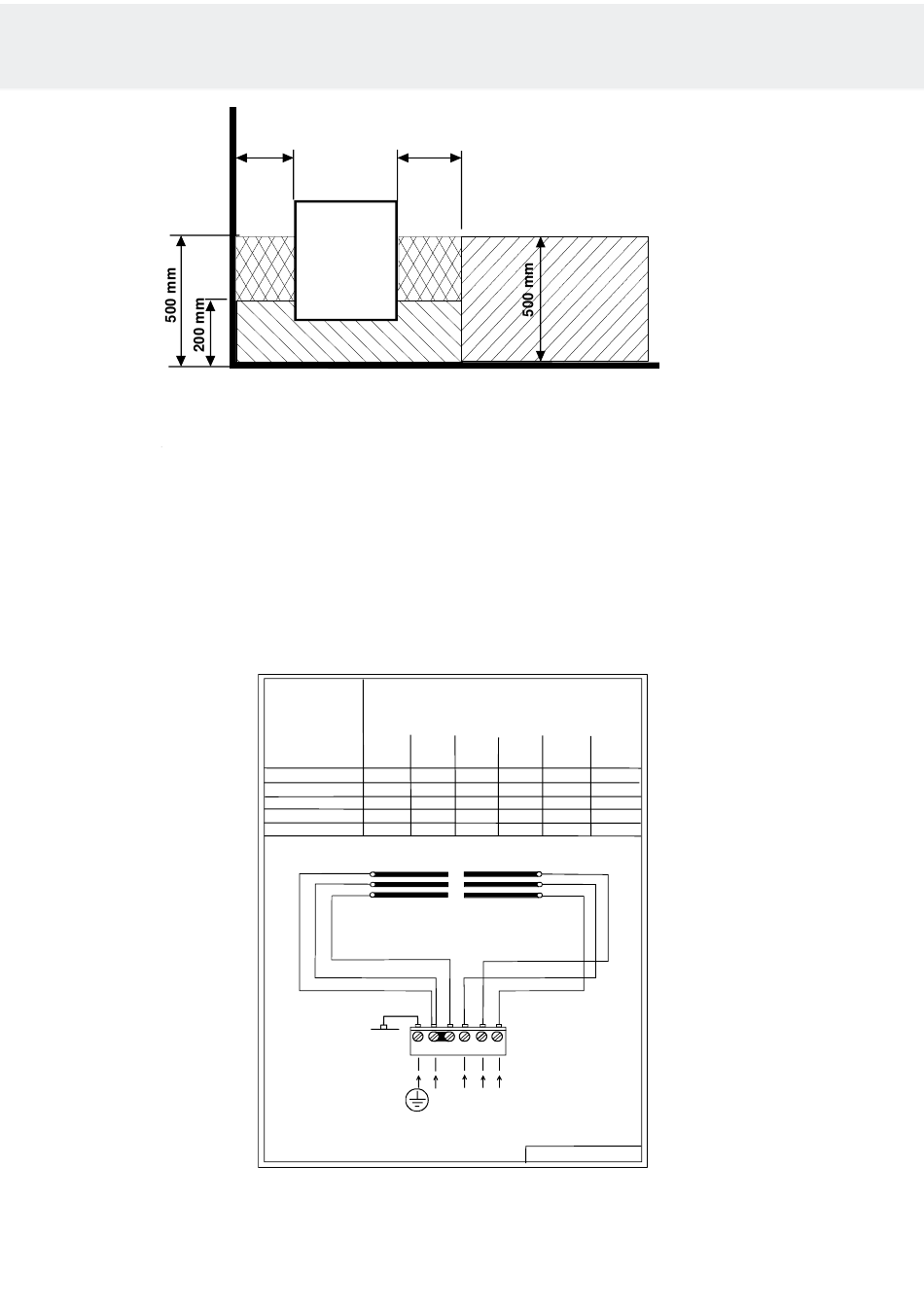

Image 6 Location for the connection box

2.12 Location the connection box for connection cable in the sauna room

A = Specified minimum safety clearance
1. Recommended location for the connection box
2. Silumin box recommended in this area.
3. This area should be avoided. Always use a silumin box.
In other areas, use a heat-resisting box (T 125 °C) and heat-resisting cables (T 170 °C). The connection box
must be clear of obstacles. When installing the connection box to zones 2 or 3, refer to the instructions and
regulations of the local energy supplier.

2.13 Wiring diagram

Vienna D
A
KIUAS
Heater
Lämpövastukset, Värmeelement,
Teho, Effekt
Heating elements, Heizeelement
Input, Leistung
SEPC 63 SEPC 64 SEPC 65
kW
1500W
4,5
1,2,3
6,0
8,0
1 2 3 4 5 6
Image 7 Wiring diagram
A
3.
1.
2.
230 V
2000W 2670W
1,2,3
1,2,3
3
2
1
N U V W
354 SKSM 152 A
9
