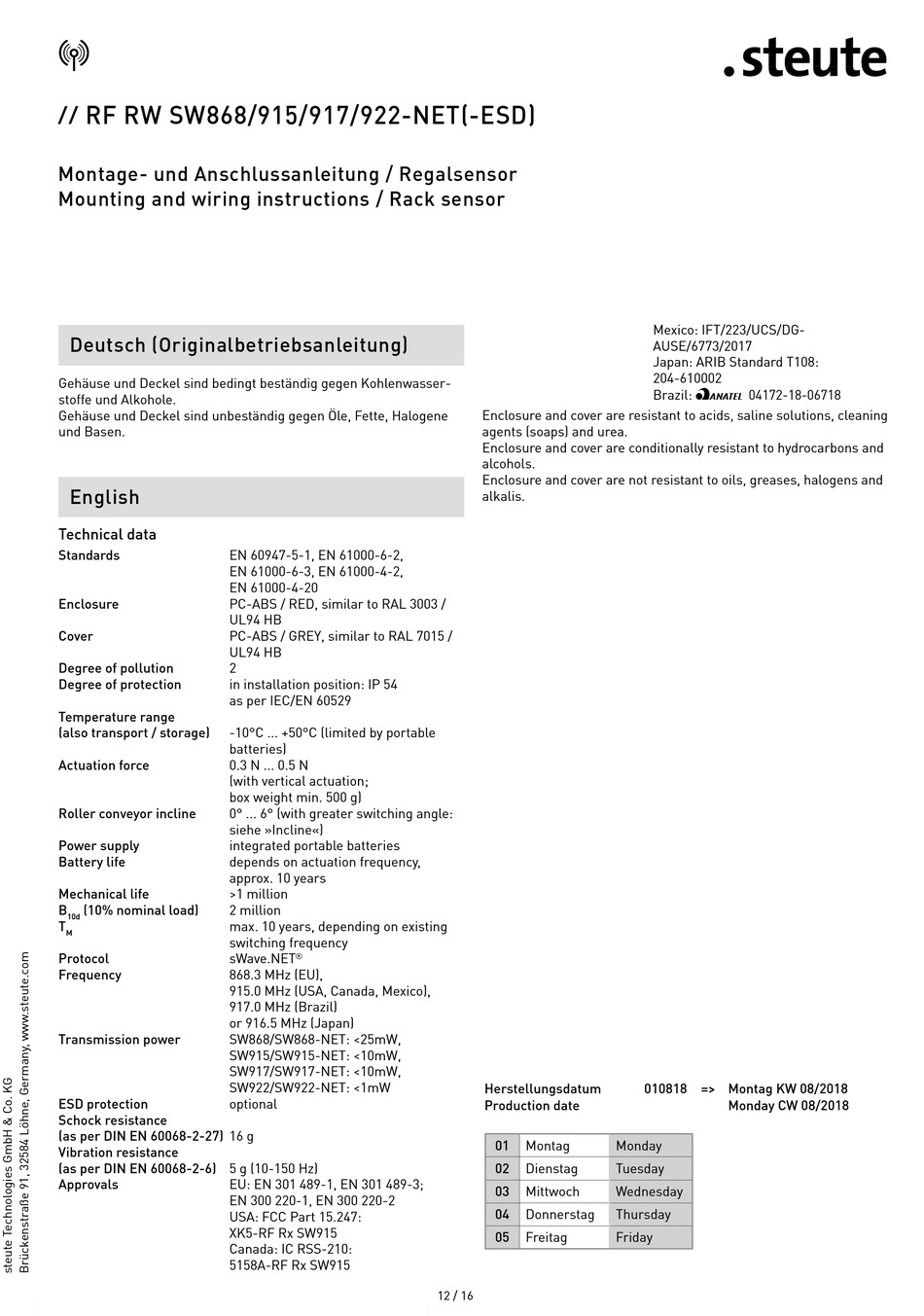

RF RW SW868/915/917/922-NET(-ESD)
//
Montage- und Anschlussanleitung / Regalsensor
Mounting and wiring instructions / Rack sensor
Deutsch (Originalbetriebsanleitung)
Gehäuse und Deckel sind bedingt beständig gegen Kohlenwasser-
stoffe und Alkohole.
Gehäuse und Deckel sind unbeständig gegen Öle, Fette, Halogene
und Basen.
English
Technical data
Standards
EN 60947-5-1, EN 61000-6-2,
EN 61000-6-3, EN 61000-4-2,
EN 61000-4-20
Enclosure
PC-ABS / RED, similar to RAL 3003 /
UL94 HB
Cover
PC-ABS / GREY, similar to RAL 7015 /
UL94 HB
Degree of pollution
2
Degree of protection
in installation position: IP 54
as per IEC/EN 60529
Temperature range
(also transport / storage)
-10°C ... +50°C (limited by portable
batteries)
Actuation force
0.3 N ... 0.5 N
(with vertical actuation;
box weight min. 500 g)
Roller conveyor incline
0° ... 6° (with greater switching angle:
siehe »Incline«)
Power supply
integrated portable batteries
Battery life
depends on actuation frequency,
approx. 10 years
Mechanical life
>1 million
B
(10% nominal load)
2 million
10d
T
max. 10 years, depending on existing
M
switching frequency
Protocol
sWave.NET
Frequency
868.3 MHz (EU),
915.0 MHz (USA, Canada, Mexico),
917.0 MHz (Brazil)
or 916.5 MHz (Japan)
Transmission power
SW868/SW868-NET: <25mW,
SW915/SW915-NET: <10mW,
SW917/SW917-NET: <10mW,
SW922/SW922-NET: <1mW
ESD protection
optional
Schock resistance
(as per DIN EN 60068-2-27) 16 g
Vibration resistance
(as per DIN EN 60068-2-6) 5 g (10-150 Hz)
Approvals
EU: EN 301 489-1, EN 301 489-3;
EN 300 220-1, EN 300 220-2
USA: FCC Part 15.247:
XK5-RF Rx SW915
Canada: IC RSS-210:
5158A-RF Rx SW915
r
12 / 16
Mexico: IFT/223/UCS/DG-
AUSE/6773/2017
Japan: ARIB Standard T108:
204-610002
Brazil:
Enclosure and cover are resistant to acids, saline solutions, cleaning
agents (soaps) and urea.
Enclosure and cover are conditionally resistant to hydrocarbons and
alcohols.
Enclosure and cover are not resistant to oils, greases, halogens and
alkalis.
Herstellungsdatum
010818 => Montag KW 08/2018
Production date
01
Montag
Monday
02
Dienstag
Tuesday
03
Mittwoch
Wednesday
04
Donnerstag
Thursday
05
Freitag
Friday
04172-18-06718
