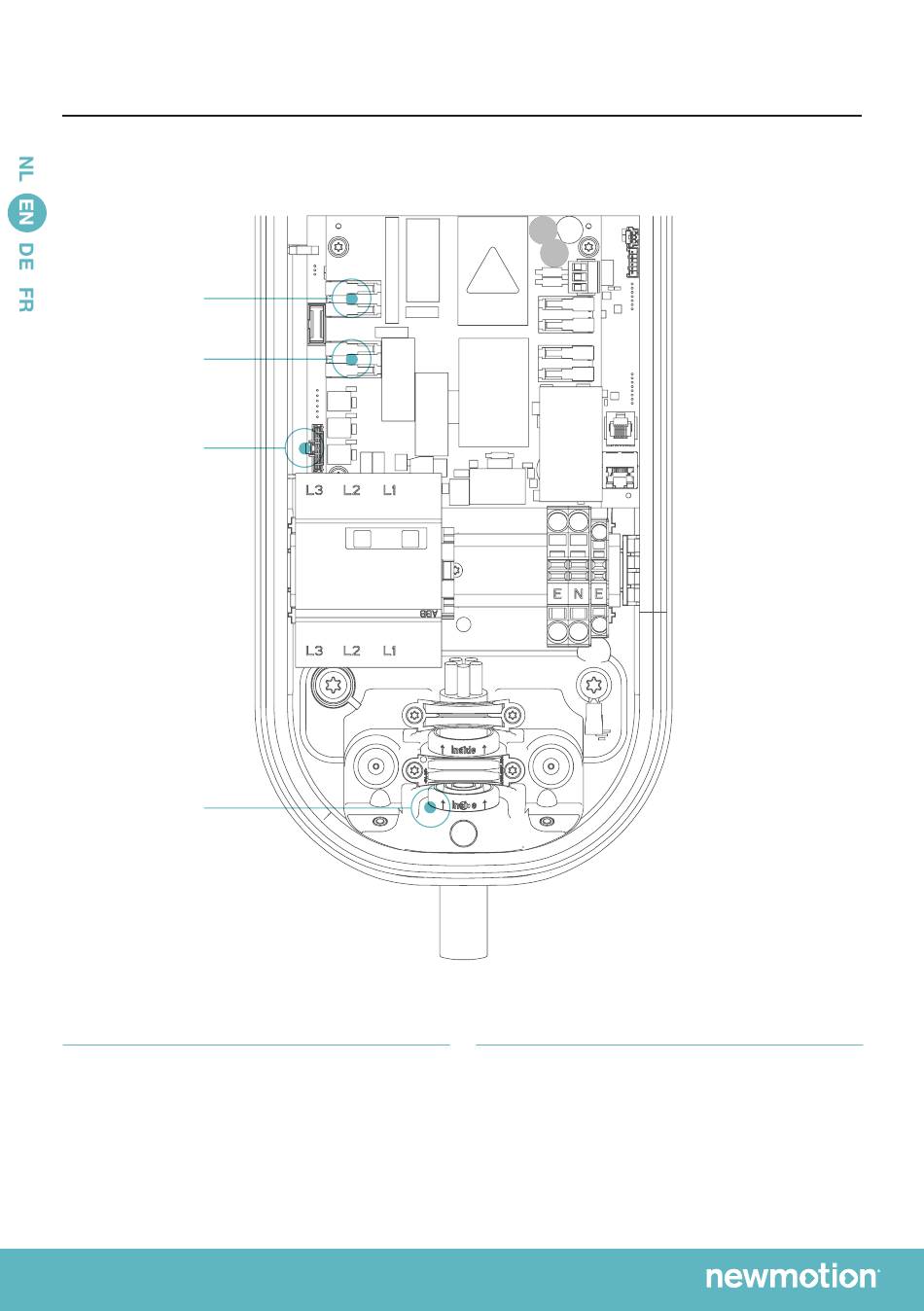

OVERVIEW FIXED CABLE*
Power connection
for attached
charger cable
version
Connection for
communication
with car
Inlet for attached
charger cable
The above diagram shows a 3-phase charge point.
In the 1-phase charge point, the phase wire is also
connected to the kWh meter, the Neutral- and Earth wire
connection can be attached to the terminal blocks.
* Optional
INSTALLATION INSTRUCTION – ENGLISH – P12
Placement fixed cable
When installation is complete, place the plug of the cable
in the designated holder on the charge point.
