OVERVIEW OF CONNECTIONS

Earth wire
connection
Phase wire
connection
Power cable
Inlet for
power cable

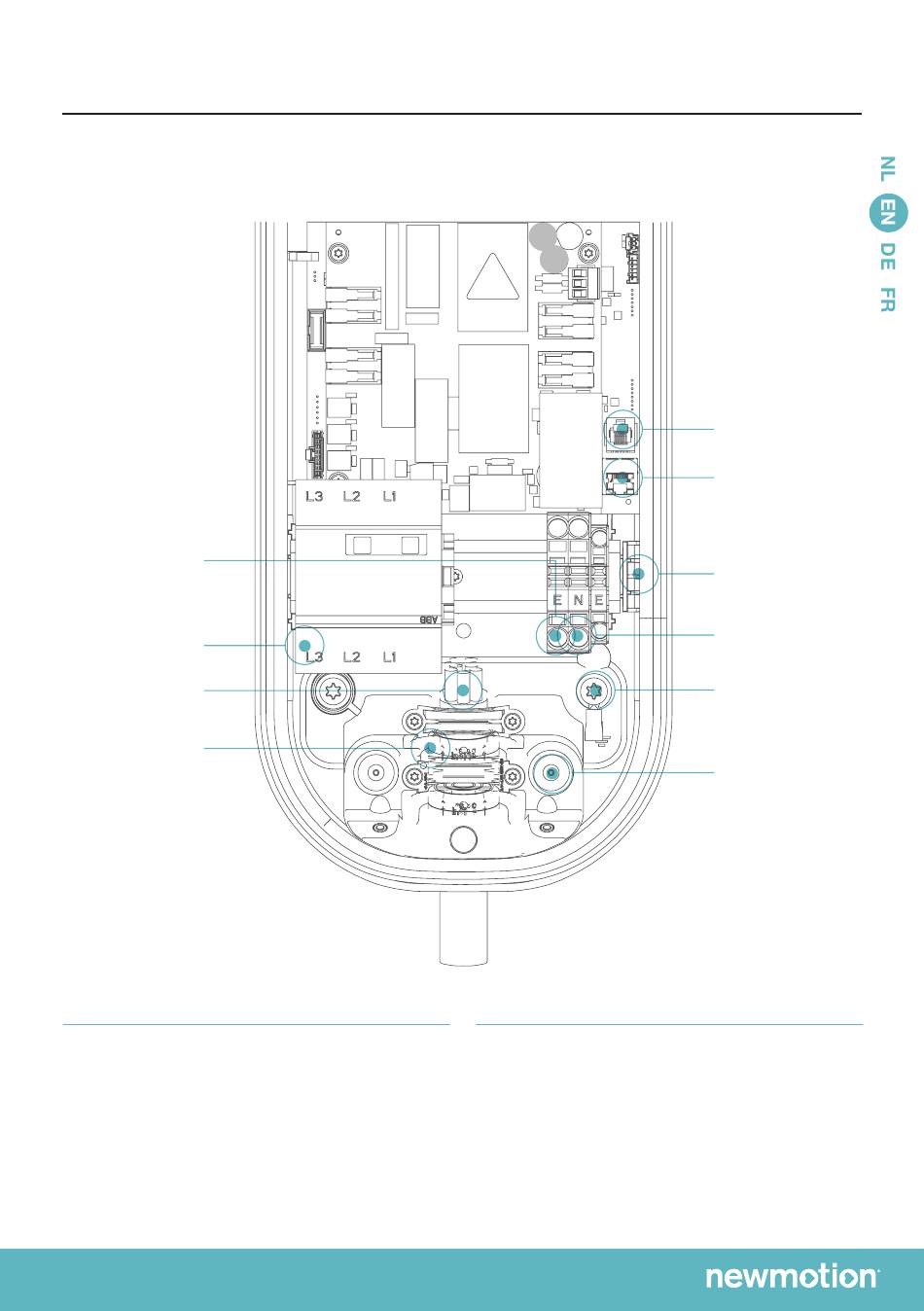

The above diagram shows a 3-phase charge point.
In the 1-phase charge point, the phase wire is also
connected to the kWh meter, the Neutral- and Earth wire
connection can be attached to the terminal blocks.
INSTALLATION INSTRUCTION – ENGLISH – P11
Note when combining with smart meter (DSMR4.0*):
If the smart meter has not yet been installed, ensure
the length of the UTP cable to the meter cupboard is
sufficient. Clearly indicate that this cable must still be con-
nected to the smart meter. Combine a charge point with a
smart meter only after consulting NewMotion.
* Only available in the Netherlands
P1 port
Ethernet port
Tension relief
(data cables)
Neutral wire
connection
Earthing pole
Inlet for
data cable
