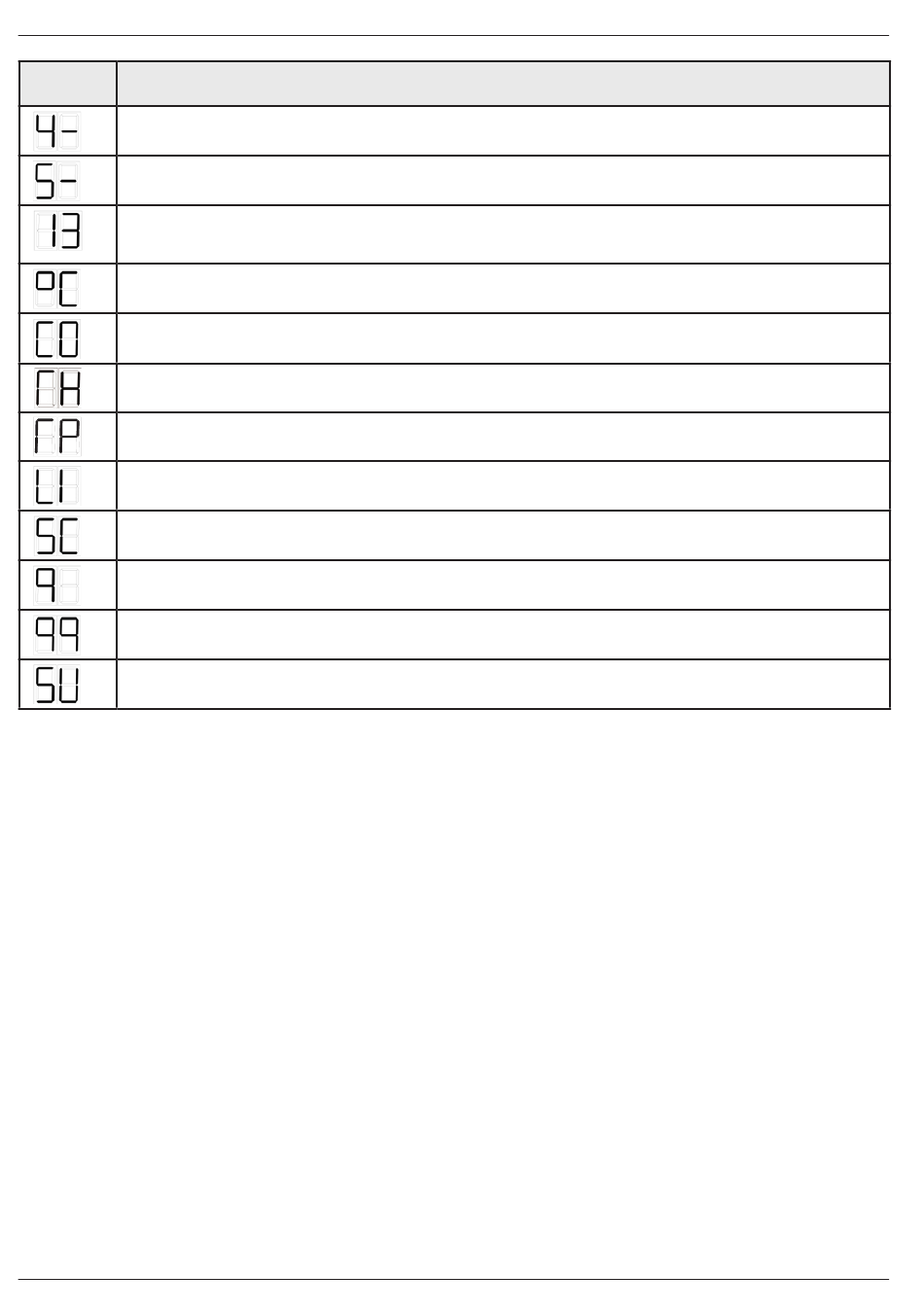

Display
Comments
readout
Actual OJ GreenZone™ Module M is integrated in zone section 4 (ZoneMaster4)
Actual OJ GreenZone™ Module M is integrated in zone section 5 (ZoneMaster5)
Shows the actual number (address) of the OJ GreenZone™ Master (interval: 1-25)
Temperature sensor connected correctly (inlet, exhaust or room sensor)
CO2 sensor connected correctly (exhaust or room sensor)
Humidity sensor (HTH-6202) connected correctly (exhaust sensor)
Room control panel OJ-RPT-20T correctly connected
Two temperature sensors connected
Sensor short-circuited
Zone section number not yet allocated by OJ GreenZone™ Master
Zone number (address) not yet allocated by OJ GreenZone™ Master
Software update in progress
Connector "H" – Modbus sensor (°C, %rh or VOC) (see figs 3 and 18)
OJ GreenZone™ Module M is equipped with a Modbus input for connecting Modbus
sensors (figs 3 and 18).
It is possible to connect a sensor of the following type from OJ Electronics:
• VTH-6202 (VOC sensor)
• HTH-6202 (combined temperature and humidity sensor)
• TTH-6202 duct temperature sensor
• TTH-6040-W room temperature sensor
• OJ-RPT-20T room control panel with built-in temperature sensor.
In larger rooms where you want to measure the temperature in several places, the
maximum number that can be mounted is 1 x OJ-RPT-20T, 1 x TTH-6040-W with the
dial in position 1, and 1 x TTH-6040-W with the dial in position 2. The Zone Module
calculates and uses the average temperature automatically from these sensors. The
terminal layout of the RJ12 connector is shown in fig. 6.
Connector "J" – "Modbus in" entry port (see figs 3 and 5)
OJ GreenZone™ Module M is equipped with a "Modbus in" (see figs 3 and 5) and a
