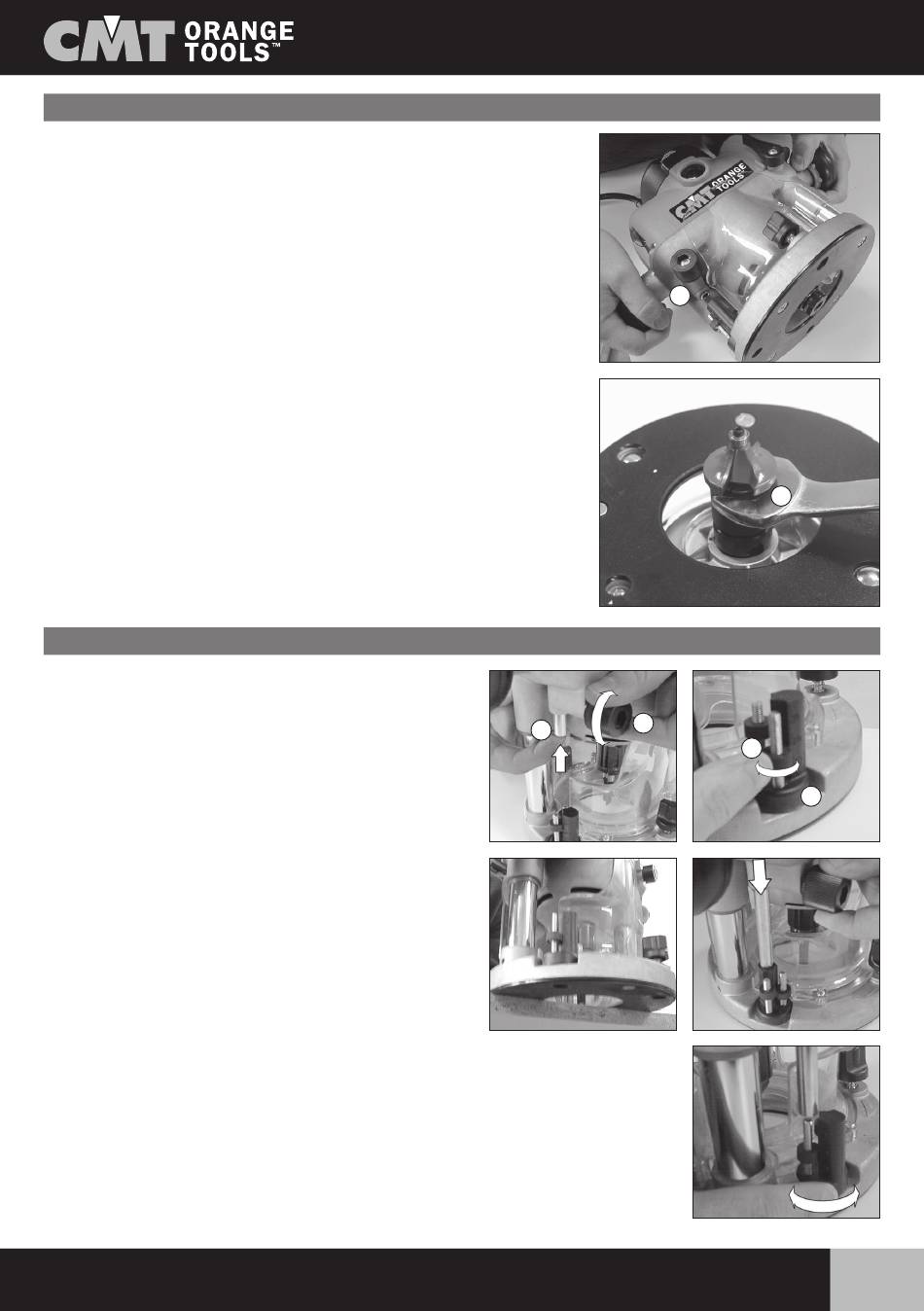

MISE EN PLACE ET REMPLACEMENT DES FRAISES
1. Turn the power switch (b) "off", allowing the switch shutter (a)
to close (Fig. 1). (The shutter will lock closed when the collet
lock is engaged.)
2. Wait until the cutter has completely stopped spinning then
plunge the router to its maximum depth using the free plunge
or winder handle plunge mode. Fig. 11 . Note: ensure the
depth stop (k) is released (see Fig. 13 below). The collet should
now protrude through the base (and the CMT Router Table if
fitted), allowing easy spanner access.
3. Use the spanner (j) supplied to turn the collet slightly, allowing
the collet lock to engage. Once engaged, turn the spanner anti-
clockwise to release, or clockwise to tighten the cutter. Fig. 12.
Note: When fitting cutters, ensure the shank is inserted fully into
the collet.
4. Return the router to a normal operating depth. This will disen-
gage the collet lock and release the switch shutter, enabling
access to the power switch.
BUTÉE DE PROFONDEUR ET TOURELLE
Cut depth can be accurately preset using the Depth
Stop (k) and Turret (l) in the free plunge mode.
1. Loosen the Depth Stop Lock (m) and retract the
depth stop fully, then re-tighten. Fig. 13.
2. Set the Turret Thumbwheel(s) (n) to the desired
plunge depth(s) using the scales on the turret
post. Fig. 14.
3. Fit the cutter, and adjust the plunge depth until
the cutter tip is level with your "zero datum" (eg.
router base or Router Table surface). Fig. 15.
4. Rotate the turret until the fixed turret post is in line
with the depth stop. Release the stop, allowing it
to spring onto the post, then re-tighten. Fig. 16.
5. Rotate the turret again until the bolt of the
required thumbwheel is in line with the stop. Fig.
17. Plunge until the hollow depth stop locates over the bolt and hits the
thumbwheel. Engage the plunge lock lever (g).
Note: the plunge depth must be reduced before the turret can be rotated to
another stop position.
