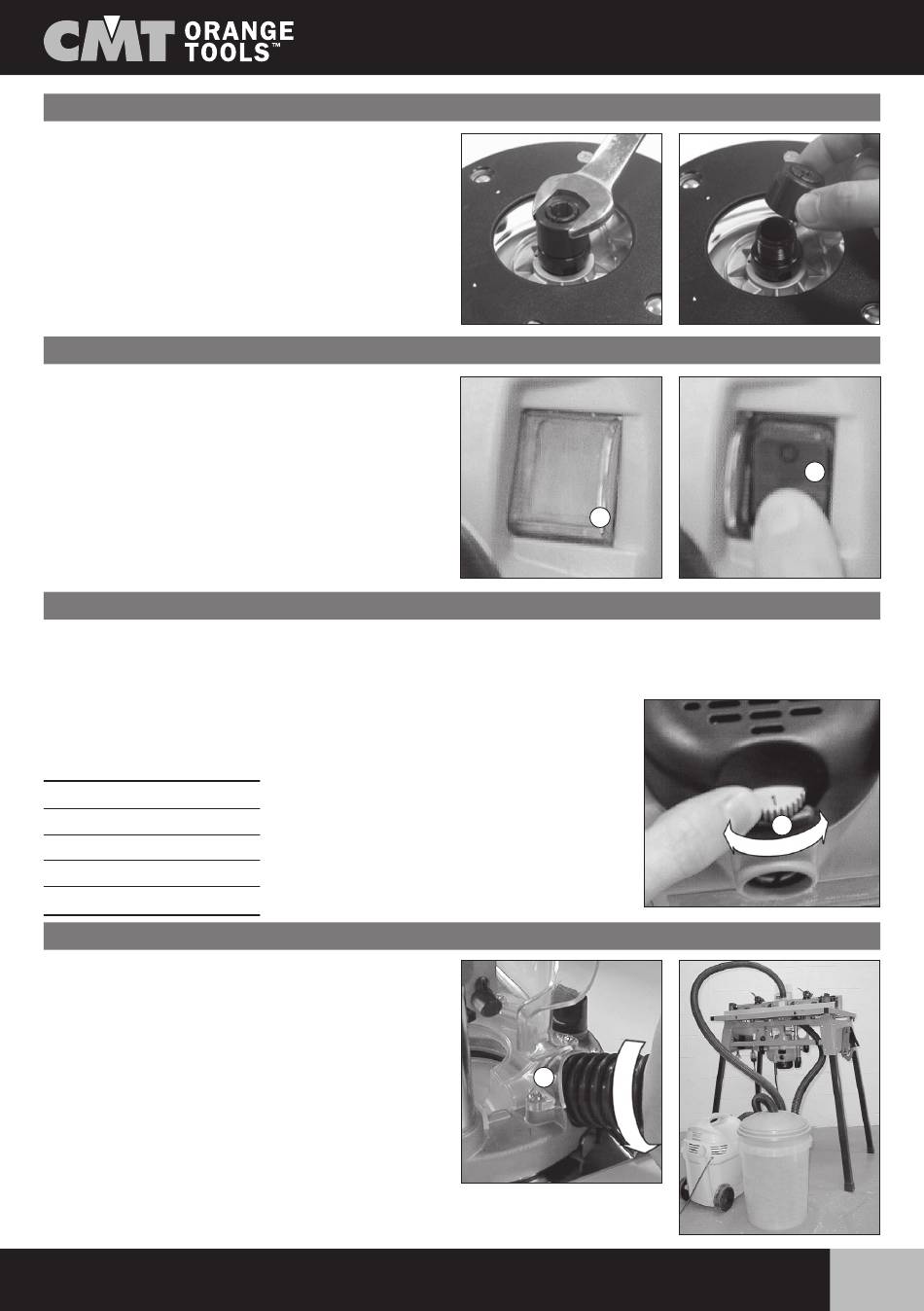

REDUCING COLLET
A second collet is supplied for the use of small
shanked (eg. 1⁄ 4 ") cutters.
With the router in the collet lock position use
the wrench to unscrew the standard collet, anti-
clockwise, and remove it from the router. Tighten
the reduced collet in its place.

POWER SWITCH

When the router is connected to power the switch
(b) will illuminate (in both "on" and "off" positions).
The clear switch shutter (a) prevents accidental
starting of the router Fig. 1. It must be retracted
before the router can be switched on. The cover will
remain open until the router is switched off. Fig. 2.

VARIABLE SPEED CONTROL

The router speed should be adjusted according to cutter size. The highest setting is suitable for regular
sized cutters, whereas large cutters require a lower setting. Speed should also be reduced if burn marks
appear on the workpiece.
The Speed Control (c) is marked 1 to 5, corresponding approximately
with the speeds shown below.
Setting rpm
1 8,000
2 10,000
3 14,000
4 18,000
5 20,000

DUST EXTRACTION

The CMT Router is equipped with a Dust Port (d)
for effective chip extraction. It accepts 38mm
(1-1/2") O.D. hose. The hose screws into position
via a left hand thread (anti-clockwise). Fig. 4
