TABLE-MOUNTED OPERATION
• Fitting and operating this router on a CMT Router Table should be done in accordance to the literature
supplied with your Router Table.
While the CMT Router was designed for efficient and convenient operation on most router tables, it is
particularly suited to CMT brand tables.
Router adjustments are made extremely easy using the unique features described earlier in the manual.
Refer to "Fitting & Changing Cutters" and "Cut Depth Adjustment".

INSTALLING THE PLUNGE SPRING

The plunge spring is supplied as an accessory in the router pack. The plunge spring is designed to be
used when utilising the plunge router feature.
1. Set the router to the top of the plunge range and engage the plunge lock lever.
2. Loosen the small screw (anti-clockwise) next to the plunge spring cap (t) in a few
turns. Twist the cap slightly anti-clockwise to remove it.
3. Slide the spring through the spigot on the Plunge Spring Cap and place into the entry point for the
spring.
4. Apply sufficient force and hold firmly the plunge spring cap to push the spring down and lock the
plunge spring cap under the screw.
5. Re-tighten the screw in a clockwise direction when in position.

REMOVING THE PLUNGE SPRING

1. Set the router to the top of its plunge range and
engage the plunge lock lever.
2. Loosen the small screw next to the Plunge Spring Cap
(t) a few turns. Twist the cap slightly anti-clockwise
to remove it. Fig. 27. Note: hold the cap firmly while
releasing tension from the spring.
3. Remove the spring and store in a safe place.
4. Replace the plunge spring cap and re-tighten the
screw.
WARNING: Only remove the plunge spring when fitted
beneath a router table. Ensure it is always fitted for
hand-held use.
12

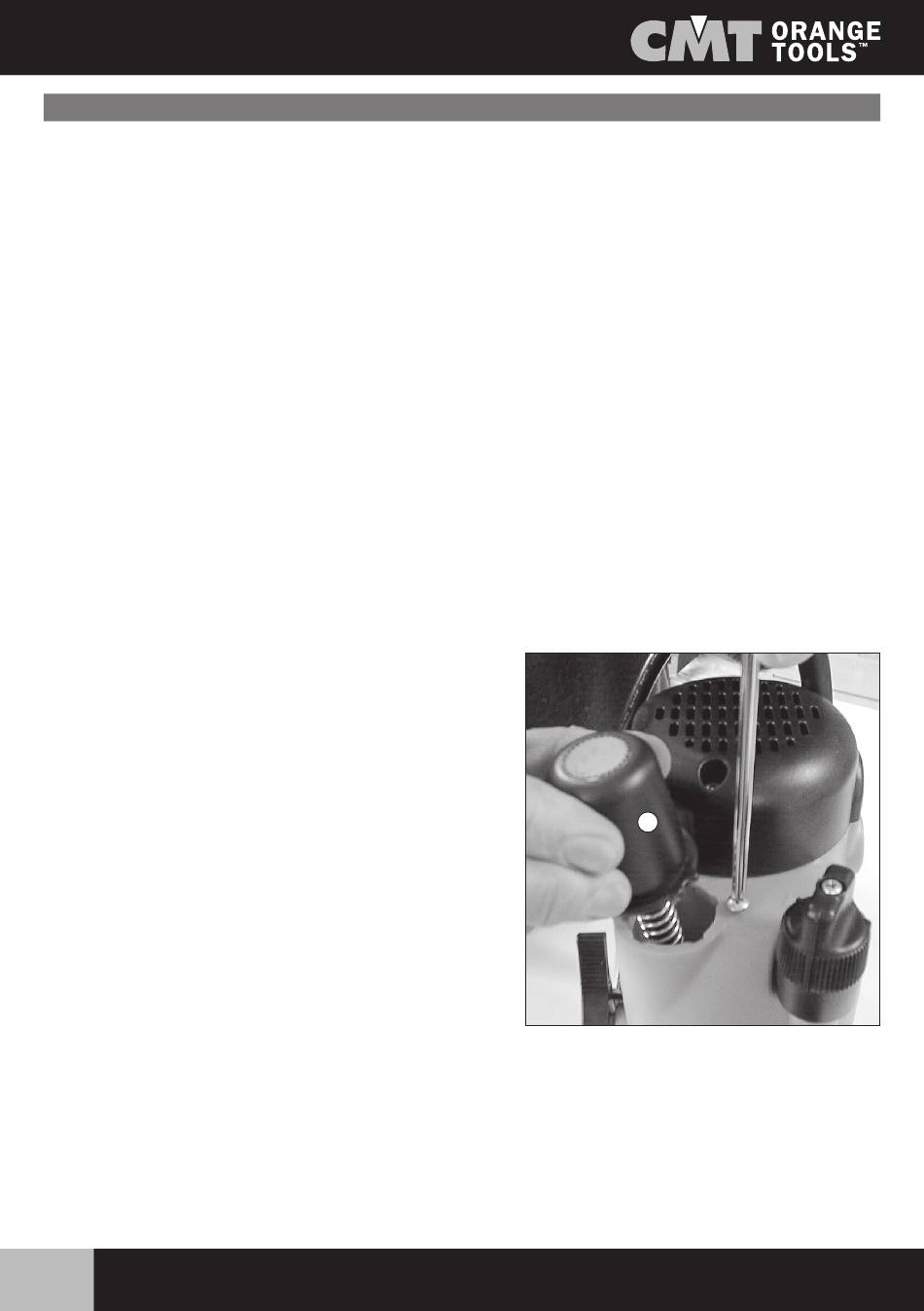

Fig. 27
t
