Paramondo CURVE Montageanleitung Seite 44

44
Anschluss und Inbetriebnahme • Connection and start-up • Aansluiting en inbedrijfstelling • Conexión y puesta en servicio • Connexion et
mise en service • Collegamento e messa in funzione • Podłączenie i uruchomienie • Elektrik bağlantısının yapılması ve işletime alınması
1. Setting of the end points in opening direction:
1.1 Open the awning ca. three-quarter and following rotate ca. 20
times the adjusting screw for the correspondent end point in the
minus direction.
1.2 Open the awning slightly further and stop it with your transmitter,
if the motor has not stopped shortly before reaching the end point.
1.3 Should the awning already stop before reaching the desired end
point, press the button for the opening direction and rotate the cor-
respondent adjusting screw slightly further in the plus direction until
the motor has reached the desired end point.
Continuation if the motor has not yet stopped:
1.4 Retract the awning slightly again, so that the awning is opened ca.
three-quarter. Rotate the adjusting screw 20 times more in the minus
direction and check if the motor has stopped shortly before reaching
the desired end point.
1.5 If the end point has not yet been reached, repeat this step until
the motor autonomously stops and go on with the point 1.3.
Attention: the end point in opening direction must be
set so that the arms are still bent and stay under enough
tension.
2. Setting of the end points in retracting direction:
2.1 Retract the awning and stop it ca. 50 cm before reaching the desi-
red end point with the transmitter and following rotate the adjusting
screw for the correspondent end point ca. 20 times in the minus
direction.
2.2 Retract the awning slightly further and stop it with your transmit-
ter, if the motor has not yet stopped autonomously shortly before
reaching the desired end point.
2.3 Should the awning already stop before reaching the desired end
point, press the button for the retracting direction and rotate the
correspondent adjusting screw in the plus direction until the motor
has reached the desired end point.
Continuation if the motor has not yet stopped:
2.4 Open the awning slightly, so that the awning is ca. 50 cm opened.
Rotate the adjusting screw 20 times more in the minus direction and
check if the motor has stopped autonomously shortly before reaching
the desired end point.
2.5 If the end point has not yet been reached, repeat this step until
the motor stops and go on with the point 2.3.
www.paramondo.de

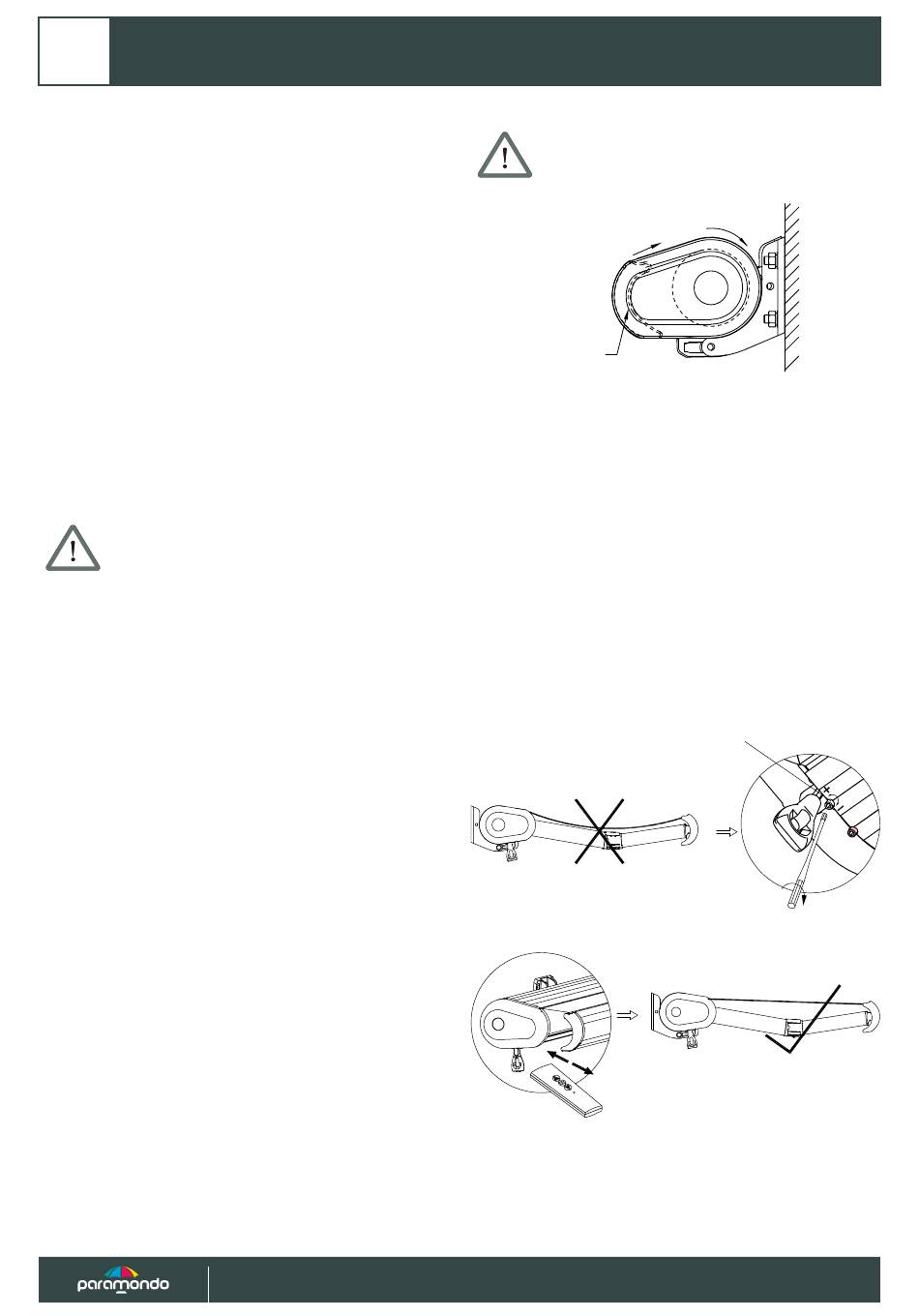

Attention: make sure that the end point in retracting
direction is set so that the awnings are not pulled too
strongly to the suspension tube. This aims to prevent
damage to the awning system.
Front profile
3. Run the awning to check both the end points. If the awning stops at
the set end points, the limit switch setting is completed.
4. Please note that the motor is provided with a thermal protection
switch and that it may be that the motor stops, because after a few
movements it has reached a high temperature. After ca. 15-20 minu-
tes cooling time the motor is ready for operation again.
5. Changing the end points:
Retract the awning in the middle position and start from the begin-
ning again.
6. Adjust the awning cloth tension:
When extending your awning, note that the awning cloth is tight. You
can change the tension of the awning as shown in the figure below.
Then retract and extend the awning completely once more and check
the tension of the awning cloth again.
Adjusting screw
for the awning
cloth tension
