Paramondo CURVE Montageanleitung Seite 43

Anschluss und Inbetriebnahme • Connection and start-up • Aansluiting en inbedrijfstelling • Conexión y puesta en servicio • Connexion et
mise en service • Collegamento e messa in funzione • Podłączenie i uruchomienie • Elektrik bağlantısının yapılması ve işletime alınması
EN
M
Grid
230 V / 50 Hz

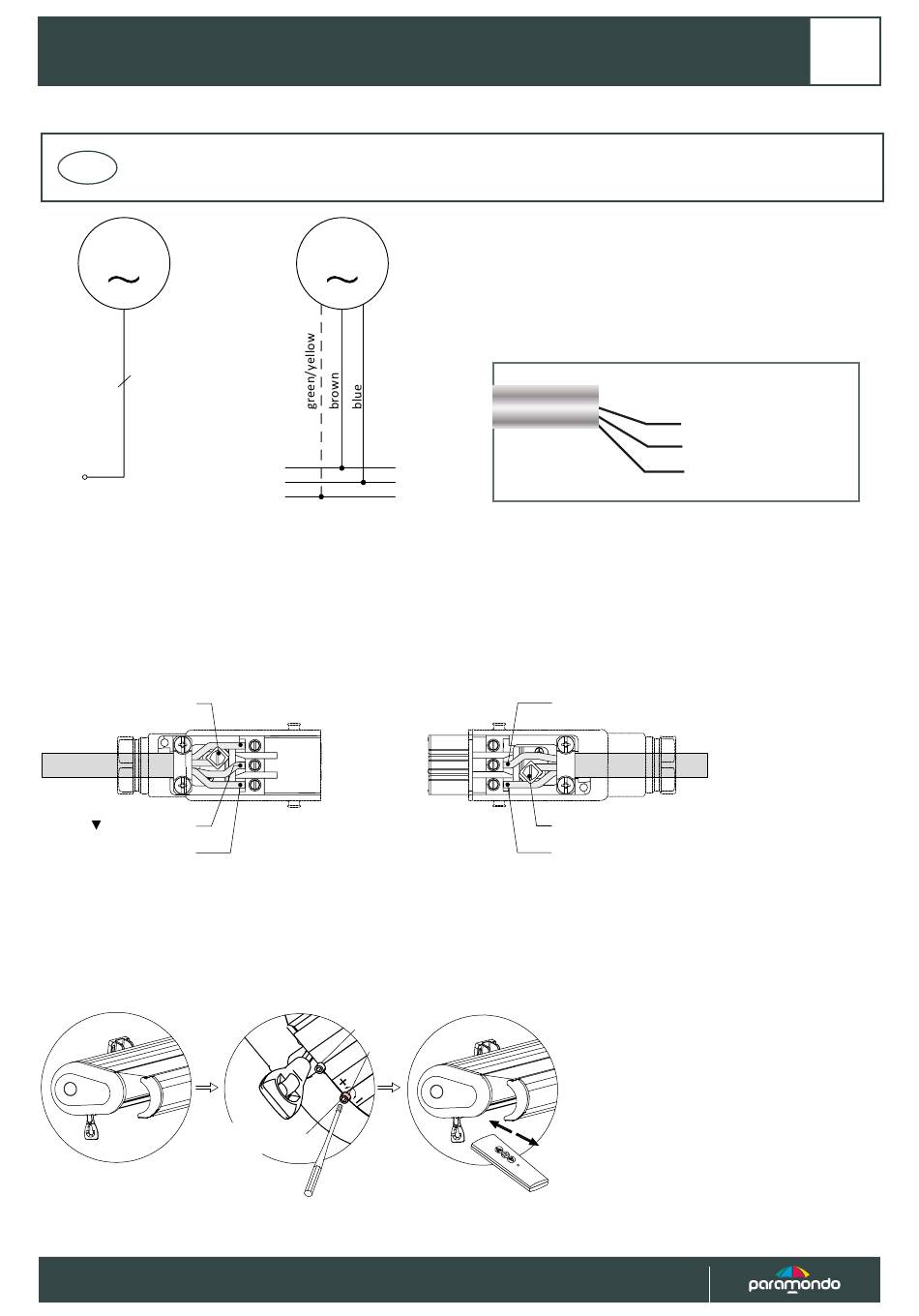

Connect the motor according to the connection instructions. To prevent that water penetrates the motor, the connection cable should be
always laid downwards with a loop.
TIP: For the connection of the power grid to the awning motor we advise to use the Hirschmann plug set. You can find it in our shop under
the article number 10050625.
Connection side motor
PE = (green/yellow)
2 = (black/brown)
1 = N (blue)
After the connection the motor vibrates briefly and enters automatically for 10 seconds in learning mode. Since the enclosed radio remote
control is already programmed, it can control the awning immediately. Should this not be the case, you can program the remote control
according to the instructions!
The end points are equally already set to suit the awning. Should you have to modify them, proceed as follows:
Adjusting screw for the end
M
L1
N
PE
3
2
1
white
red
point adjustment
Connection side grid
2 = L1 (brown)
3
2
1
PE = (green/yellow)
1 = N (blue)
www.paramondo.de
43
L1 = Phase (brown)
N = Neutral (blue)
PE = Ground (green/yellow)
