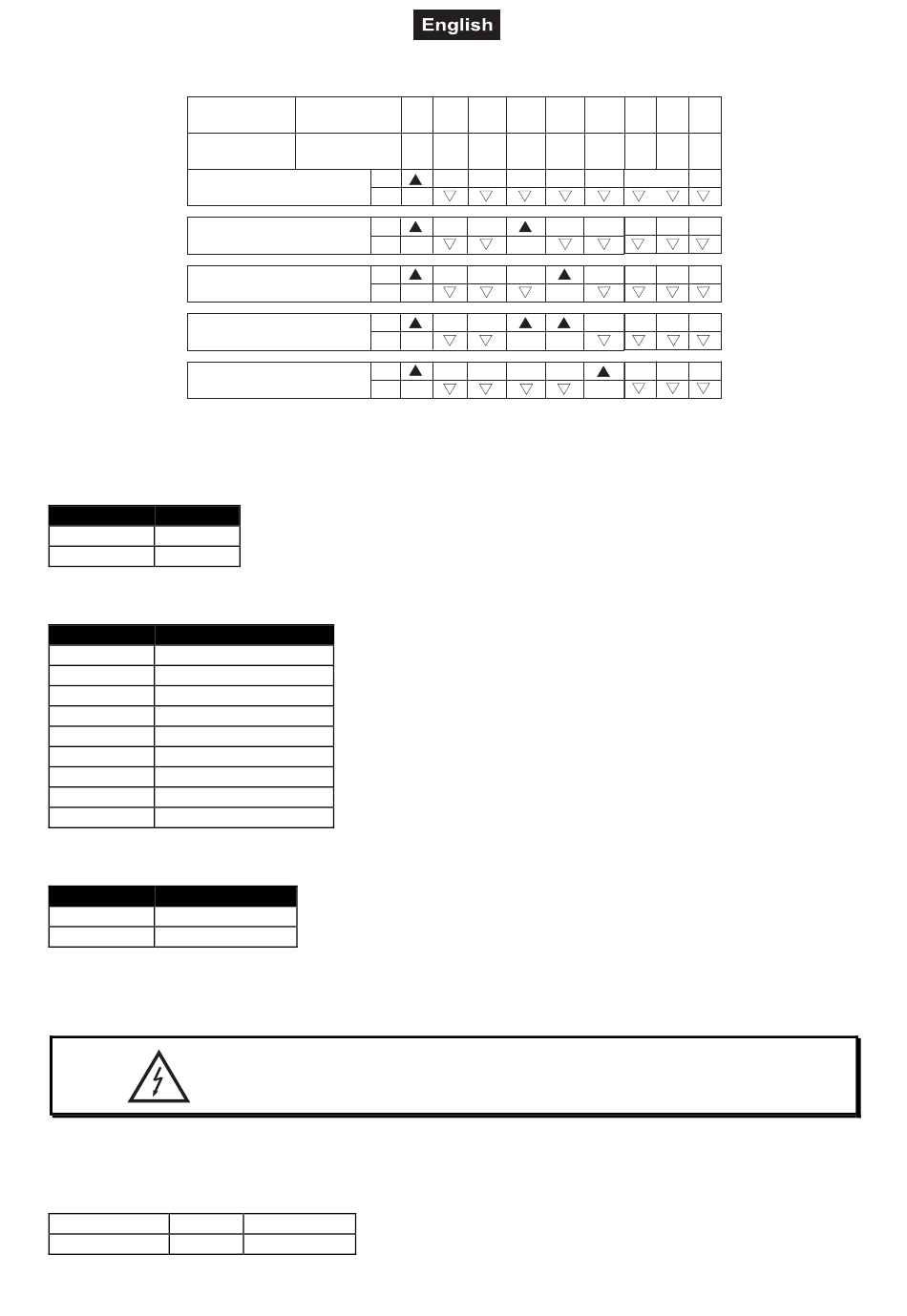

Occupation of the DIP-switches:
Setting the DMX-
starting address:
Projector number
& channels
Device 1 - channels 1-8
Device 2 - channels 9-16
Device 3 - channels 17-24
Device 4 - channels 25-32
Device 5 - channels 33-40

DMX-protocol

Control channel 1 - Switching the lamp
DMX-value Feature
0-24 Lamp off
25-255 Lamp on
Control channels 2-7 – Colour-wheel
DMX-value Feature
0-27 Open / white
28-55 Correction-filter cold
56-83 Yellow
84-111 Red
112-139 Pink
140-167 Correction-filter warm
168-195 Light blue
196-223 Dark blau
224-255 Green
Control channel 8 – Colour-speed
DMX-value Feature
0 Minimum speed
255 Maximum speed

Connection with the mains

The electric connection must only be carried out by a qualified electrician!
In order to connect the device to the mains, you have to install a power supply cable and a power-plug.
The occupation of the connection-cables is as follows:
Cable Pin
Brown Live
1
DIP-switch no.
DMX-starting
1
address
On
Off Off
On
Off
On
Off
On
Off
On
Off
DANGER TO LIFE!
International
L
3 5 6
2 4
16
2 4 8 32
14/15
7 8 9
64 128 256
