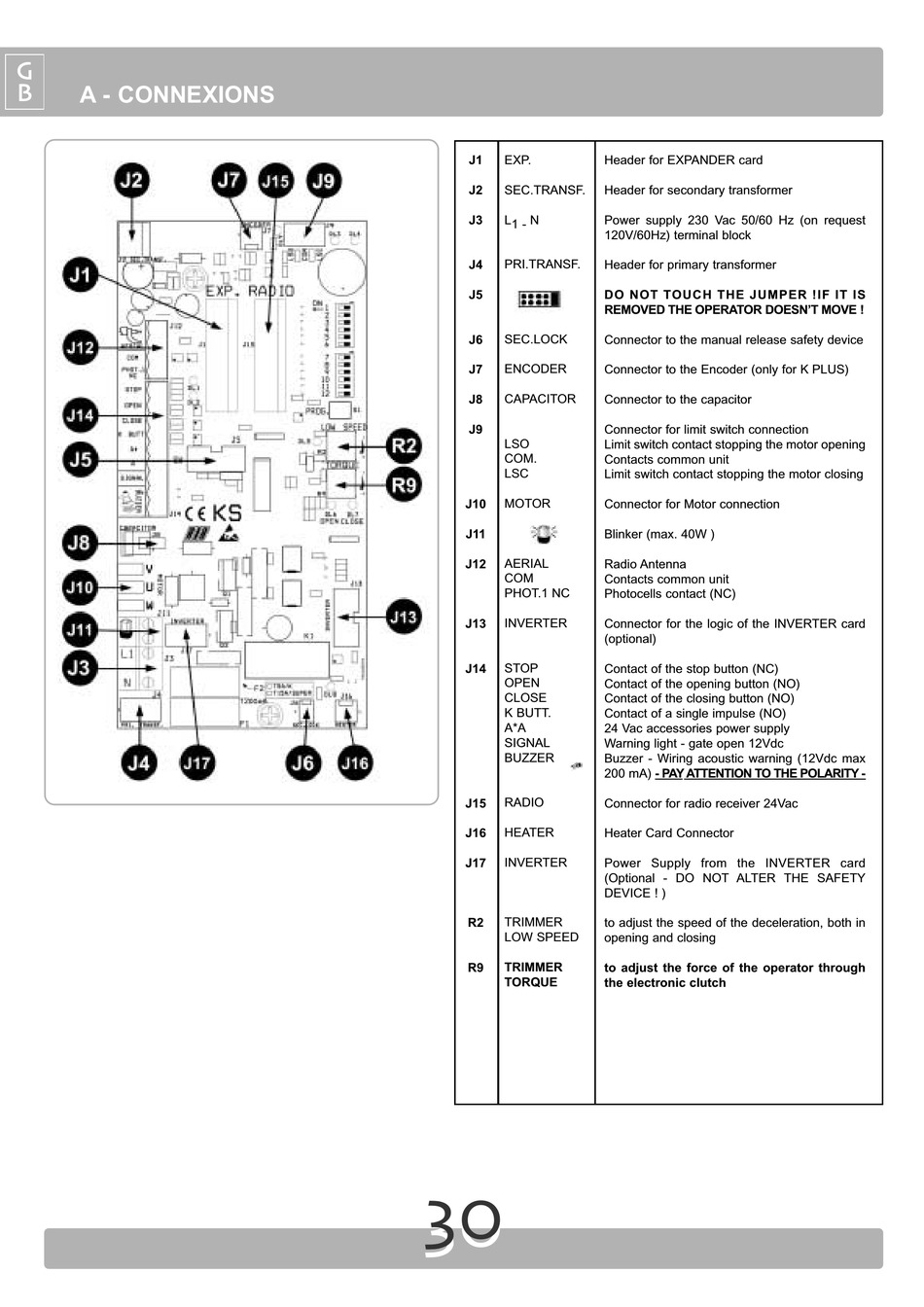

A - CONNEXIONS
J1
J2
J3
J4
J5 DO NOT TOUCH THE JUMPER !IF IT IS
REMOVED THE OPERATOR DOESN'T MOVE !
J6
J7
J8
J9
J10
J11
J12
J13
J14
J15
J16
J17
R2
TRIMMER
R9 to adjust the force of the operator through
TORQUE the electronic clutch
- PAY ATTENTION TO THE POLARITY -
