5.2

cONNEcTING ThE BATTERy

Important!!! Before connecting a battery pack, make one last check that all the set para-
meters are correct! The battery may be damaged, explode or catch fire if the settings are
incorrect. To avoid a short-circuit with the banana plugs, always connect the charging
leads to the battery charger first and then to the battery. Follow the reverse procedure
when disconnecting. Ensure correct polarity!

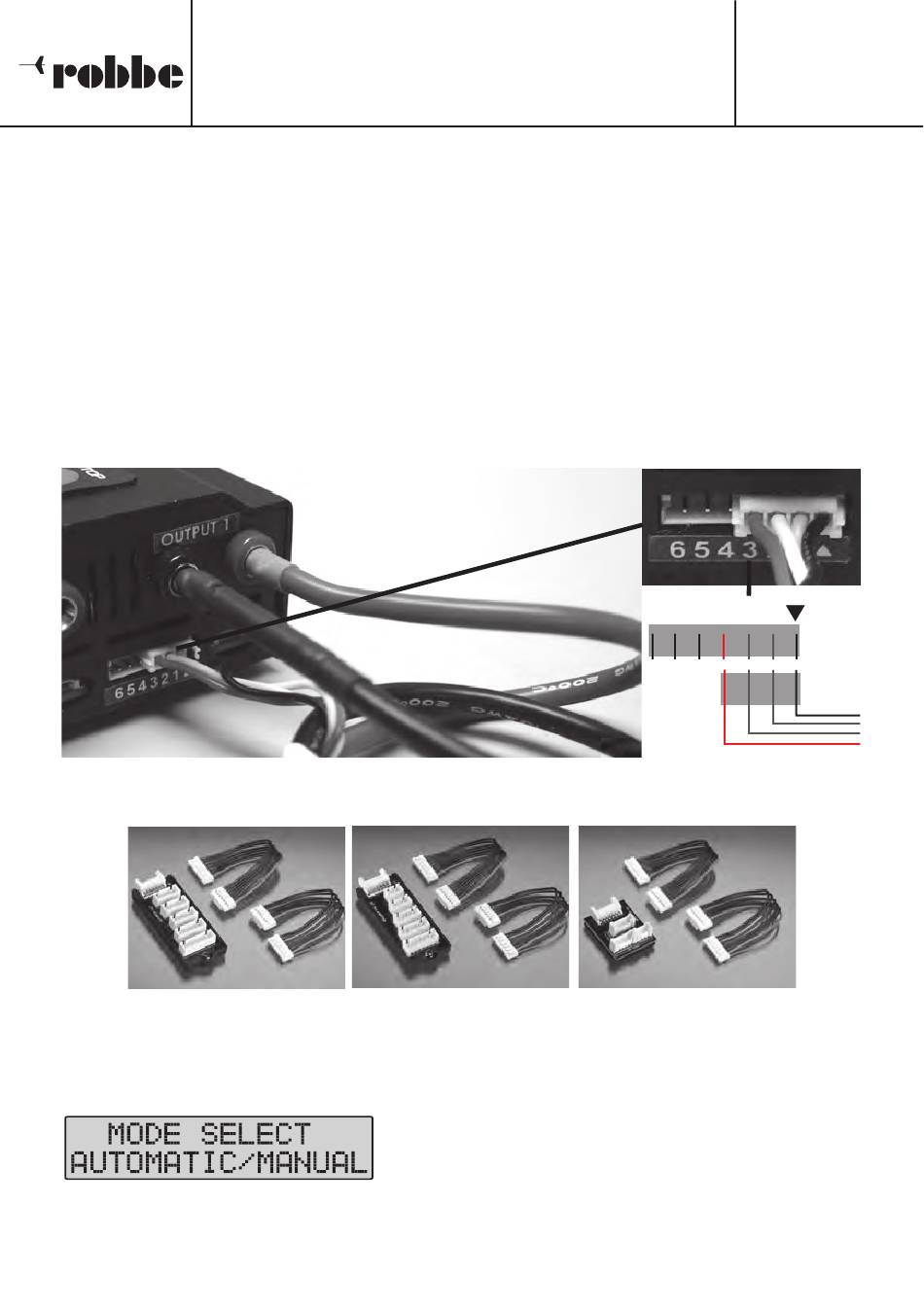

Equalizer connection:
The black wire of the voltage sensor lead from the battery must be connected to the
charger at the arrow marking. The arrow marking indicates the earth pole (negative).
Ensure correct polarity! See below!!
caution:
To avoid damage to the unit, never connect outputs together (e.g via a battery bak-
ker)!
This example only serves as a reference and is intended to demonstrate the connection
of the voltage sensor lead to the equalizer.
EQ-Adapter
robbe-PQ No.8213
6.

AUTOMATIc MODE

Operating Instructions
Power Peak ® Quad EQ-BID
EQ-Adapter
robbe-JSTXH No.8214
When the "AUTO" button is pressed from the start
display, the charger operates in automatic mode,
whereupon, all the parameters are set automatically.
robbe-TP/FP No.8215
9
Order No.
8565
VOLTAGE SENSOR
-
+
-
+ +S1
+S2
+S3
EQ-Adapter
