time of the measurement.
Row 2
In the second row, the GlassBuddy shows the
actual measured total thickness of the measured
object.
From the third row downwards the individual results
are displayed, followed by the graphical display
of the glass structure. The measuring results are
shown in a scrolling display.

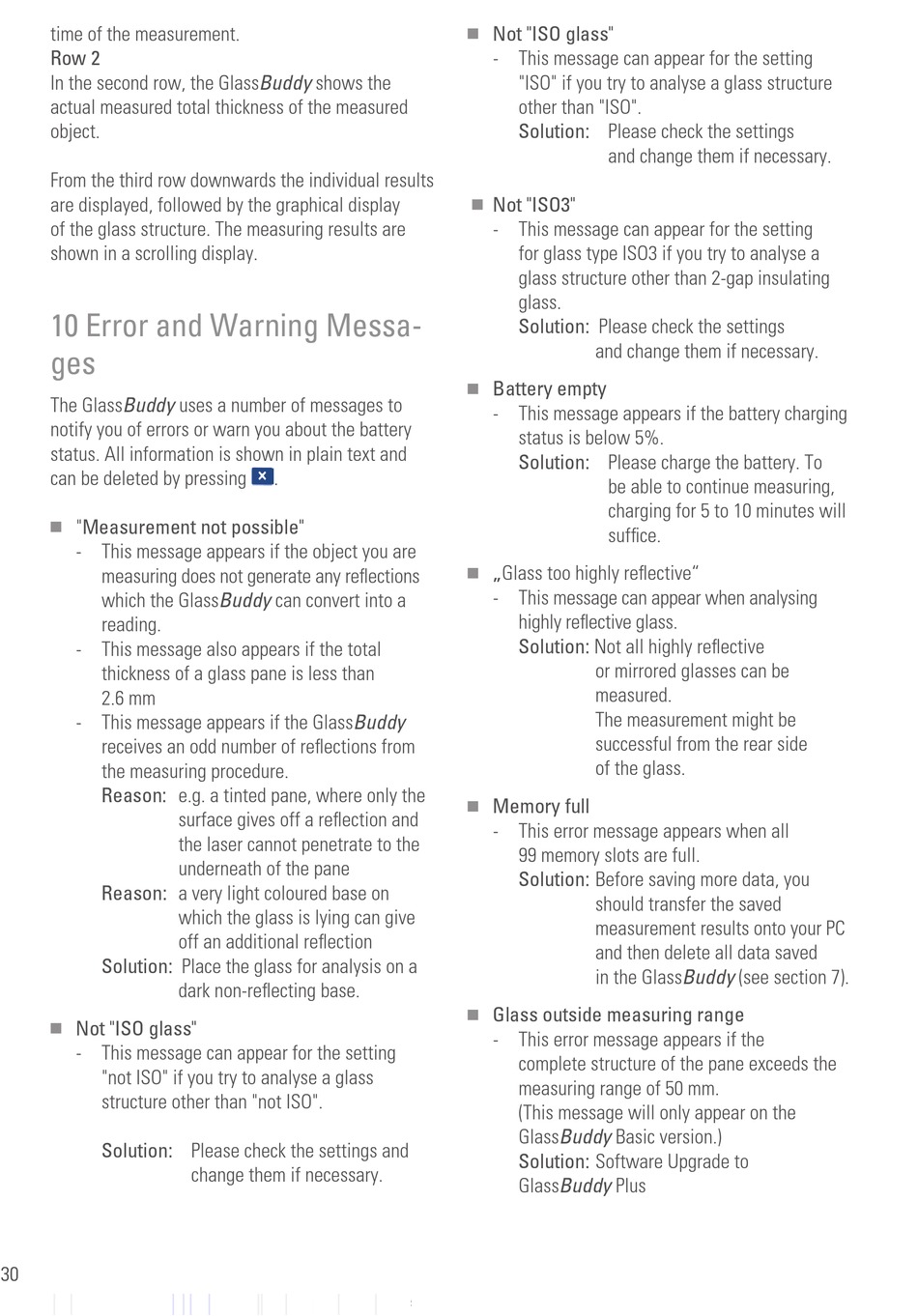

10 Error and Warning Messa-
ges
The GlassBuddy uses a number of messages to
notify you of errors or warn you about the battery
status. All information is shown in plain text and
can be deleted by pressing
"Measurement not possible"
n
- This message appears if the object you are
measuring does not generate any reflections
which the GlassBuddy can convert into a
reading.
- This message also appears if the total
thickness of a glass pane is less than
2.6 mm
- This message appears if the GlassBuddy
receives an odd number of reflections from
the measuring procedure.
Reason: e.g. a tinted pane, where only the
Reason: a very light coloured base on
Solution: Place the glass for analysis on a
Not "ISO glass"
n
- This message can appear for the setting
"not ISO" if you try to analyse a glass
structure other than "not ISO".
Solution: Please check the settings and
30 30
.
surface gives off a reflection and
the laser cannot penetrate to the
underneath of the pane
which the glass is lying can give
off an additional reflection
dark non-reflecting base.
change them if necessary.
Not "ISO glass"
n
- This message can appear for the setting
"ISO" if you try to analyse a glass structure
other than "ISO".
Solution: Please check the settings
and change them if necessary.
Not "ISO3"
n
- This message can appear for the setting
for glass type ISO3 if you try to analyse a
glass structure other than 2-gap insulating
glass.
Solution: Please check the settings
and change them if necessary.

Battery empty

n
- This message appears if the battery charging
status is below 5%.
Solution: Please charge the battery. To
be able to continue measuring,
charging for 5 to 10 minutes will
suffice.
„Glass too highly reflective"
n
- This message can appear when analysing
highly reflective glass.
Solution: Not all highly reflective
or mirrored glasses can be
measured.
The measurement might be
successful from the rear side
of the glass.

Memory full

n
- This error message appears when all
99 memory slots are full.
Solution: Before saving more data, you
should transfer the saved
measurement results onto your PC
and then delete all data saved
in the GlassBuddy (see section 7).
Glass outside measuring range
n
- This error message appears if the
complete structure of the pane exceeds the
measuring range of 50 mm.
(This message will only appear on the
GlassBuddy Basic version.)
Solution: Software Upgrade to
GlassBuddy Plus
