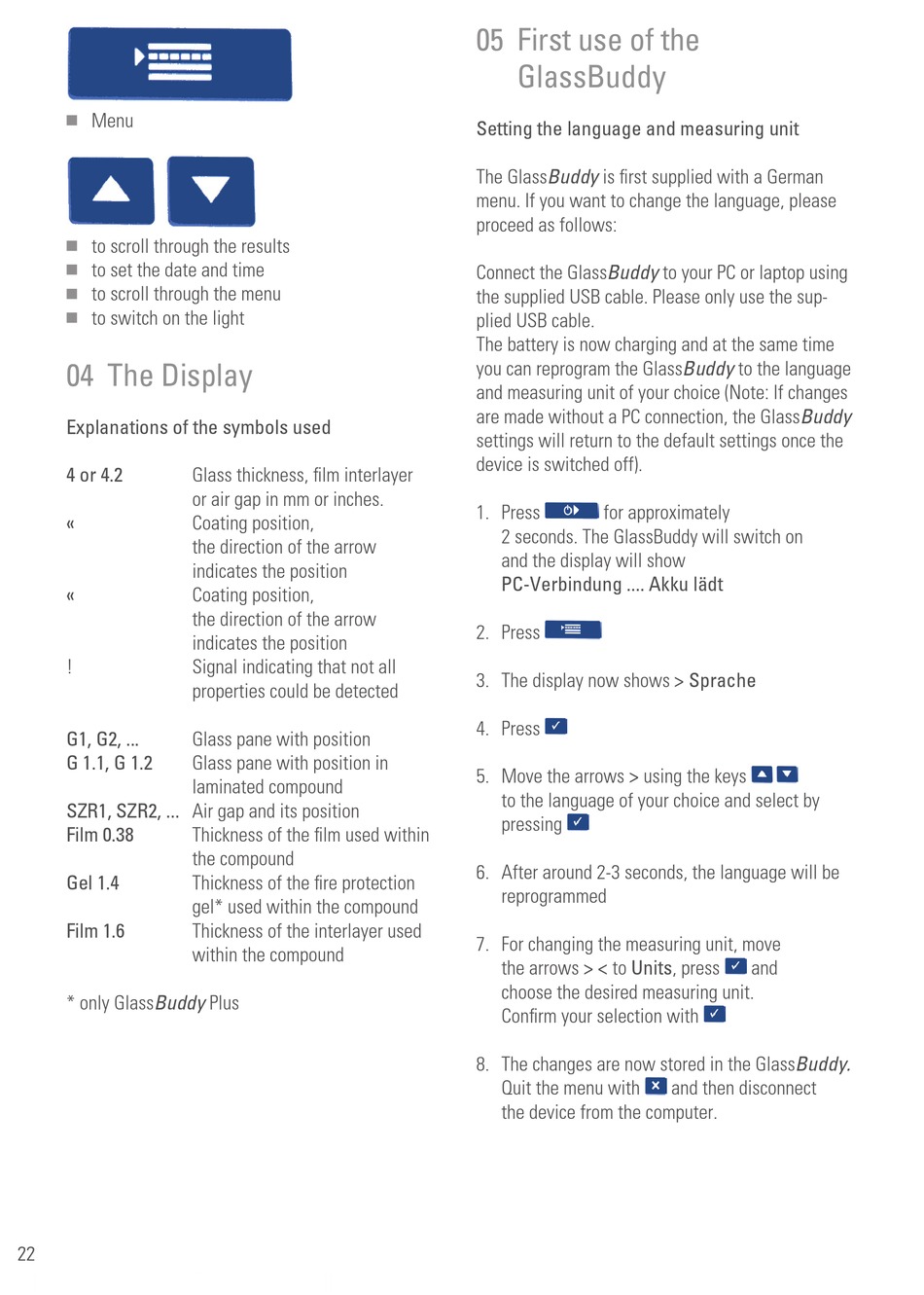

Bohle GlassBuddy Plus Bedienungsanleitung Seite 22

Menu
n
to scroll through the results
n
to set the date and time
n
to scroll through the menu
n
to switch on the light
n
04 The Display
Explanations of the symbols used
4 or 4.2
«
«
!
G1, G2, ...
G 1.1, G 1.2
SZR1, SZR2, ... Air gap and its position
Film 0.38
Gel 1.4
Film 1.6
* only GlassBuddy Plus
22 22
Glass thickness, film interlayer
or air gap in mm or inches.
Coating position,
the direction of the arrow
indicates the position
Coating position,
the direction of the arrow
indicates the position
Signal indicating that not all
properties could be detected
Glass pane with position
Glass pane with position in
laminated compound
Thickness of the film used within
the compound
Thickness of the fire protection
gel* used within the compound
Thickness of the interlayer used
within the compound
05 First use of the
GlassBuddy
Setting the language and measuring unit
The GlassBuddy is first supplied with a German
menu. If you want to change the language, please
proceed as follows:
Connect the GlassBuddy to your PC or laptop using
the supplied USB cable. Please only use the sup-
plied USB cable.
The battery is now charging and at the same time
you can reprogram the GlassBuddy to the language
and measuring unit of your choice (Note: If changes
are made without a PC connection, the GlassBuddy
settings will return to the default settings once the
device is switched off).
1. Press for approximately
2 seconds. The GlassBuddy will switch on
and the display will show
PC-Verbindung .... Akku lädt
2. Press
3. The display now shows > Sprache
4. Press
5. Move the arrows > using the keys
to the language of your choice and select by
pressing
6. After around 2-3 seconds, the language will be
reprogrammed
7. For changing the measuring unit, move
the arrows > < to Units, press
choose the desired measuring unit.
Confirm your selection with
8. The changes are now stored in the GlassBuddy.
Quit the menu with
the device from the computer.
and
and then disconnect
