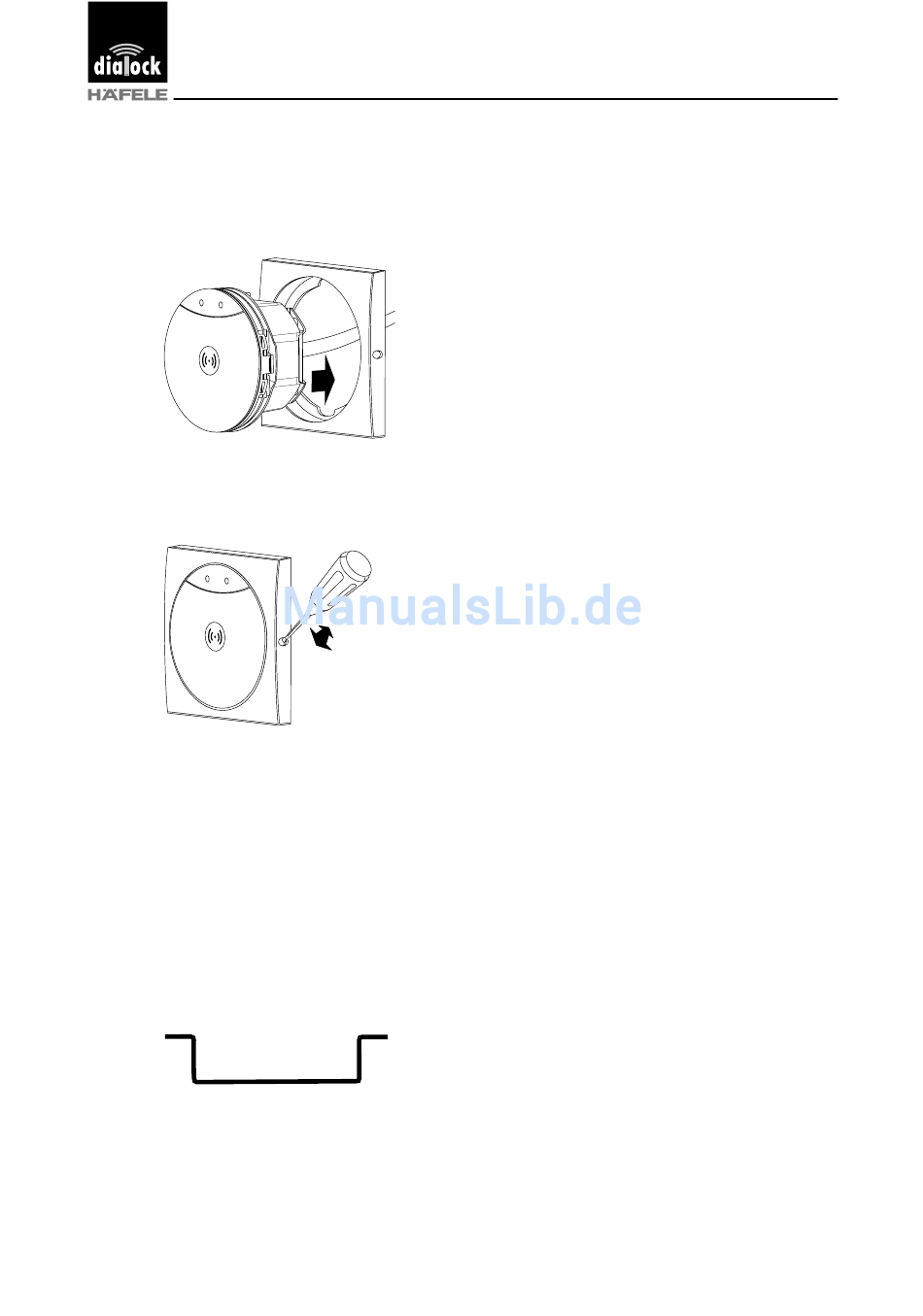

- Place the reader unit in the frame and allow to click into position
To dismantle, push a screwdriver into the slot and lever the unit out as
shown.

Mounting the control unit

The control unit may be damaged by use of unsuitable tools.
- The distance between the control and scanner unit may be up to
100 metres.
- Mount the control unit on a standard rail (top-hat rail) in accordance with
DIN EN 50022.
- Connect the wires as stated in table 2 page 21.
- If necessary, connect the recovery diode on the equipment being
switched (door opener).
Mounting and Brief Operating Instructions
english 23
