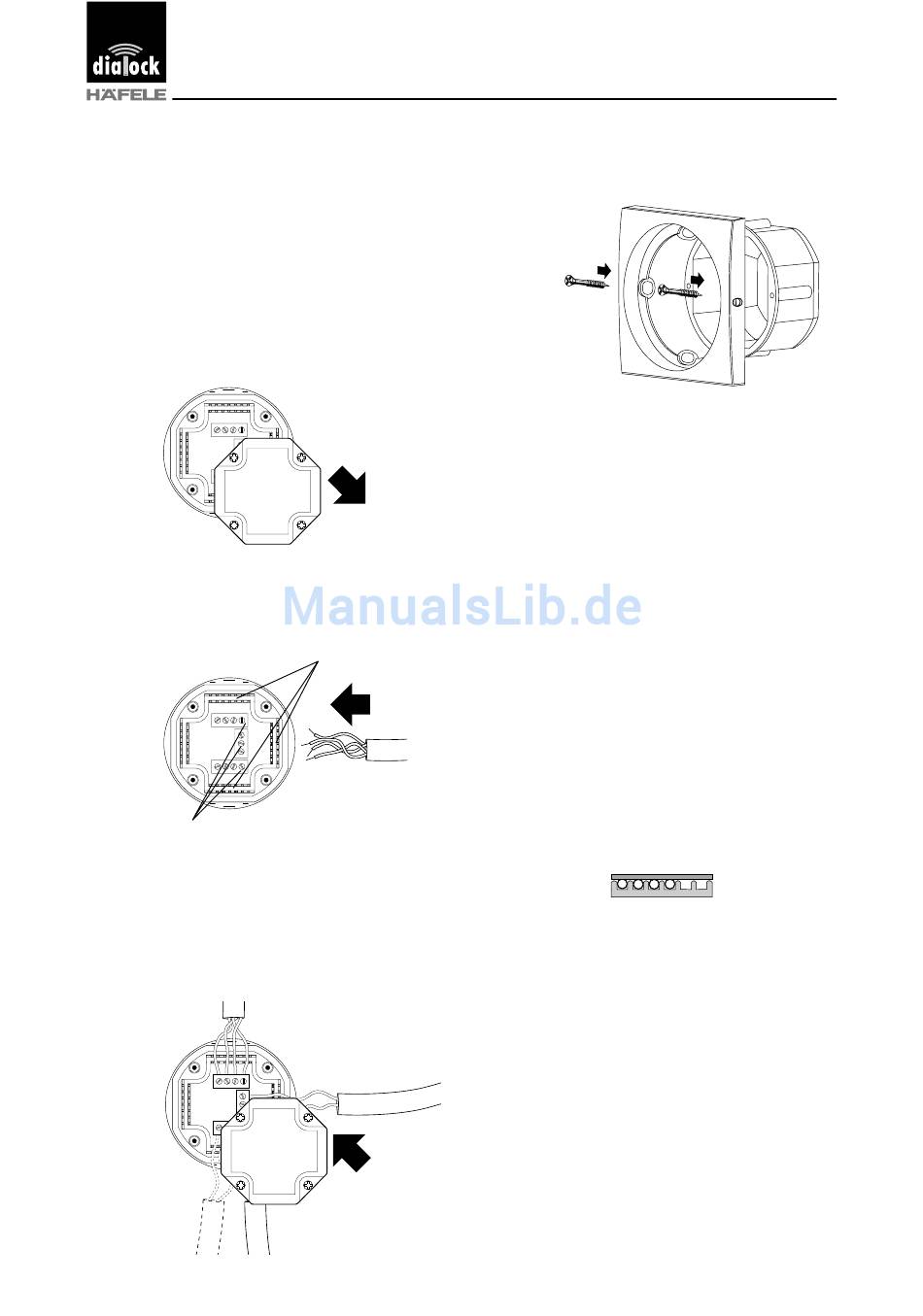

Mounting the reader unit
- Screw the frame of the reader unit to the
recessed socket
- Remove the rear cover
- Connect wires as shown in connection
plan in table 1 page 20
...fix with screws
- Push cable into cable comb
- Replace cover and screw into place
22
Mounting and Brief Operating Instructions
cables laterally introduce
