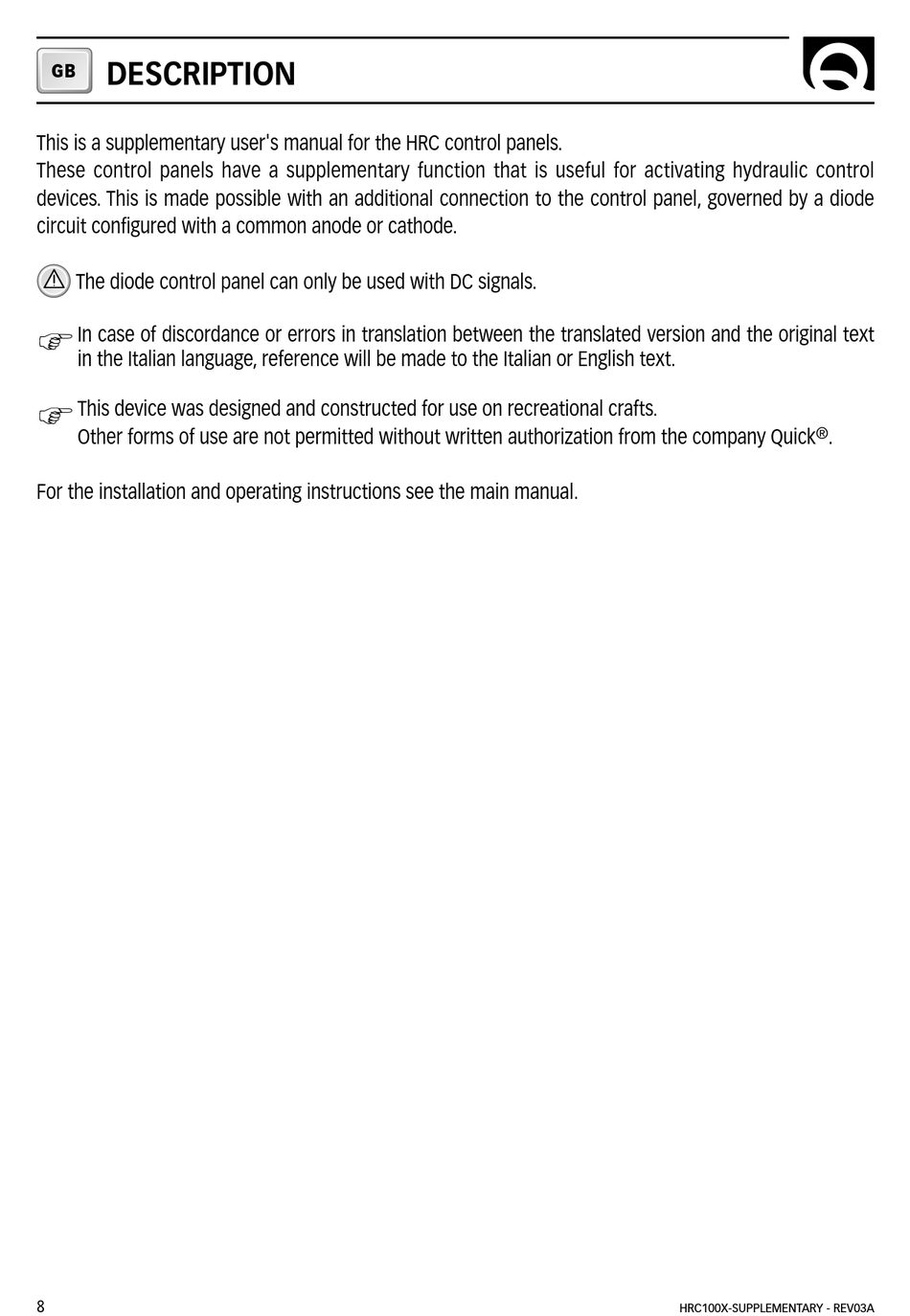

DESCRIPTION
GB
This is a supplementary user's manual for the HRC control panels.
These control panels have a supplementary function that is useful for activating hydraulic control
devices. This is made possible with an additional connection to the control panel, governed by a diode
circuit configured with a common anode or cathode.
The diode control panel can only be used with DC signals.
F
In case of discordance or errors in translation between the translated version and the original text
in the Italian language, reference will be made to the Italian or English text.
F
This device was designed and constructed for use on recreational crafts.
Other forms of use are not permitted without written authorization from the company Quick
For the installation and operating instructions see the main manual.
8
®
.
HRC100X-SUPPLEMENTARY - REV03A
