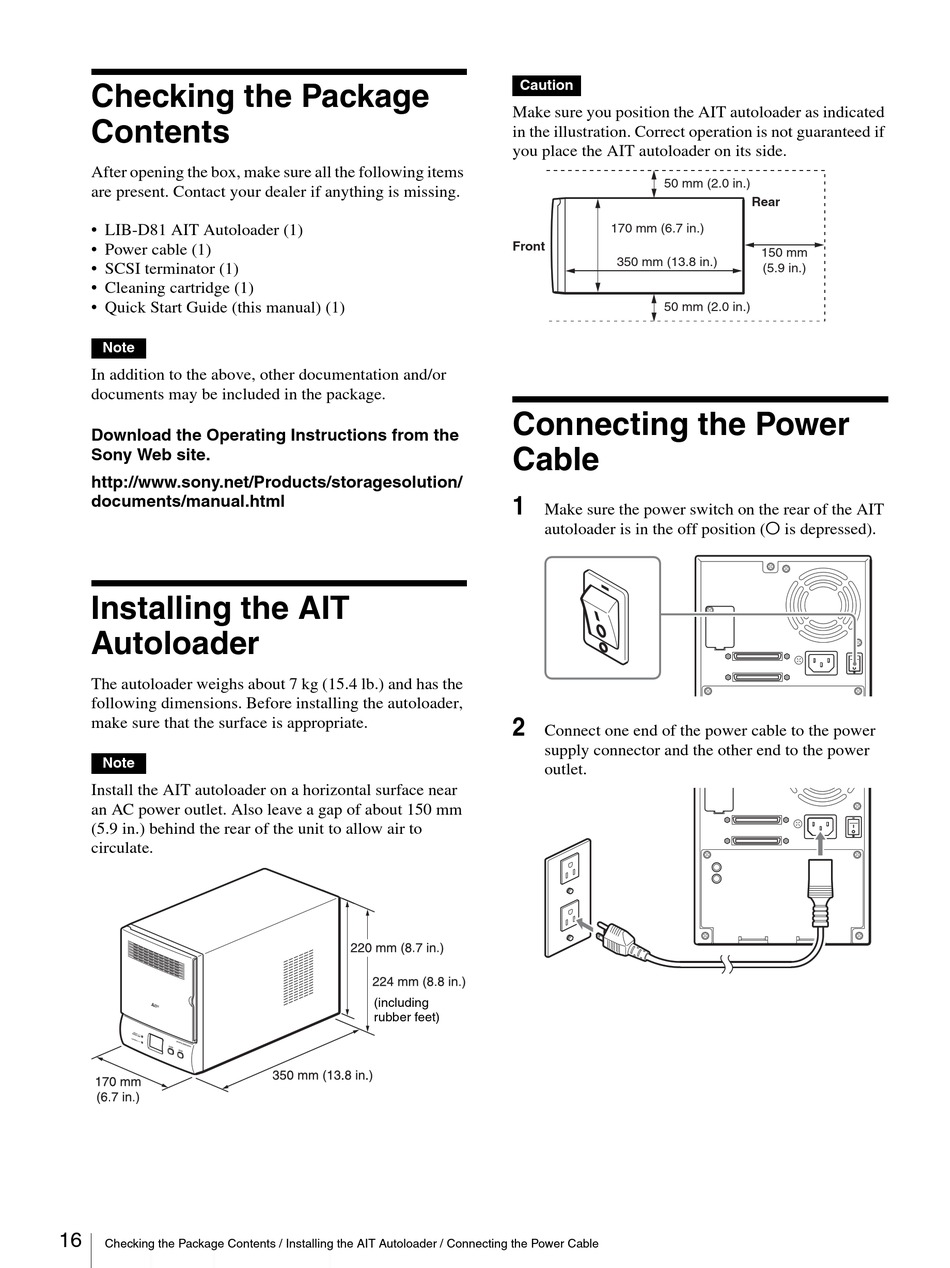

Checking the Package
Contents
After opening the box, make sure all the following items
are present. Contact your dealer if anything is missing.
• LIB-D81 AIT Autoloader (1)
• Power cable (1)
• SCSI terminator (1)
• Cleaning cartridge (1)
• Quick Start Guide (this manual) (1)
Note
In addition to the above, other documentation and/or
documents may be included in the package.
Download the Operating Instructions from the
Sony Web site.
http://www.sony.net/Products/storagesolution/
documents/manual.html
Installing the AIT
Autoloader
The autoloader weighs about 7 kg (15.4 lb.) and has the
following dimensions. Before installing the autoloader,
make sure that the surface is appropriate.
Note
Install the AIT autoloader on a horizontal surface near
an AC power outlet. Also leave a gap of about 150 mm
(5.9 in.) behind the rear of the unit to allow air to
circulate.
16
Checking the Package Contents / Installing the AIT Autoloader / Connecting the Power Cable
Caution
Make sure you position the AIT autoloader as indicated
in the illustration. Correct operation is not guaranteed if
you place the AIT autoloader on its side.
Front
Connecting the Power
Cable
1
Make sure the power switch on the rear of the AIT
autoloader is in the off position (a is depressed).
2
Connect one end of the power cable to the power
supply connector and the other end to the power
outlet.
(including
rubber feet)
50 mm (2.0 in.)
Rear
170 mm (6.7 in.)
150 mm
350 mm (13.8 in.)
(5.9 in.)
50 mm (2.0 in.)
