Advanced Contact Technology
6 / 8

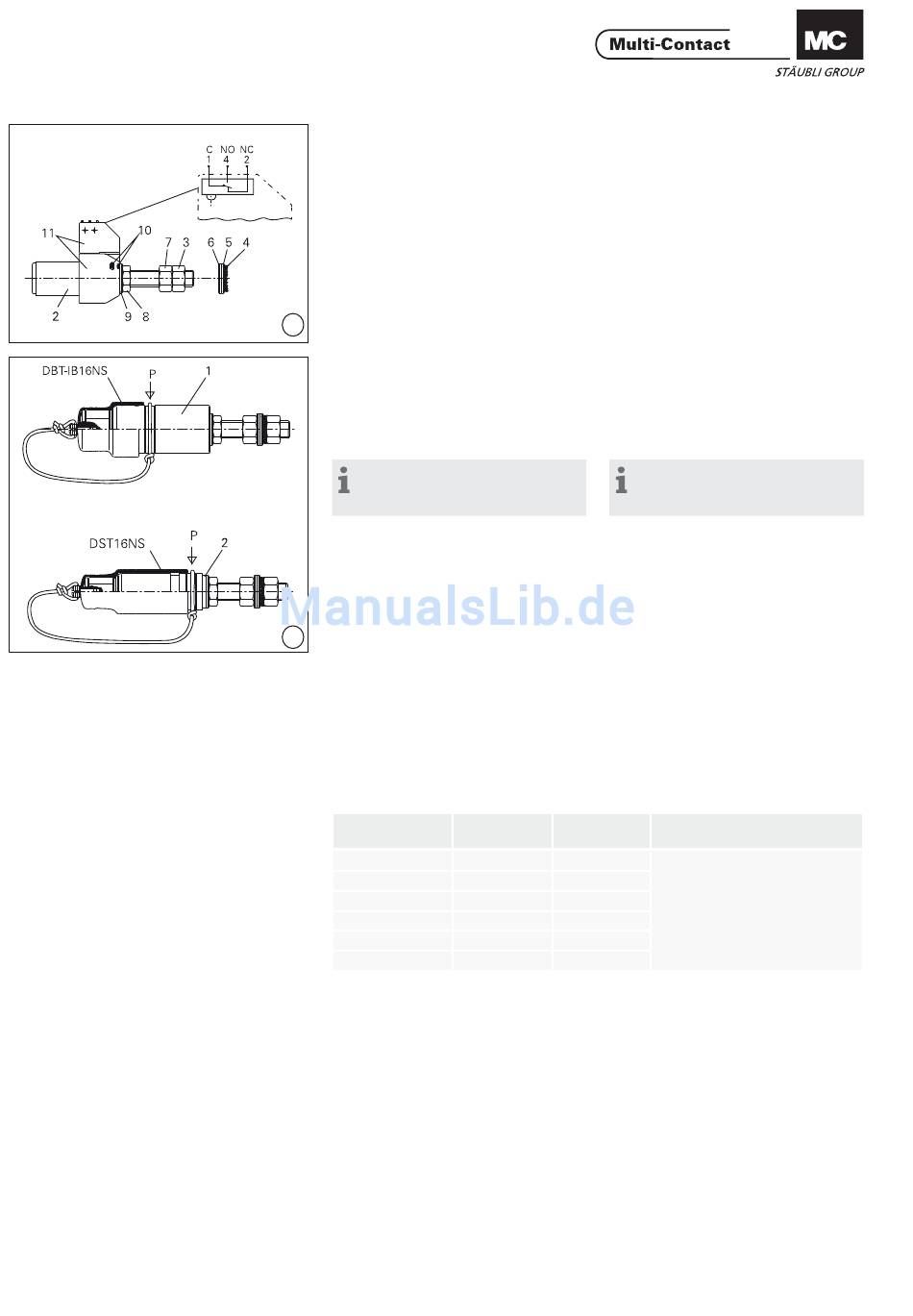

(ill. 14)
Stecker (2) in Mikro-schalteraufbau
(11) einführen und dabei darauf ach-
ten, dass die beiden O-Ringe (10) sau-
ber in der Nut liegen. Unterlegscheibe
(9) und Mutter (8) montieren. Zum
Verdrehschutz beim Anziehen von
Mutter (8), die Muttern (7+3) mon-
tieren und anziehen. Anzugsdrehmo-
ment von Mutter (8) 20Nm. Mutter (8)
mit Klebstoff z.B.Loctite 242 sichern.
14
Funktionskontrolle der Mikro-
schalter
Der Mikroschalter schaltet unmittelbar
bevor die Verriegelung einrastet und
zeigt damit an, dass die Steckverbin-
dung hergestellt ist.
Hinweis:
Die korrekte Verriegelung ist erst
nach dem Einrasten sichergestellt.

5. Montieren der Schutzkappe

(ill. 15)
Schutzkappe über Steckverbinder
ziehen. DBT-IB16NS über Buchse (1),
DST16NS über Stecker (2). Schlaufe
15
über Steckverbinder legen und das
Seil bei Pos. P festziehen.

Kodierung:

(Nur ...NS Typen) Es gibt max. 6 Ko-
diermöglichkeiten, gekennzeichnet mit
C1 bis C6. Folgende Kodierzuordnung
wird zur Sicherstellung der Auswech-
selbarkeit empfohlen:
Bezeichnung
Designation
Phase 1
Phase 2
Phase 3
Neutral
Erde/ground
-
www.multi-contact.com
(ill. 14)
Insert plug (2) into microswitch struc-
ture (11) making sure that both o-rings
(10) are correctly seated. Assemble
washer (9) and nut (8). Assemble nuts
(7+3) to counter the twisting action
when tightening nut (8) with the
torque spanner 24mm A/F. Tighten-
ing torque: 20Nm. Secure nut (8) with
glue (e.g. Loctite 242).
Functional check of micro-
switches
By switching immediately prior to
engagement of the interlock, the
microswitch indicates that the plug
connection is made.
only after engagement.
5. Mouting of protective cap
(ill. 15)
Push protective cap over the plug.
DBT-IB16NS over the socket (1), and
DST16NS over plug (2). Pull loop over
the connector and fasten cord at posi-
tion (P).

Coding:

(...NS types only) There are a maxi-
mum of 6 coding possibilities, desig-
nated from C1 to C6. The following
coding is recommended to safeguard
the interchangeability:
Kodier-Nr.
Symbol
Coding-No.
L1
C1
L2
C2
L3
C3
N
C4
PE
C5
-
C6
Note:
Correct interlocking is achieved
Farbe
Colour
Durch Kunden festzulegen
To be defi ned by the customer
