Director – Quickstart

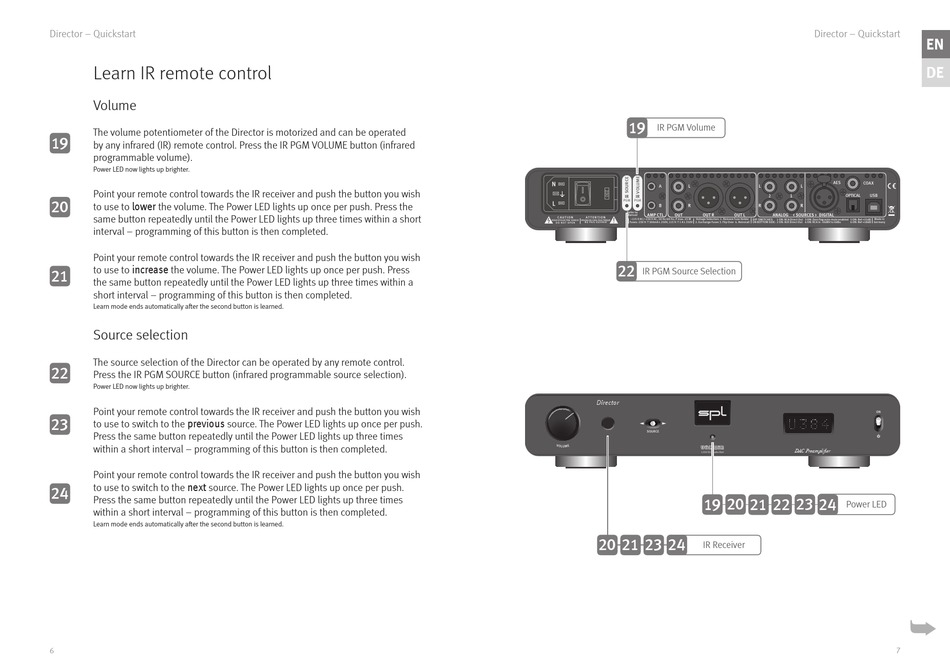

Learn IR remote control
Volume
The volume potentiometer of the Director is motorized and can be operated
19
by any infrared (IR) remote control. Press the IR PGM VOLUME button (infrared
programmable volume).
Power LED now lights up brighter.
Point your remote control towards the IR receiver and push the button you wish
20
lower
to use to
the volume. The Power LED lights up once per push. Press the
same button repeatedly until the Power LED lights up three times within a short
interval – programming of this button is then completed.
Point your remote control towards the IR receiver and push the button you wish
increase
to use to
the volume. The Power LED lights up once per push. Press
21
the same button repeatedly until the Power LED lights up three times within a
short interval – programming of this button is then completed.
Learn mode ends automatically after the second button is learned.
Source selection
The source selection of the Director can be operated by any remote control.
22
Press the IR PGM SOURCE button (infrared programmable source selection).
Power LED now lights up brighter.
Point your remote control towards the IR receiver and push the button you wish
23
previous
to use to switch to the
source. The Power LED lights up once per push.
Press the same button repeatedly until the Power LED lights up three times
within a short interval – programming of this button is then completed.
Point your remote control towards the IR receiver and push the button you wish
to use to switch to the
next
source. The Power LED lights up once per push.
24
Press the same button repeatedly until the Power LED lights up three times
within a short interval – programming of this button is then completed.
Learn mode ends automatically after the second button is learned.
6
19
IR PGM Volume
A
L
IR
IR
IR
PGM
PGM
B
R
Refer to
AMP CTL
OUT
OUT R
Manual
C A U T I O N
AT T E N T I O N
~115 V AC/~230 V AC, 50 Hz/60 Hz, P max. 45 W
Voltage Selection: 1. Remove Fuse Holder
RISK OF ELECTRIC SHOCK
RISQUE DE CHOC ÉLECTRIQUE
D O N O T O P E N
N E P A S O U V R I R
Fuses: 230 V: T 500mA L 250V, 115 V: T 1 A L 250V
2. Exchange Fuses 3. Flip Over 4. Reinstall
22
IR PGM Source Selection
Director
SOURCE
VOLTAiR
120V DC Audio Rail
19
20
20
21
23
24
IR Receiver
Director – Quickstart
COAX
L
L
2
1
OPTICAL
R
R
OUT L
ANALOG
< SOURCES > DIGITAL
DIP SWITCHES
1 ON: RCA Direct Out
3 ON: Zero flag auto-mute enabled
5 ON: Ref +15dB
Made in
ON BOTTOM SIDE:
2 ON: XLR Direct Out
4 ON: RCA In -10dBV to 0dBu
6 ON: Ref +18dB
Germany
ON
DAC Preamplifier
21
22
23
24
Power LED
7
