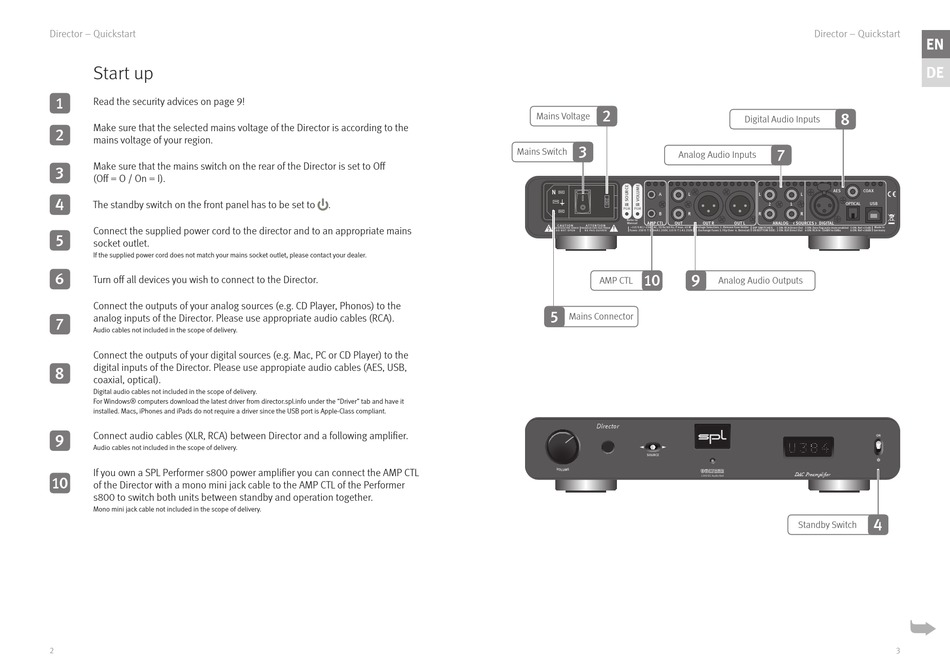

Director – Quickstart
Start up
1
Read the security advices on page 9!
Make sure that the selected mains voltage of the Director is according to the
2
mains voltage of your region.
Make sure that the mains switch on the rear of the Director is set to Off
3
(Off = O / On = I).
4
The standby switch on the front panel has to be set to
Connect the supplied power cord to the director and to an appropriate mains
5
socket outlet.
If the supplied power cord does not match your mains socket outlet, please contact your dealer.
6
Turn off all devices you wish to connect to the Director.
Connect the outputs of your analog sources (e.g. CD Player, Phonos) to the
analog inputs of the Director. Please use appropriate audio cables (RCA).
7
Audio cables not included in the scope of delivery.
Connect the outputs of your digital sources (e.g. Mac, PC or CD Player) to the
digital inputs of the Director. Please use appropiate audio cables (AES, USB,
8
coaxial, optical).
Digital audio cables not included in the scope of delivery.
For Windows® computers download the latest driver from director.spl.info under the "Driver" tab and have it
installed. Macs, iPhones and iPads do not require a driver since the USB port is Apple-Class compliant.
Connect audio cables (XLR, RCA) between Director and a following amplifier.
9
Audio cables not included in the scope of delivery.
If you own a SPL Performer s800 power amplifier you can connect the AMP CTL
10
of the Director with a mono mini jack cable to the AMP CTL of the Performer
s800 to switch both units between standby and operation together.
Mono mini jack cable not included in the scope of delivery.
2
.
2
Mains Voltage
3
Mains Switch
Analog Audio Inputs
A
L
IR
IR
PGM
PGM
B
R
Refer to
AMP CTL
OUT
Manual
C A U T I O N
AT T E N T I O N
~115 V AC/~230 V AC, 50 Hz/60 Hz, P max. 45 W
Voltage Selection: 1. Remove Fuse Holder
RISK OF ELECTRIC SHOCK
RISQUE DE CHOC ÉLECTRIQUE
D O N O T O P E N
N E P A S O U V R I R
Fuses: 230 V: T 500mA L 250V, 115 V: T 1 A L 250V
2. Exchange Fuses 3. Flip Over 4. Reinstall
10
9
AMP CTL
5
Mains Connector
Director
SOURCE
Director – Quickstart
8
Digital Audio Inputs
7
COAX
L
L
OPTICAL
2
1
IR
R
R
OUT R
OUT L
ANALOG
< SOURCES > DIGITAL
DIP SWITCHES
1 ON: RCA Direct Out
3 ON: Zero flag auto-mute enabled
5 ON: Ref +15dB
Made in
ON BOTTOM SIDE:
2 ON: XLR Direct Out
4 ON: RCA In -10dBV to 0dBu
6 ON: Ref +18dB
Germany
Analog Audio Outputs
ON
VOLTAiR
DAC Preamplifier
120V DC Audio Rail
4
Standby Switch
