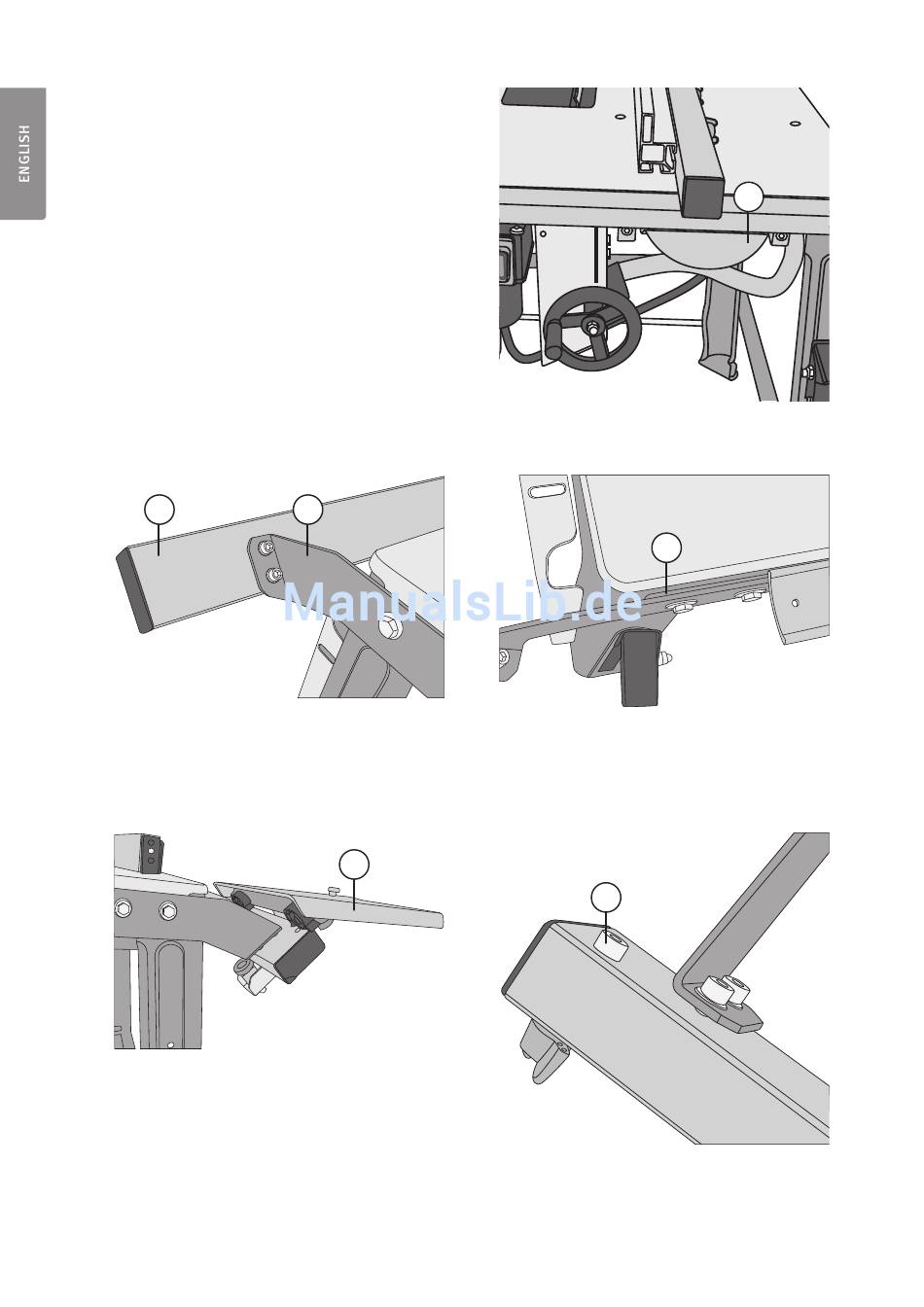

5. Locate the end of the rip fence rail in
the clamp (17). Lift the clamping handle up
to lock the rip fence rail in position and push
the handle down to release it.

Mitre gauge

21
1. Attach the two slider rail brackets (22) to the slider
rail (21) using four M6 × 16 mm socket head bolts
and washers.
3. Slide the mitre gauge table (24) onto the slider rail.
Insert an M6 × 40 mm socket head bolt (25) and
wing nut at each end of the slider rail. These will
prevent the sliding mitre gauge table from
coming off.
22
24
8
2. Attach the slider rail to the table using four
M6 × 20 mm bolts, nuts and washers. Finger-
tighten the bolts. Note: Insert the spacer (23)
between the table and the front slider rail bracket.
25
17
23
