Electrical connections

• The power supply must be 230 V AC, 50 Hz.
• The mains lead and any extension leads used must 3-core (twin and earth).
• The cablage must have a conductor cross-sectional area of 1.5 mm².
• Use a standard (BS1363) plug fitted with a 13 amp fuse.
Note: All electrical connections and repairs should be carried out by a qualified electrician.
Use
Placement
• Place the saw on a firm and level surface.
• The table legs have holes in the bottom for bolting to the floor if required.
• Make sure that there is enough space around the saw for the work to be carried out safely.
• Never lift the table saw up by the tabletop, always use a sack truck, pallet truck or suitable lifting equipment.
Fitting and replacing the saw blade
Blade height setting

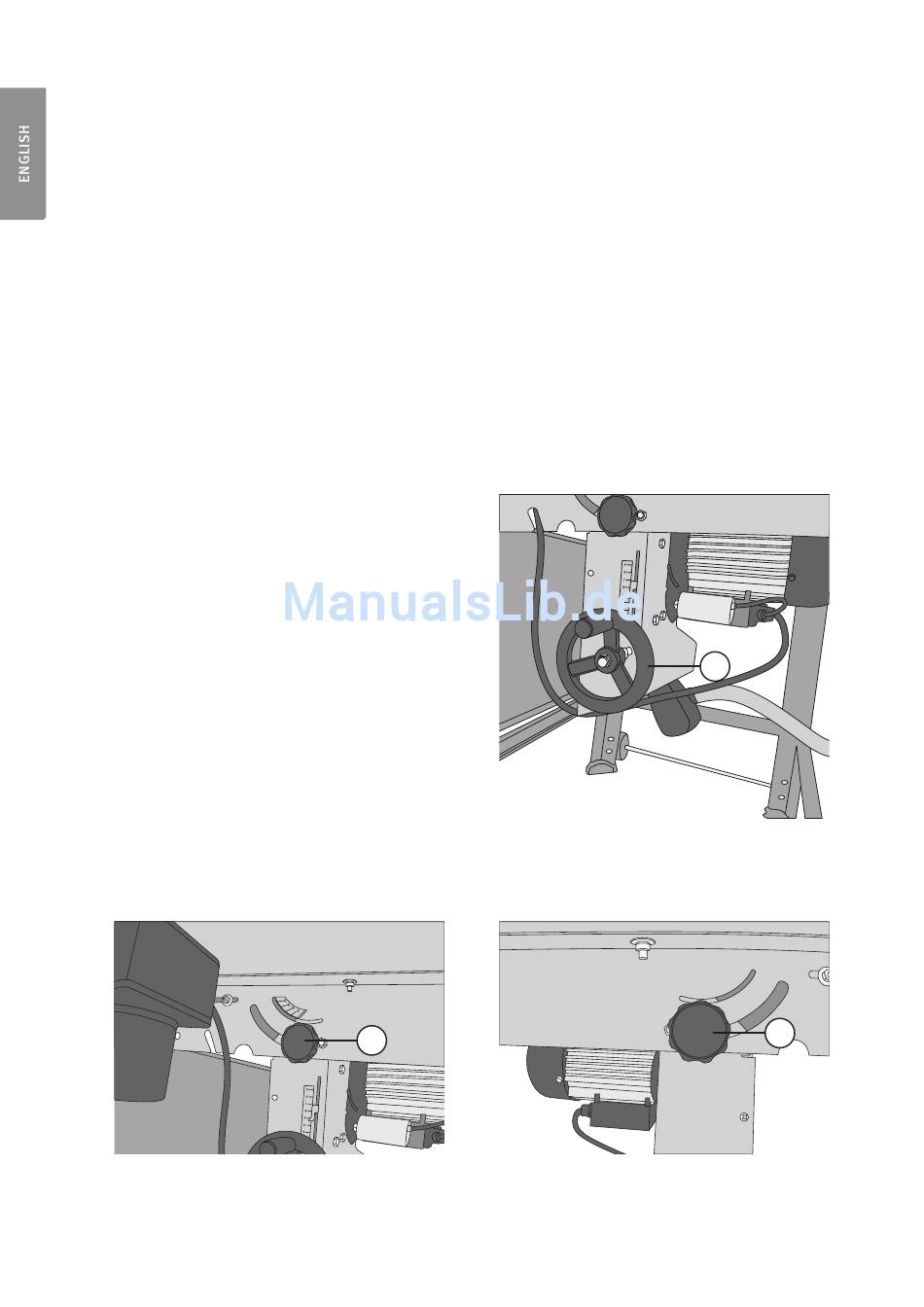

The saw blade can be raised and lowered over
a range of 80 mm with the help of the elevating
and lowering handle (32).
32
Setting the bevel angle
1. After first undoing the locking knobs (33, 34) on the front and back of the table saw, the saw blade can be
bevelled freely from 90º to 45º.
34
33
2. Set the desired bevel angle and then tighten the locking knobs.
