Riving knife

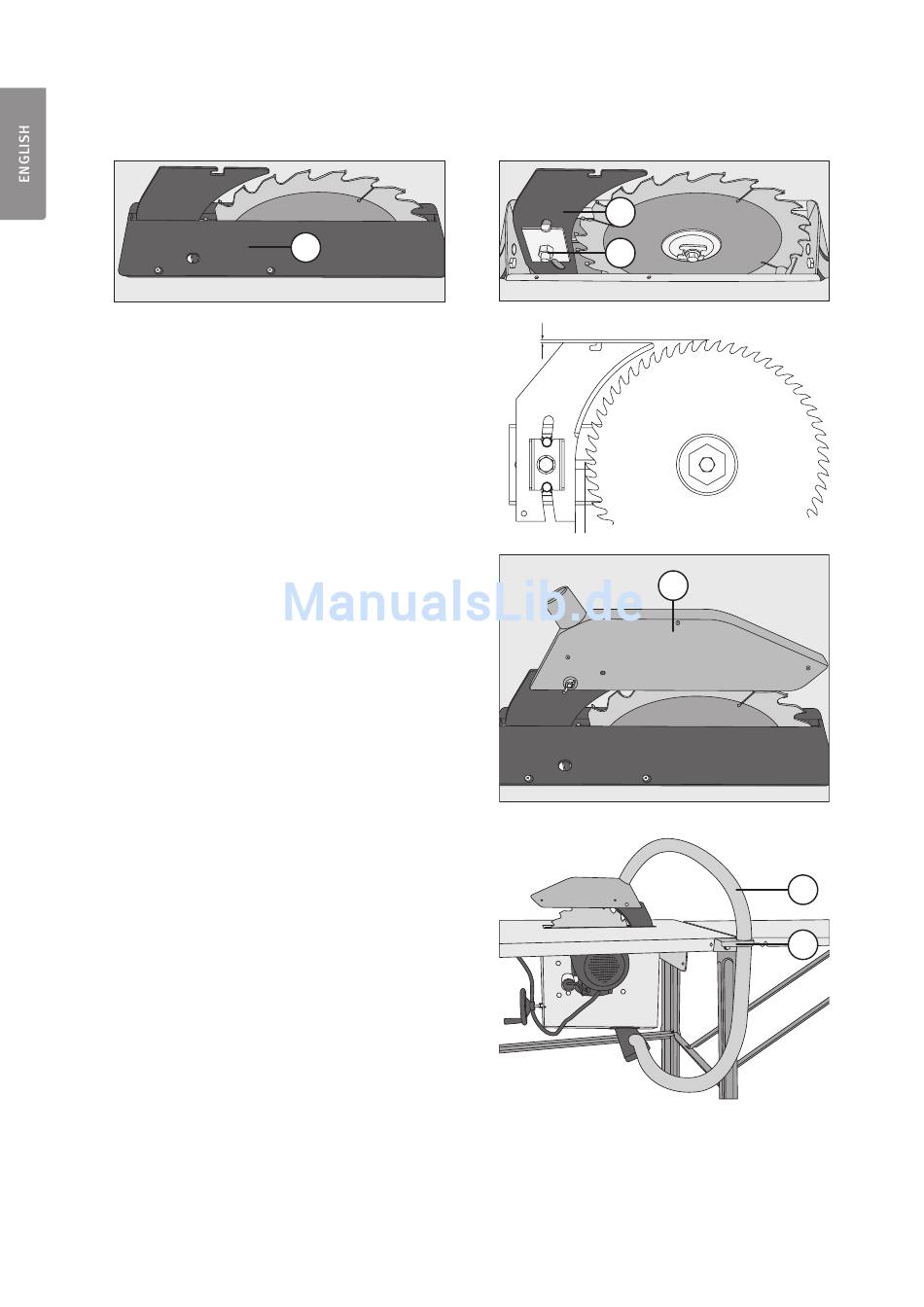

1. Remove the table insert (9).
2. Adjust the riving knife (10) as shown in
the diagram. Loosen the adjusting screw (11)
a little so you can adjust the knife. Retighten
the screw. Refit the table insert.

Blade guard

Bolt the blade guard (12) onto the riving knife using
the M6 × 25 mm bolt, M6 washer and the wing nut.
Hose holder
Attach the hose holder (14) to the tabletop
using 2 of the M6 × 16 mm bolts, M6 nuts and
washers. Connect the dust extraction hose (13)
to the blade guard and to the dust extraction
port and then tidy the hose up by pushing it into
the hose holder.
9
6
10
11
3–8 mm
12
13
14
