DESCRIPTION OF THE DEVICE

Features

LED color changing bar with TILT movement and 8 W QCLs
• Stepless vertical movement via control panel or DMX
• Equipped with 12 quadcolor LEDs in the colors red, green, blue and white
• 6, 8, 12 or 54 DMX channels selectable
• Each LED can be controlled individually
• Hanging as well as standing installation possible
• Functions: RGBW color mixture, color presets, 11 preset color temperatures, automatic color change, built-
in programs, dimmer, strobe effect, sound-control, Master/Slave operation
• Dimmer speed (step response) adjustable
• Automatic position correction
• Sound-controlled via built-in microphone
• Adjustable microphone sensitivity via Control Board
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Comfortable addressing and setting via Control Board with LCD display and four operating buttons
• Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power
selector
• Power connection via Neutrik PowerCon jack and included power cable
• Feed-through output allows to power another device
• After every 8 devices the fixtures must have a renewed connection with the power mains
• DMX control via every standard DMX controller

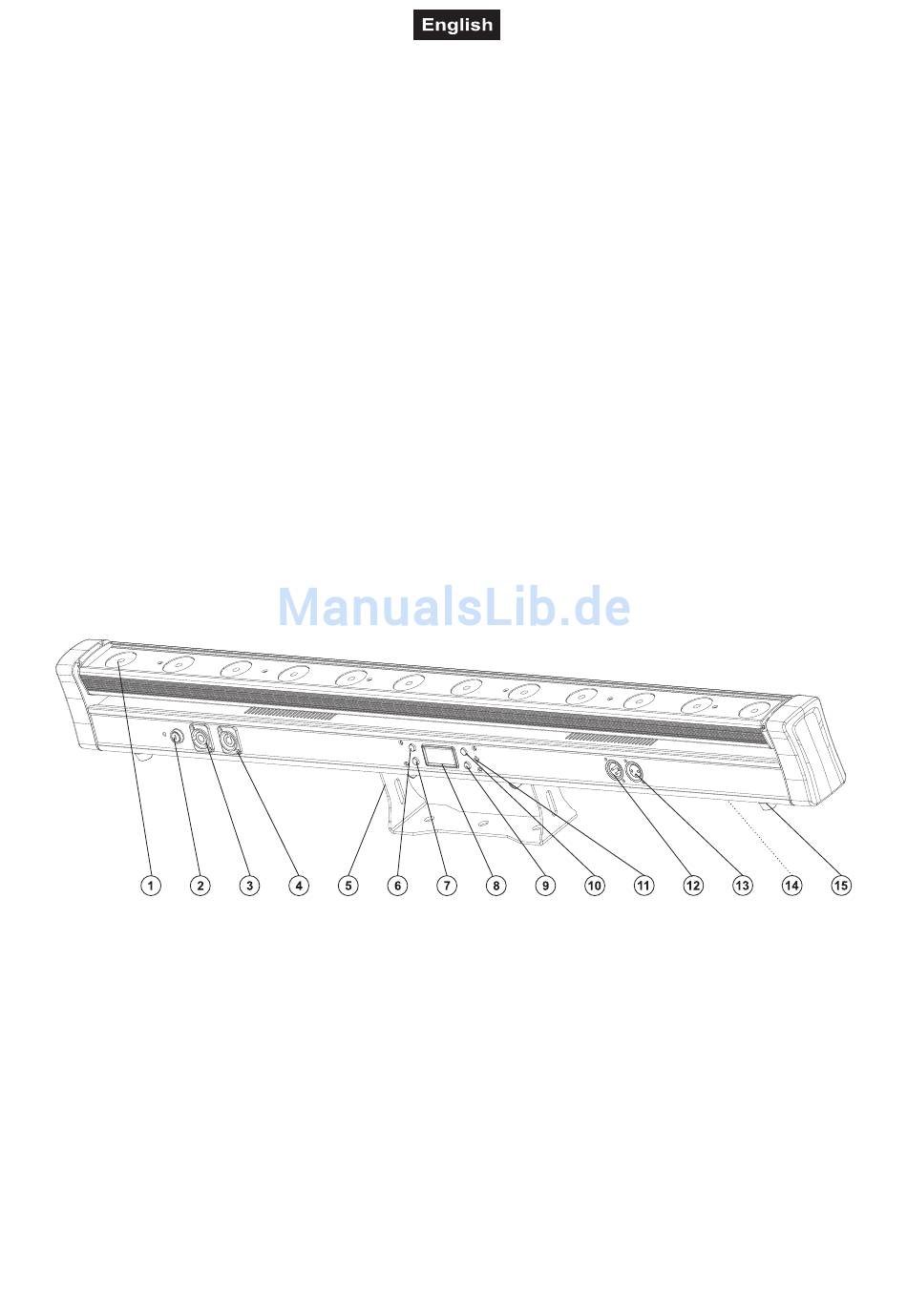

Overview

(1) LED
(2) Fuseholder
(3) Power input
(4) Power output
(5) Mounting bracket
(6) Mode button
(7) Enter button
(8) Display
(9) Down button
(10) Up button
(11) Microphone
(12) DMX-In socket
(13) DMX-Out socket
(14) Safety eyelet
(15) Rubber foot
