Easidew Taupunkt-Transmitter Bedienungsanleitung
Freigegebene Galvanische
Trennung
Zertifi kat für die Verwendung in Ex-gefährdeten Bereichen
Produkt-
Zertifi zierungscode
A.1
Abmessungen
TRANSMITTER
ø27mm
10mm
(0.39")
(1.06")
TRANSMITTER
ø27mm
10mm
(0.39")
(1.06")
TRANSMITTER
ø27mm
10mm
(0.39")
(1.06")
Michell Instruments
KFD2-CR-EX1.20200
KFD2-CR-EX1.30200
KFD0-CS-EX1.50P
ATEX II 1G Ex ia IIC T4 Ga (-20°C to +70°C)
IECEx
Ex ia IIC T4 Ga (-20°C to +70°C)
TC TR Ex
0Ex ia IIC T4 Ga (-20°C to +70°C)
FM
Class I, Division 1, Groups A B C D, T4
CSA Class I, Division 1, Groups A B C D, T4
G1/2" BSP Verbunddichtung
132mm
(5.19")
46mm
(1.81")
G1/2" BSP
10mm
(0.39")
G1/2" Prozessanschluss
132mm
(5.19")
46mm
(1.81")
3/4" UNF
10mm
(0.39")
3/4" Prozessanschluss
5/8" - 18 UNF Verbunddichtung
132mm
(5.19")
46mm
(1.81")
5/8" UNF
10mm
(0.39")
5/8" Prozessanschluss

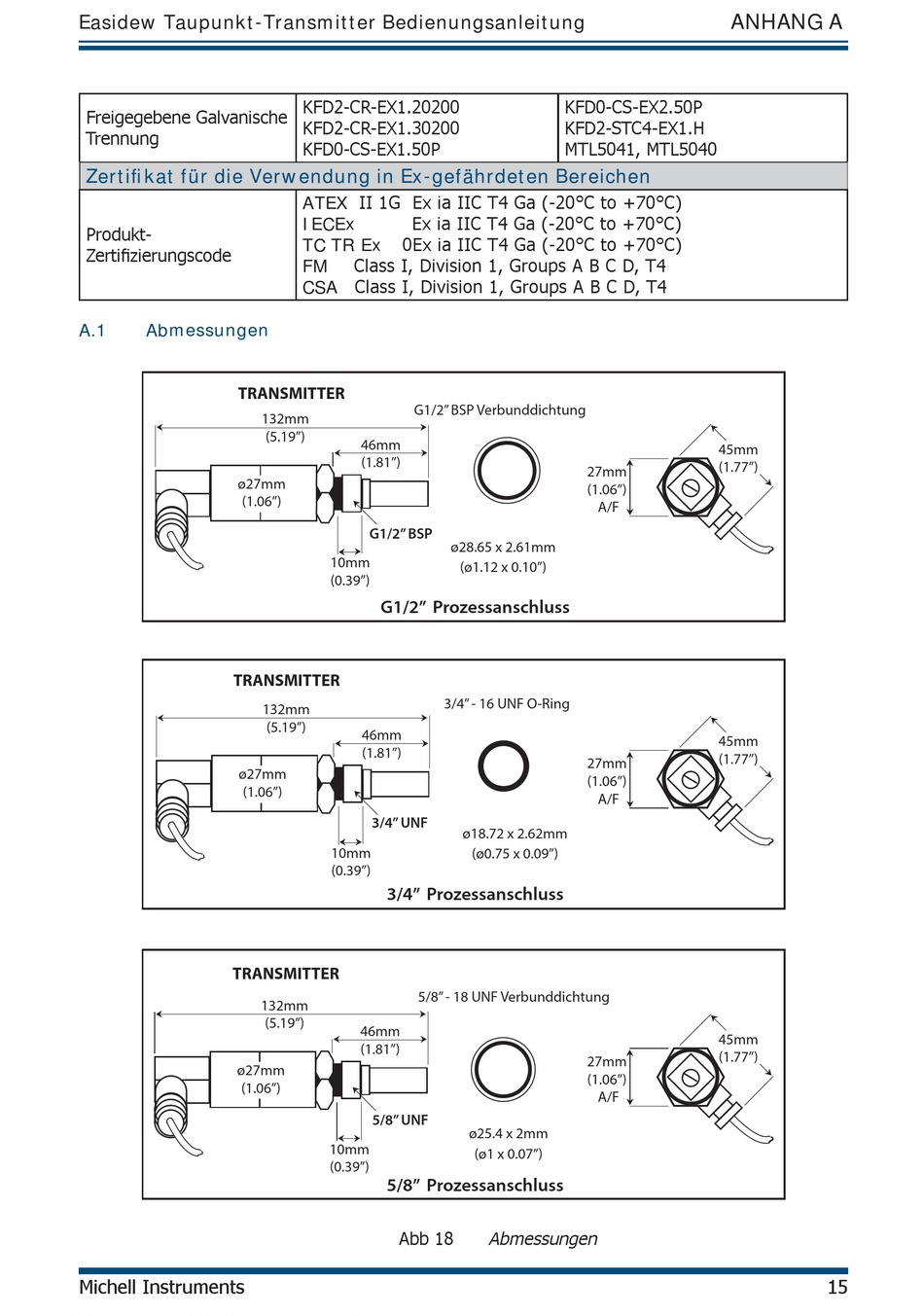

Abb 18
KFD0-CS-EX2.50P
KFD2-STC4-EX1.H
MTL5041, MTL5040
27mm
(1.06")
A/F
ø28.65 x 2.61mm
(ø1.12 x 0.10")
3/4" - 16 UNF O-Ring
27mm
(1.06")
A/F
ø18.72 x 2.62mm
(ø0.75 x 0.09")
27mm
(1.06")
A/F
ø25.4 x 2mm
(ø1 x 0.07")
Abmessungen
ANHANG A
45mm
(1.77")
45mm
(1.77")
45mm
(1.77")
