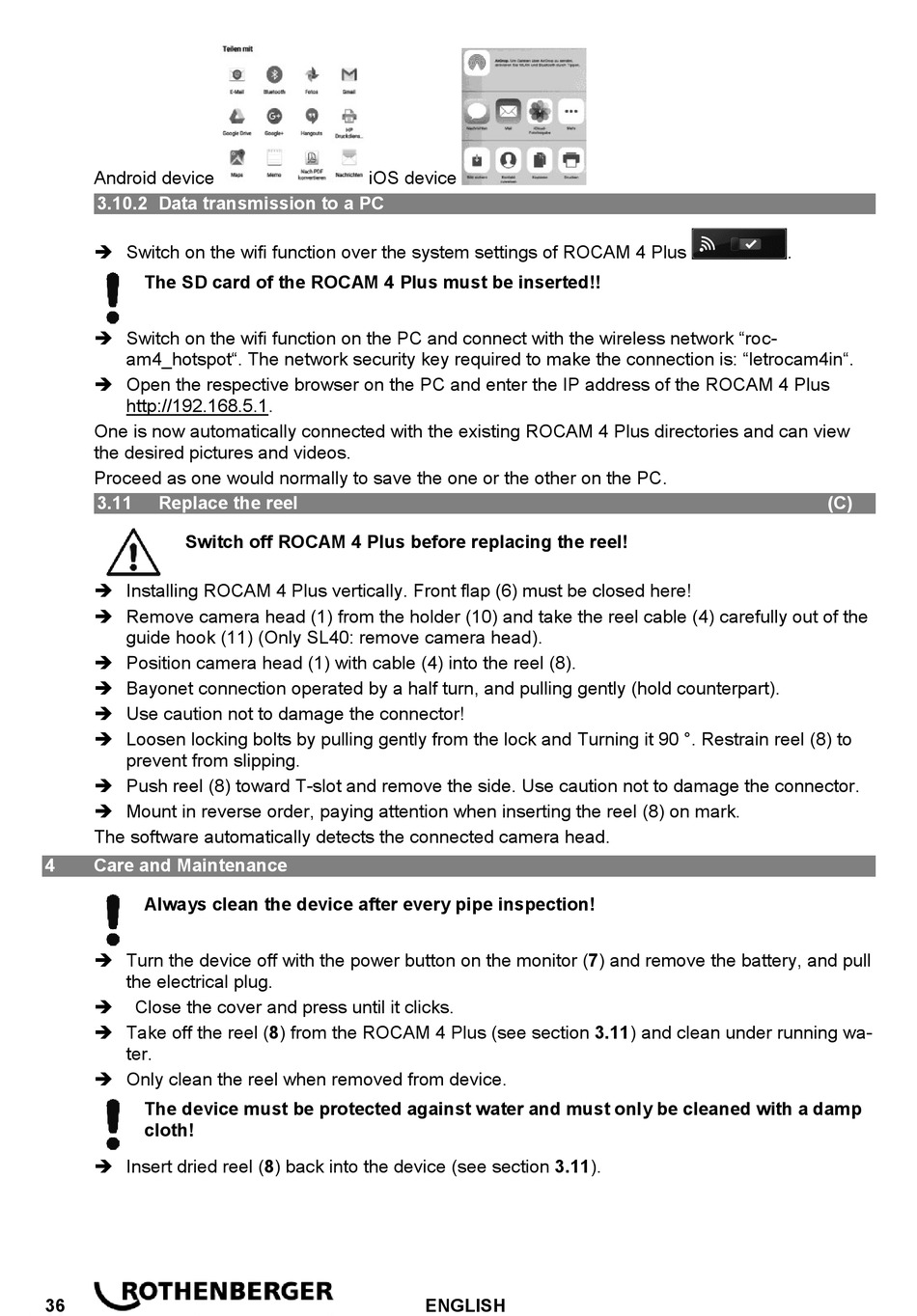

3.10.2 Data transmission to a PC

 Switch on the wifi function over the system settings of ROCAM 4 Plus
The SD card of the ROCAM 4 Plus must be inserted!!
 Switch on the wifi function on the PC and connect with the wireless network "roc-
am4_hotspot". The network security key required to make the connection is: "letrocam4in".
 Open the respective browser on the PC and enter the IP address of the ROCAM 4 Plus
http://192.168.5.1.
One is now automatically connected with the existing ROCAM 4 Plus directories and can view
the desired pictures and videos.
Proceed as one would normally to save the one or the other on the PC.
3.11 Replace the reel
Switch off ROCAM 4 Plus before replacing the reel!
 Installing ROCAM 4 Plus vertically. Front flap (6) must be closed here!
 Remove camera head (1) from the holder (10) and take the reel cable (4) carefully out of the
guide hook (11) (Only SL40: remove camera head).
 Position camera head (1) with cable (4) into the reel (8).
 Bayonet connection operated by a half turn, and pulling gently (hold counterpart).
 Use caution not to damage the connector!
 Loosen locking bolts by pulling gently from the lock and Turning it 90 °. Restrain reel (8) to
prevent from slipping.
 Push reel (8) toward T-slot and remove the side. Use caution not to damage the connector.
 Mount in reverse order, paying attention when inserting the reel (8) on mark.
The software automatically detects the connected camera head.
4

Care and Maintenance

Always clean the device after every pipe inspection!
 Turn the device off with the power button on the monitor (7) and remove the battery, and pull
the electrical plug.
 Close the cover and press until it clicks.
 Take off the reel (8) from the ROCAM 4 Plus (see section 3.11) and clean under running wa-
ter.
 Only clean the reel when removed from device.
The device must be protected against water and must only be cleaned with a damp
cloth!
 Insert dried reel (8) back into the device (see section 3.11).
