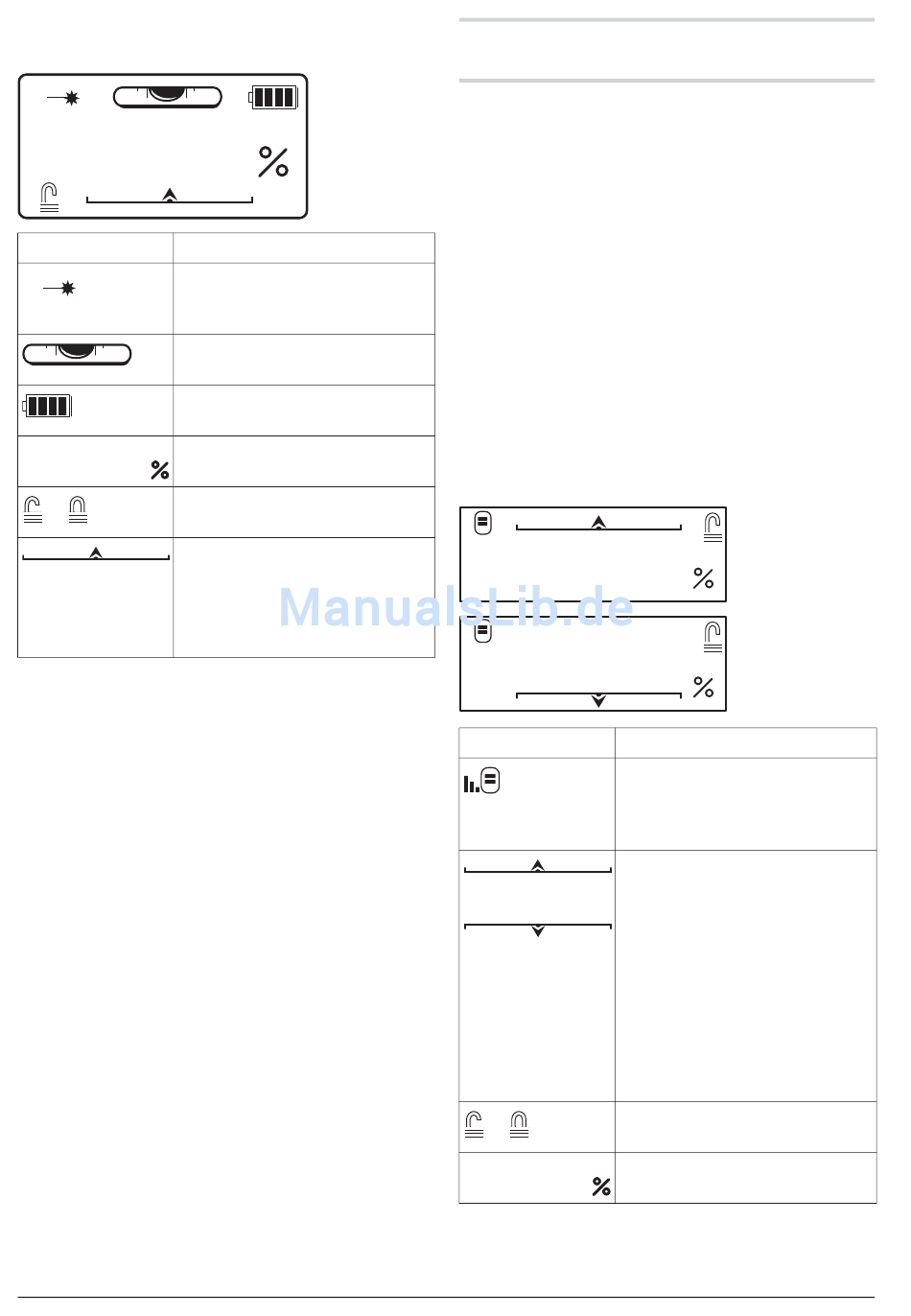

Standard Indication of the PipeLaser
During operation, the standard indication is shown.
6
00.000
+
Symbol Meaning
Indicates the laser power
6
(1 to 9);
flashes during levelling.
Indicates that the lateral axis is
levelled.
Indicates the charge condition of
the batteries/battery pack.
Indicates the current grade set-
00.000
+
ting of the measuring tool.
Settings for grade and lateral
alignment enabled or blocked.
Indicates the current setting for
lateral alignment of the measur-
ing tool.
The arrow symbol points in the
direction of the laser beam.
Switching Off
f Do not leave the switched on measuring tool
unattended and switch the measuring tool
off after use. Other persons could be blinded by
the laser beam.
– To switch off the measuring tool, briefly press but-
ton 17 again (on control panel 1).
LED 5 goes out.
Standby Operation
In standby operation, the power consumption of the
the measuring tool is lowered by the display and the
laser beam being switched off. The settings (e. g.
laser power, grade, etc) are retained in this mode.
Note: Standby operation can only be activated and
deactivated via the remote control (on control panel
16).
– To activate or deactivate standby operation, press
and hold button 17 and press button 21 at the
same time.
30 | English
Starting Operation of the Remote
Control
Switching On and Off
– To switch on the remote control, briefly press but-
ton 17 (on control panel 16).
After switching on, a start indication with the manufac-
turer's name is shown on the display 15 for several
seconds.
After the start indication, the standard indication of the
remote control (see "Standard Indication of the
Remote Control", page 30) is shown.
After a short period, the remote control automatically
switches off when not being operated.
Note: Pressing and holding button 17 longer than
2 seconds switches off the illumination of display 2.
Standard Indication of the Remote Control
During operation, the standard indication is shown.
00.000
+
00.000
+
Symbol Meaning
Signal strength;
is only indicated when a signal is
received from the measuring
tool.
Indicates the current setting for
lateral alignment of the measur-
ing tool.
Arrow symbol up: Remote con-
trol behind measuring tool; laser
beam points away from the
remote control.
Arrow symbol down: Remote
control in front of the measuring
tool; laser beam points to the
remote control.
Settings for grade and lateral
alignment enabled or blocked.
Indicates the current grade set-
00.000
+
ting of the measuring tool.
