22
Hinweis!
Vor Anschluß oder Trennen von Zusatzgeräten
(Drucker, PC) an die Datenschnittstelle muß die Waage
unbedingt vom Netz getrennt werden.

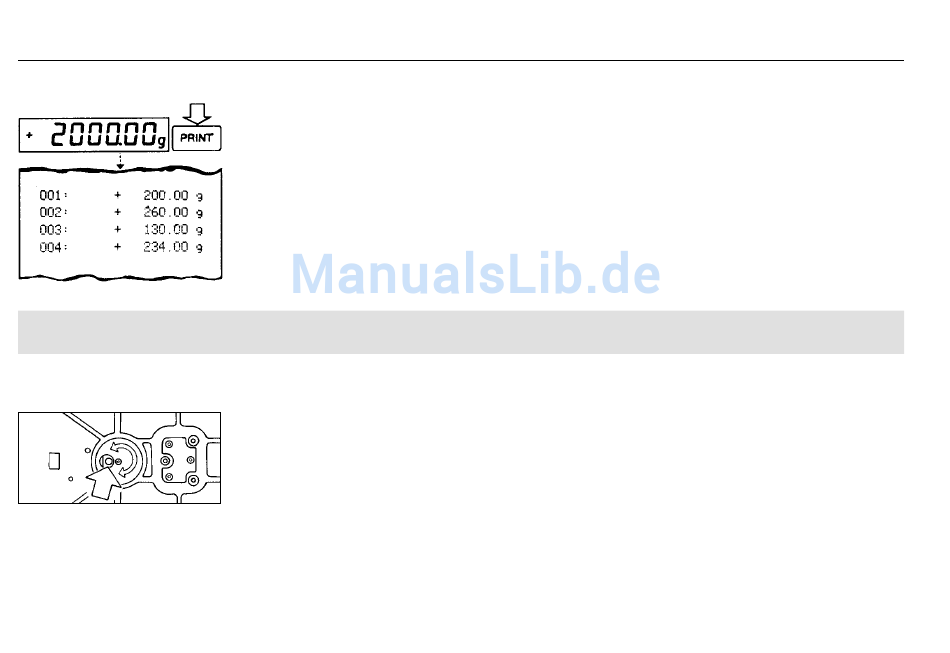

Zur Datenausgabe betätigen Sie die PRINT-Taste (7).
Hinweise zur Datenausgabebedingung und
Datenkennzeichnung siehe Seite 36.
Nähere Informationen zur Datenschnittstelle fordern
Sie bitte direkt bei SCALTEC an (z.B. Datenausgabe-,
Dateneingangsformate, Pinbelegung, usw.).
Unterflurwägung
Für Wägungen unterhalb der Waage steht eine
Unterfluröffnung zur Verfügung.
Bei Waagen mit Analysen-Windschutz:
Die Unterflurwägung durch Drehen der Verschlußplatte
am Waagenboden öffnen.
Important Note
Make sure to unplug the balance from AC power before
you connect or disconnect a peripheral device (printer or
PC) to or from the interface port.
To print data on hard copy or output them on a computer
screen, press the PRINT key (7).
For information about the data output parameters and data
ID codes, see page 36. For details on the data interface (such
as the data output or input formats, pin assignment, etc.),
contact SCALTEC.
Below-Balance Weighing
A port for a below-balance weighing hanger is located
on the bottom of the balance.
For Balances with an Analytical Draft Shield
Chamber:
To open the below-balance port, turn the cover plate.
