Technical specifications

Operating voltage: 230 V 50 Hz
Power consumption: ca. 3 VA
Magnetic valve: 1/2" 24 V 50 Hz
Main flushing: from 1 s to 10 s
Stadium mode: from 3 usages within 1,5 min flushing will be exexuted every minute
Stagnation rinse: activatable, after 3h or 24 h of none usage
Dry-out protection: for odor trap restoration
Flow pressure: 0,05 - 0,6 MPa (0,5 - 6 bar)
Flow rate: ca. 0,3 - ca. 0,7 l/s at 0,3 MPa (3 bar) according to EN 12541 reduceable
Urinals: For urinals with a level urinal outlet at the back. Urinals with avertical
siphon e.g. Laufen Taro Nova only with siphon adaptor (Art.Nr. 231 311)
Installation note: To avoid rinsing out of cleaning agents inside the cermic a central
water shut-of resp. power off for the urinals should be provided
on site.

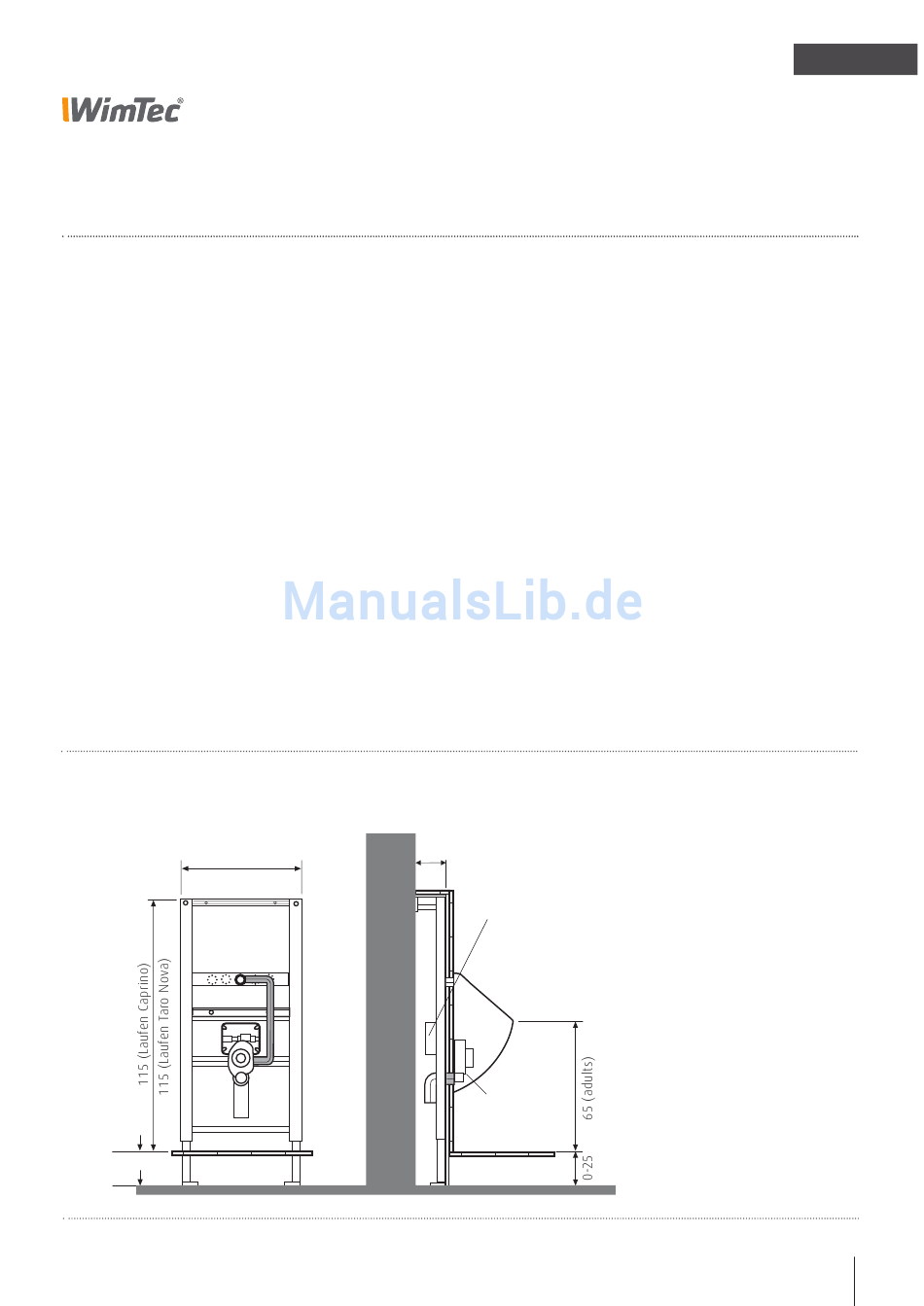

Installation dimensions

All dimensions in cm
51,5
Finished
floor level
Structural
floor level
10-17,5
Control electronics and
valve unit are installed
behind the ceramics
Inlet
DN 15
Outlet
DN 50
Sensor siphon
Urinal control WimTec INSIDE
