Version 04/09
°

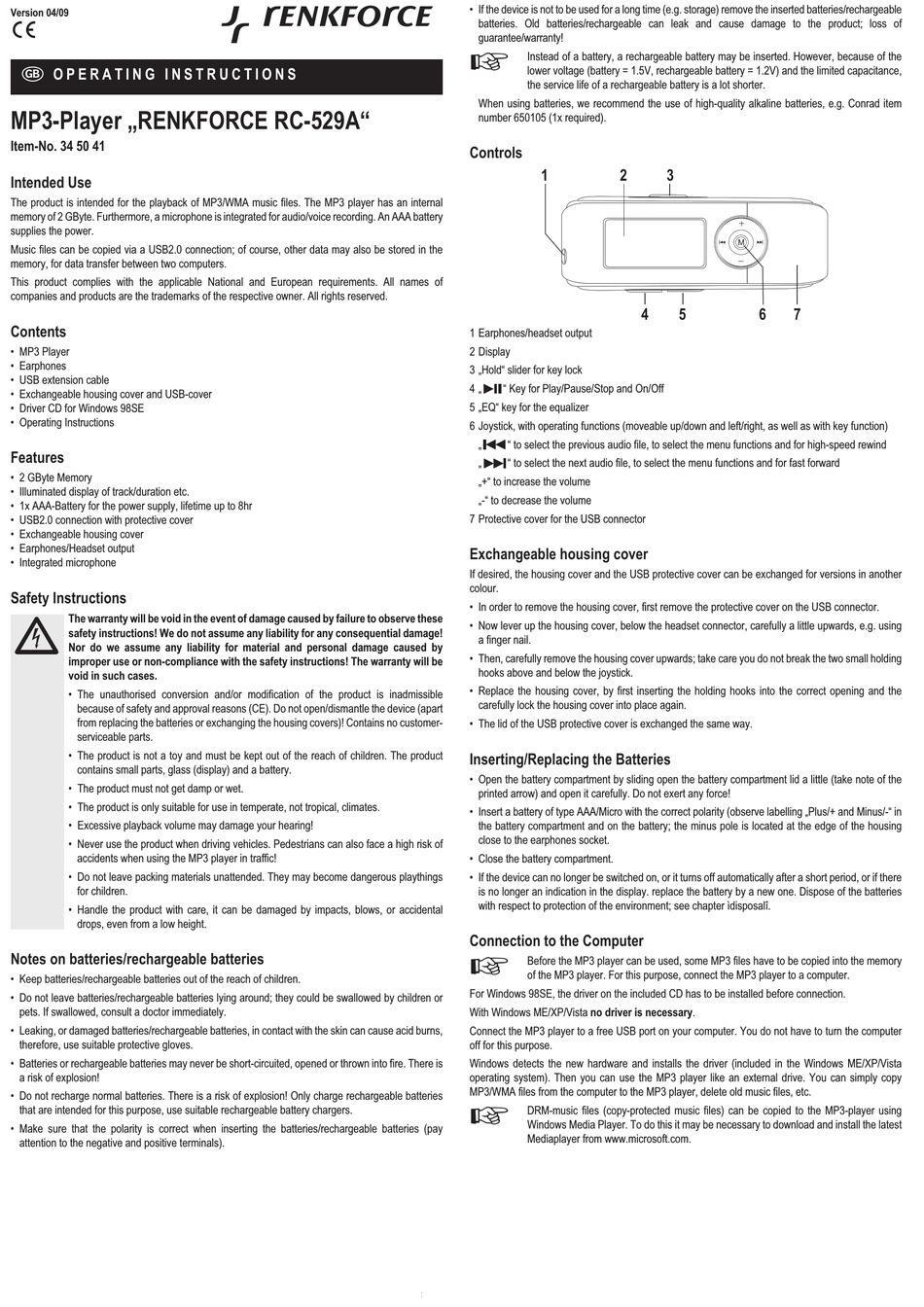

O P E R A T I N G I N S T R U C T I O N S
MP3-Player „RENKFORCE RC-529A"
Item-No. 34 50 41
Intended Use
The product is intended for the playback of MP3/WMA music files. The MP3 player has an internal
memory of 2 GByte. Furthermore, a microphone is integrated for audio/voice recording. An AAA battery
supplies the power.
Music files can be copied via a USB2.0 connection; of course, other data may also be stored in the
memory, for data transfer between two computers.
This product complies with the applicable National and European requirements. All names of
companies and products are the trademarks of the respective owner. All rights reserved.
Contents
• MP3 Player
• Earphones
• USB extension cable
• Exchangeable housing cover and USB-cover
• Driver CD for Windows 98SE
• Operating Instructions
Features
• 2 GByte Memory
• Illuminated display of track/duration etc.
• 1x AAA-Battery for the power supply, lifetime up to 8hr
• USB2.0 connection with protective cover
• Exchangeable housing cover
• Earphones/Headset output
• Integrated microphone
Safety Instructions
The warranty will be void in the event of damage caused by failure to observe these
safety instructions! We do not assume any liability for any consequential damage!
Nor do we assume any liability for material and personal damage caused by
improper use or non-compliance with the safety instructions! The warranty will be
void in such cases.
• The unauthorised conversion and/or modification of the product is inadmissible
because of safety and approval reasons (CE). Do not open/dismantle the device (apart
from replacing the batteries or exchanging the housing covers)! Contains no customer-
serviceable parts.
• The product is not a toy and must be kept out of the reach of children. The product
contains small parts, glass (display) and a battery.
• The product must not get damp or wet.
• The product is only suitable for use in temperate, not tropical, climates.
• Excessive playback volume may damage your hearing!
• Never use the product when driving vehicles. Pedestrians can also face a high risk of
accidents when using the MP3 player in traffic!
• Do not leave packing materials unattended. They may become dangerous playthings
for children.
• Handle the product with care, it can be damaged by impacts, blows, or accidental
drops, even from a low height.
Notes on batteries/rechargeable batteries
• Keep batteries/rechargeable batteries out of the reach of children.
• Do not leave batteries/rechargeable batteries lying around; they could be swallowed by children or
pets. If swallowed, consult a doctor immediately.
• Leaking, or damaged batteries/rechargeable batteries, in contact with the skin can cause acid burns,
therefore, use suitable protective gloves.
• Batteries or rechargeable batteries may never be short-circuited, opened or thrown into fire. There is
a risk of explosion!
• Do not recharge normal batteries. There is a risk of explosion! Only charge rechargeable batteries
that are intended for this purpose, use suitable rechargeable battery chargers.
• Make sure that the polarity is correct when inserting the batteries/rechargeable batteries (pay
attention to the negative and positive terminals).
• If the device is not to be used for a long time (e.g. storage) remove the inserted batteries/rechargeable
batteries. Old batteries/rechargeable can leak and cause damage to the product; loss of
guarantee/warranty!
Instead of a battery, a rechargeable battery may be inserted. However, because of the
lower voltage (battery = 1.5V, rechargeable battery = 1.2V) and the limited capacitance,
the service life of a rechargeable battery is a lot shorter.
When using batteries, we recommend the use of high-quality alkaline batteries, e.g. Conrad item
number 650105 (1x required).
Controls
1 2
1 Earphones/headset output
2 Display
3 „Hold" slider for key lock
4 „ " Key for Play/Pause/Stop and On/Off
5 „EQ" key for the equalizer
6 Joystick, with operating functions (moveable up/down and left/right, as well as with key function)
„ " to select the previous audio file, to select the menu functions and for high-speed rewind
„ " to select the next audio file, to select the menu functions and for fast forward
„+" to increase the volume
„-" to decrease the volume
7 Protective cover for the USB connector
Exchangeable housing cover
If desired, the housing cover and the USB protective cover can be exchanged for versions in another
colour.
• In order to remove the housing cover, first remove the protective cover on the USB connector.
• Now lever up the housing cover, below the headset connector, carefully a little upwards, e.g. using
a finger nail.
• Then, carefully remove the housing cover upwards; take care you do not break the two small holding
hooks above and below the joystick.
• Replace the housing cover, by first inserting the holding hooks into the correct opening and the
carefully lock the housing cover into place again.
• The lid of the USB protective cover is exchanged the same way.
Inserting/Replacing the Batteries
• Open the battery compartment by sliding open the battery compartment lid a little (take note of the
printed arrow) and open it carefully. Do not exert any force!
• Insert a battery of type AAA/Micro with the correct polarity (observe labelling „Plus/+ and Minus/-" in
the battery compartment and on the battery; the minus pole is located at the edge of the housing
close to the earphones socket.
• Close the battery compartment.
• If the device can no longer be switched on, or it turns off automatically after a short period, or if there
is no longer an indication in the display. replace the battery by a new one. Dispose of the batteries
with respect to protection of the environment; see chapter ìdisposalî.
Connection to the Computer
Before the MP3 player can be used, some MP3 files have to be copied into the memory
of the MP3 player. For this purpose, connect the MP3 player to a computer.
For Windows 98SE, the driver on the included CD has to be installed before connection.
With Windows ME/XP/Vista no driver is necessary.
Connect the MP3 player to a free USB port on your computer. You do not have to turn the computer
off for this purpose.
Windows detects the new hardware and installs the driver (included in the Windows ME/XP/Vista
operating system). Then you can use the MP3 player like an external drive. You can simply copy
MP3/WMA files from the computer to the MP3 player, delete old music files, etc.
DRM-music files (copy-protected music files) can be copied to the MP3-player using
Windows Media Player. To do this it may be necessary to download and install the latest
Mediaplayer from www.microsoft.com.
3
4 5 6 7
