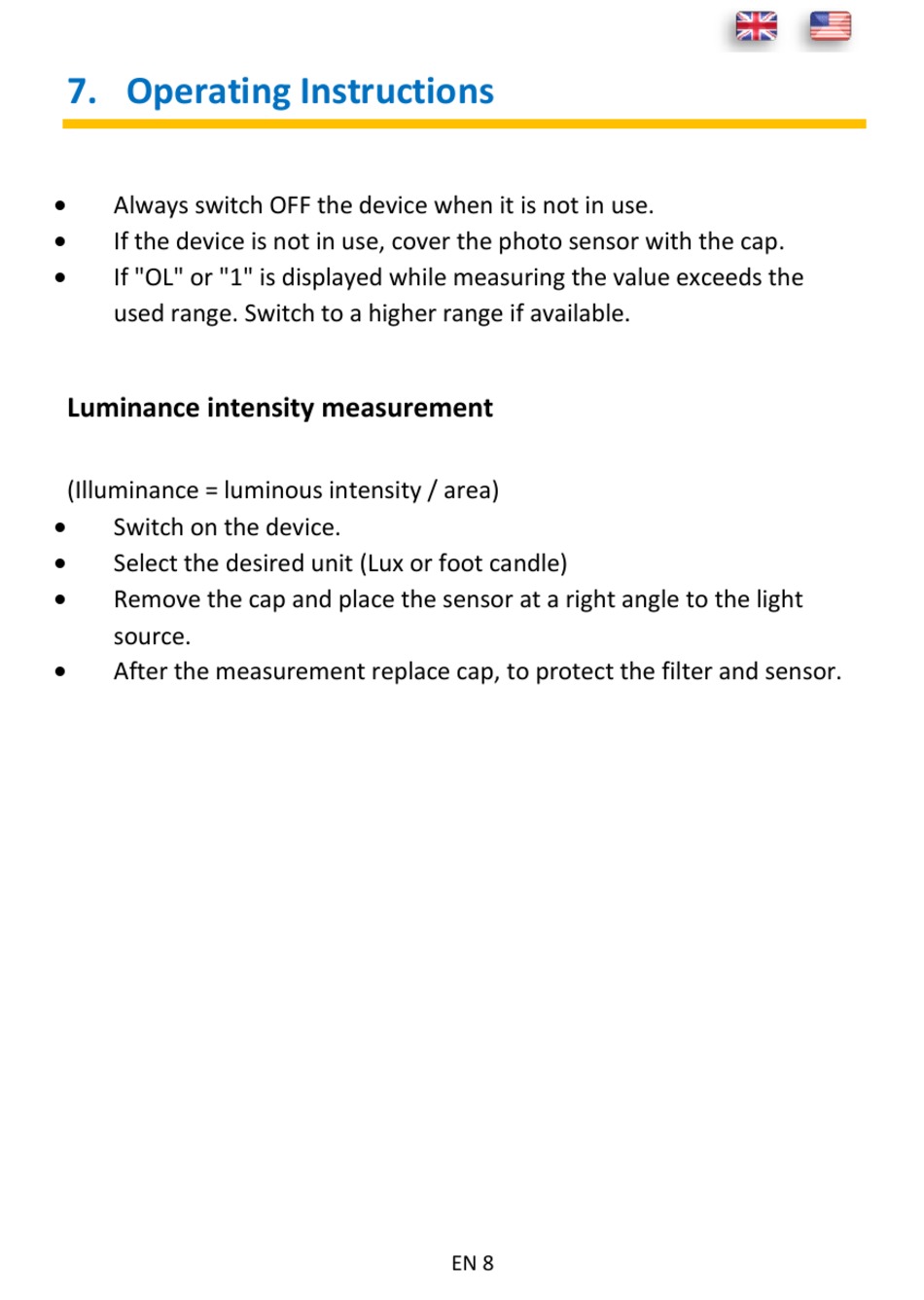

7. Operating Instructions


Always switch OFF the device when it is not in use.

If the device is not in use, cover the photo sensor with the cap.

If "OL" or "1" is displayed while measuring the value exceeds the
used range. Switch to a higher range if available.

Luminance intensity measurement

(Illuminance = luminous intensity / area)

Switch on the device.

Select the desired unit (Lux or foot candle)

Remove the cap and place the sensor at a right angle to the light
source.

After the measurement replace cap, to protect the filter and sensor.
EN 8
