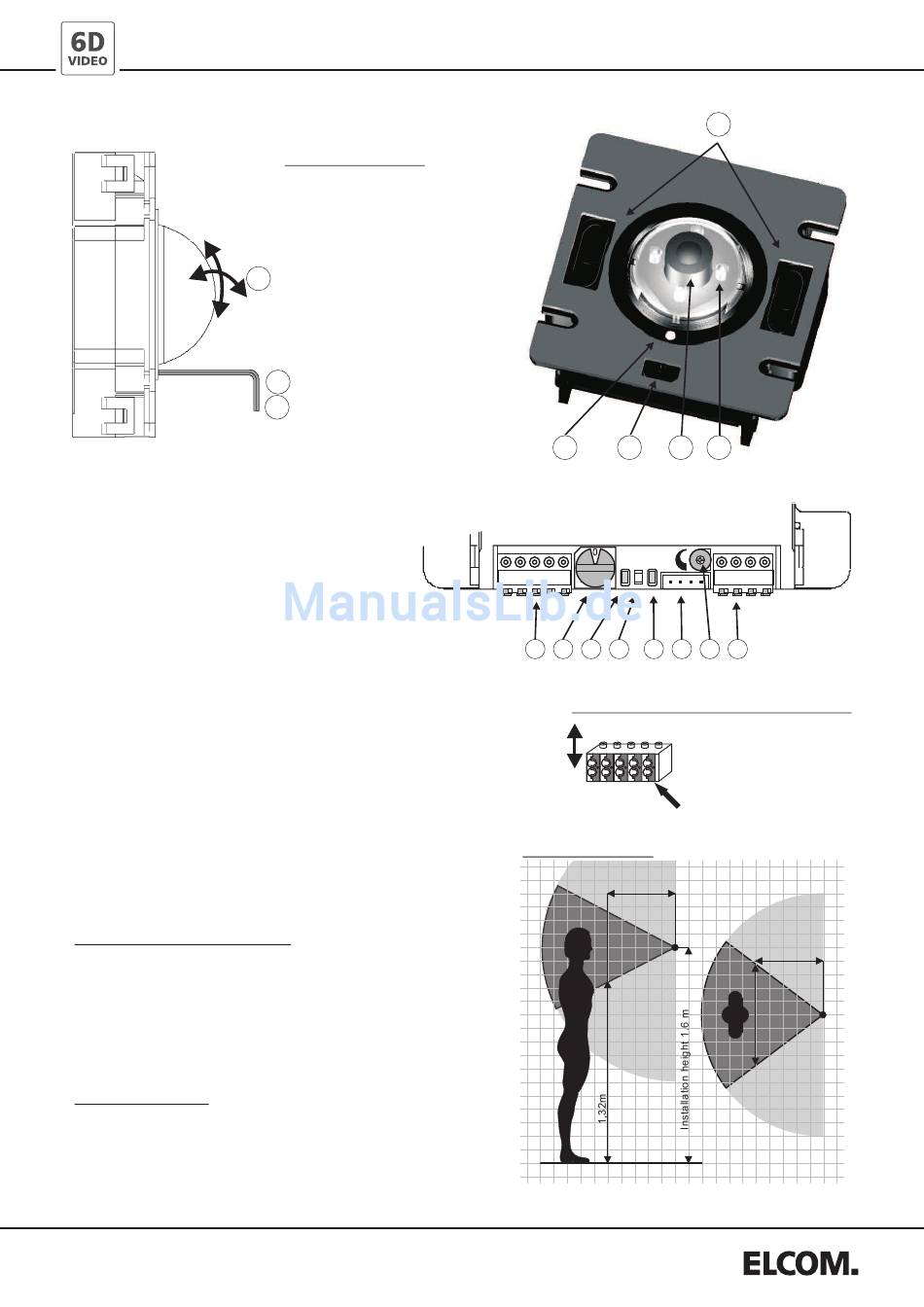

BTC-200 Door speaker + camera
Description:
1.
Fastening screw
2.
Microphone
3.
Camera
4.
Infrared light
5.
Loudspeaker
6.
Connection terminals
Terminal a/b: i2-BUS
Terminal T/T: Voltage-free door opener switch contact (max. 24 V/1 A)
Terminal L:
Light button connection (counter-pole terminal a or b)
7.
Rotary code switch (red)
Position 0-9: Addresses for door loudspeakers in the main line
Position A-F: Addresses for door loudspeakers in the subline (arcade)
8.
Jumper
(shorted: door opener only on connection; open: door opener at any time)
9.
Status LED
(indicates: outgoing call and connection status)
10. Jumper
(shorted: acknowledgement tones off; open: acknowledgement tones on)
11. Connection for i2-BUS button expander
12. Volume control
13. Connection terminals
Terminal V/W: Video signal output
Terminal a/-: Power supply (15 VDC)
Installation instructions:
The camera must not be aimed at:
- lamps or other sources of light
- direct sunlight
- bright or high-contrast picture backgrounds
- highly reflective walls
Recommended installation height approx. 1.60 m
Technical data:
System:
Video signal:
Resolution:
Photosensitivity:
Aperture angle:
Adjustment range:
Technical additions and printing errors do not constitute grounds for any claims to damages.
Art.Nr.: 0221126
Camera adjustment:
a) Loosen the fastening screw with
the enclosed key until the camera
can be moved easily.
b) Align the camera.
c) Secure the camera setting
by tightening the fastening screw.
b
a
c
(BTE-116)
i2-BUS Video 6Wire-Bussystem
Symmetrical 1 Vp-p Z = 100 Ohm
320,000 pixels
0.1 Lux / F2.0
60° vertical 80° horizontal
+/- 47° horizontal / vertical
Hotline: hotline@elcom.de
AN_BTC-200_EN_110510
TOP
2
3
1
a b T T L
6
7
8
9
10
11
Detachable connection terminal block
Camera range:
0,5m
Vertical
5
4
-
V W +
12
13
Connecting wires:
Simply plug in the wire.
(Solid conductor Ø 0.4-0.8 mm)
Disconnecting wires:
Press orange clip.
Pull out the wire.
0,5m
0,75m
Horizontal
