ZENEC ZE-RVSC62-MK2 Montageanleitung

MOUNTING INSTRUC TIONS
KEY FEATURES
• Compact high resolution rear view camera
• Automatic day and night mode with four night vision IR LED's
• Built-in microphone
• Normal or mirrored image output
• Aluminum die cast housing
• 2 m length of main wire harness with 15 m extension wire
included
DESCRIPTION:
This ZENEC rear view camera model has been developed for
use with mobile homes and caravans. The use of high quality
parts and materials for best weather resistance and longevity,
as well as the clever construction according to IP69K protection
class allow for a perfect operation in the afore mentioned target
vehicles.
CAUTION
Use the included connection cable exclusively. Modifying the cable will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP69K. However, vehicle clean-
ing using high pressure water and steam jet devices may still lead to damage of IP69K rated camera models by intrusion of water.
If the vehicle is treated with a water jet high pressure cleaning device, make sure to keep a distance of at least one meter
between the water nozzle and the camera sensor / housing.
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany
www.zenec.com

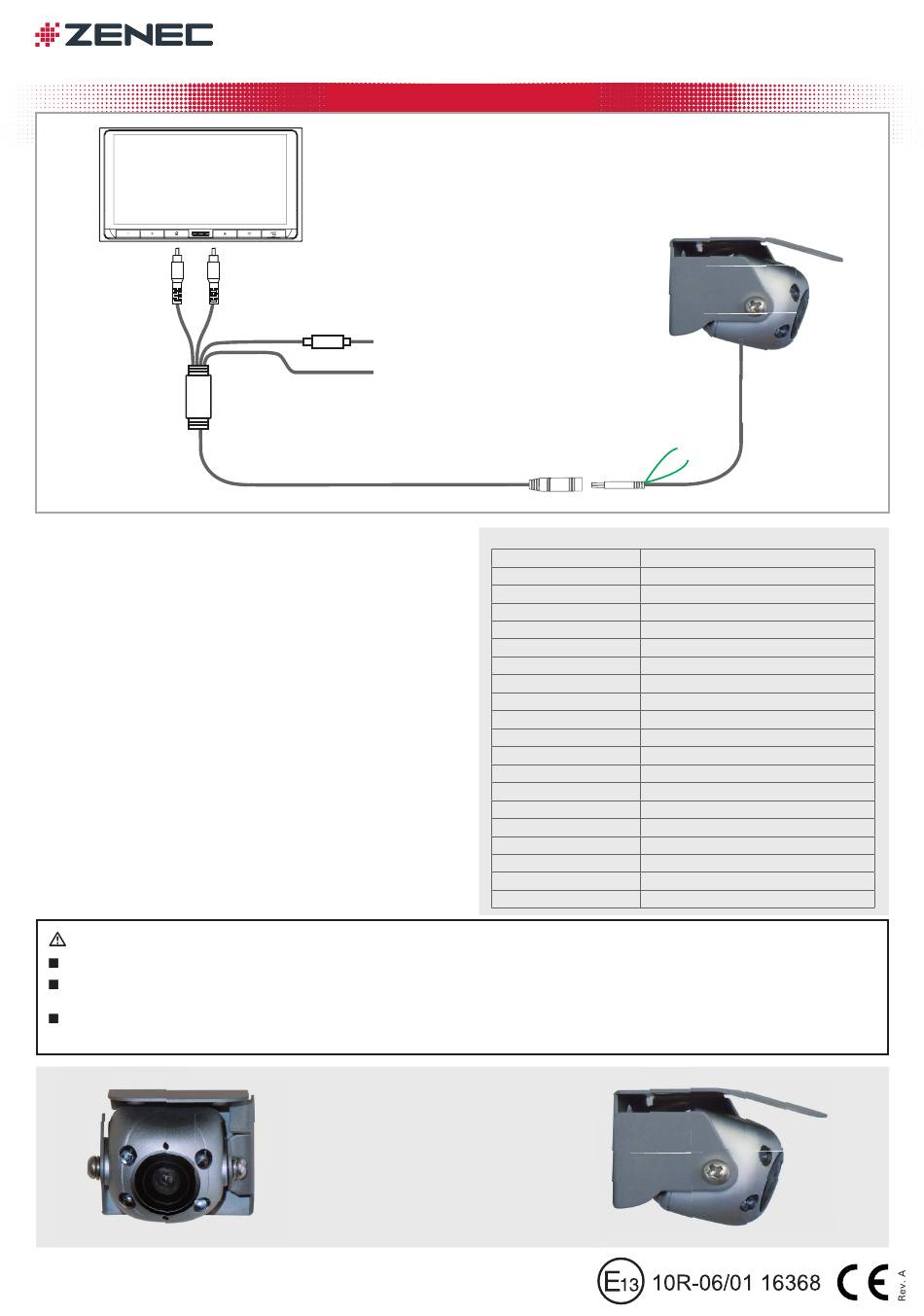

CONNECTION DIAGRAM
RCA yellow: Connect to RVC video-in
RCA White: Connect to Mic-in, where applicable
Fuse 0.5 A
Red: DC 6 -24 V
Black: GND
15.0 m
Rear view camera with four IR LED's
for use with campers, caranvans
and motorhomes
ZE-RVSC62-MK2 ZE-RVSC62-MK2
Normal/mirror image:
Green wires apart à normal image (factory default)
Both green wires connected à mirror image
Female
4 PIN mini Male
Technical Specifications
Image device: 6.09 mm SONY IMX225LQR CMOS sensor
Lens focal length: f 2.3
TV system: NTSC / 30 fps
View angle: 170° (D) x 135° (H) x 90° (V)
Native sensor resolution: 1305 (H) x 977 (V) pixels
Resolution of video-out: > 420 TV lines
Signal to noise ratio: > 48 dB
Light sensitivity: 0.3 Lux
Video output: 1.0 Vp-p, 75 ohms CVBS
White balance: Auto
Backlight compensation: Auto
Gamma correction: 0.45
Gain control: Auto
Sync system: Auto
Power supply: DC 6 - 24 V
Current consumption: 70 mA @12 VDC, ≤ 840 mW
IP protection rating: IP69K
Operating temperature: -30° C ~ +75°C, RH 95% max.
Dimensions (WxHxD): 36 x 31 x 40 mm
Weight: 60 g
RE AR VIE W C AMER A
2.0 m
