1.2 Heat pump with external
terminal box
1)

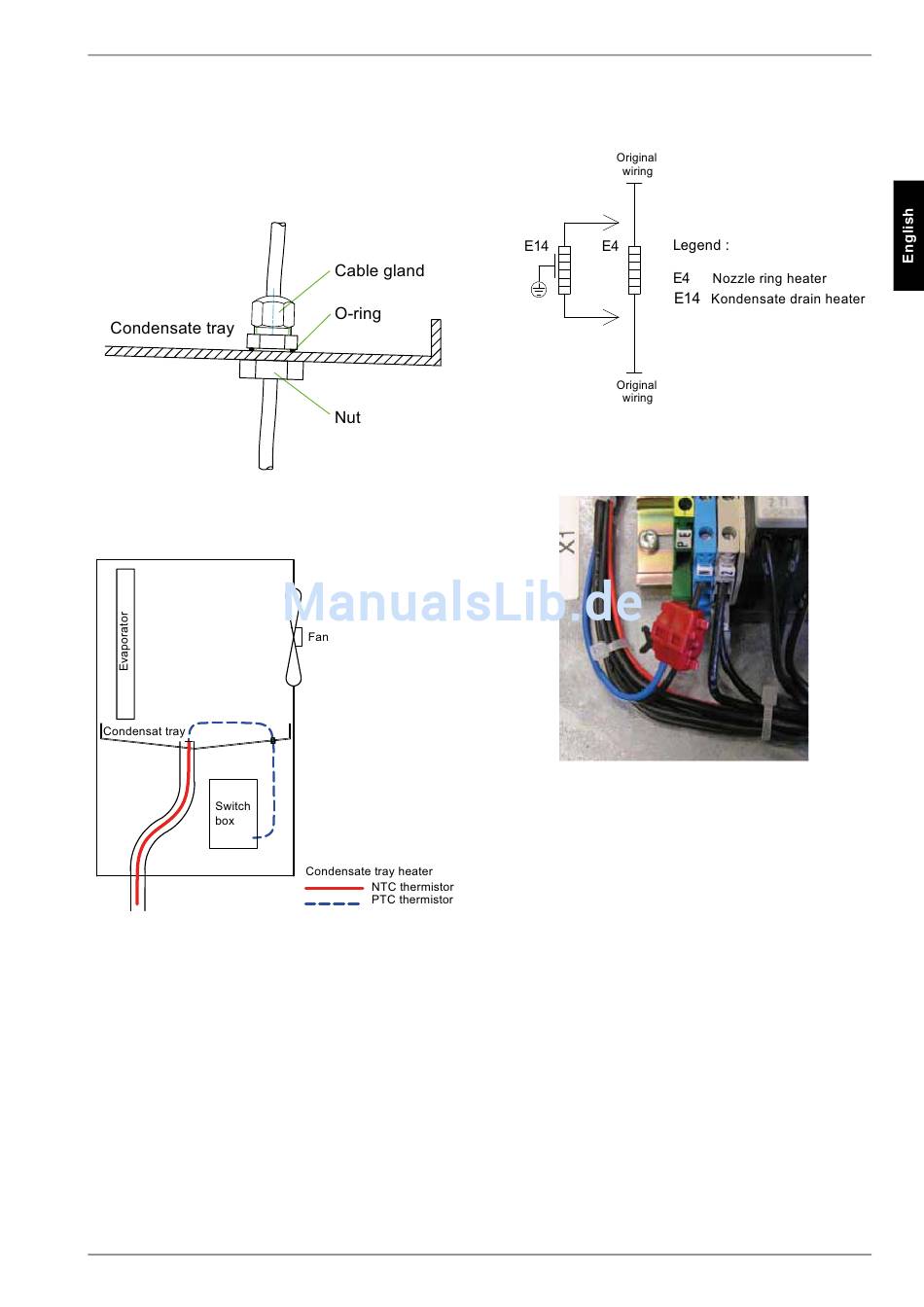

Drill a Ø 16 mm hole for an additional cable gland into the
condensate tray close to an existing cable feedthrough and
attach the supplied strain relief (see Fig.1.4 on pag. 2).
Fig. 1.4:
2)
Install the supplied condensate drain heater (see Fig.1.5 on
pag. 2).
Fig. 1.5:
3)
Route the connection line through the newly drilled hole into
the switch box and attach the line using the supplied cable
ties.
4)
Connect the line in parallel to the nozzle ring heater E4 (see
Fig.1.6 on pag. 2).
Fig. 1.6:
If there are no spare terminal connections, the supplied cable
connectors can be used to connect the affected lines (see Fig.1.7
on pag. 2).
Fig. 1.7:
5)
Make the appropriate changes to the wiring diagrams.
452158.66.96 · FD 9202
KAH 150
EN2
