Fig. 5.3 Performing the test
• Obvious outliers can only be eliminated directly after
the particular test impact with the PRINT/STORE key.
End Measurement Series:
• After the last impact of a measurement series has
been carried out, a low beep sounds. If n = 0 was set
under "Calculation of Mean Value", you must end the
measurement series with the END key.
Display after completed measurement
• At the end of the measurement series the value and
parameters are displayed as shown in Fig. 3.1.
• If "Median" is set (only possible from version 4.0 on),
the measuring display apears as shown in Fig. 5.4
respectively Fig. 5.5.
© 2006 Proceq SA
• Position the concrete test ham-
mer perpendicular to and
against the test surface. Push
the concrete test hammer
against the test surface at mo-
derate speed until the impact is
triggered (a high beep acknow-
ledges registration).
• Repeat this procedure for the
whole measurement series.

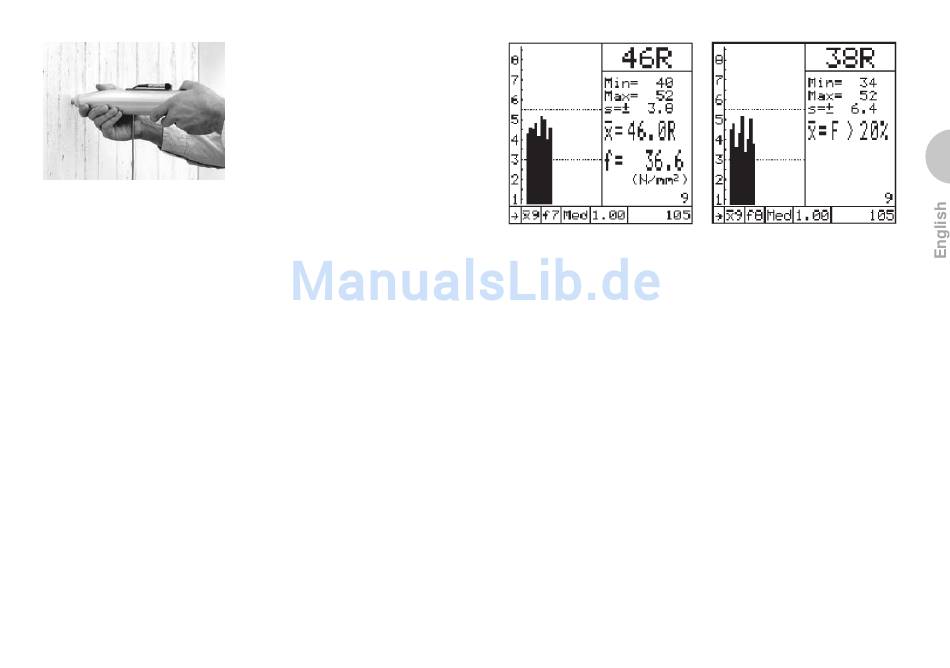

Fig. 5.4 Series meet
EN 12504/2
Remarks:
• f7 and f8 indicate the new "Japan"-curves 7 and 8.
• Med stands for median according to standard
EN 12504-2:2001Art. 7
• From the series label only the right part is shown
(number 0105, resp. 105)
New Measurement Series:
The measured values set remain unaltered:
• Continue from Fig. 5.1 with "Preparing the test
surface with a grindstone". The measurement series
number is automatically incremented by 1 after the
first test impact of the new measurement series.
Setting new values:
• Press the MENU key.
• Enter the new values as described under "Settings".
Measuring Process
Fig. 5.5 Series outside
tolerances
13
