Data Output

See under "Data Output".
When all the settings have been made on the display
unit, press the END key. The device is ready to continue
with the "Measuring Process".
5

Measuring Process

5 .1

Measuring Procedure

Preferably do perform measurements at tem-
peratures between 10 °C and 50 °C only.
The items in brackets () are illustrated in Fig. 5.6.
Perform test impacts with the concrete test hammer on a
smooth, hard surface, without the cable connected to the
display unit, before taking any measurements which you
are going to evaluate.

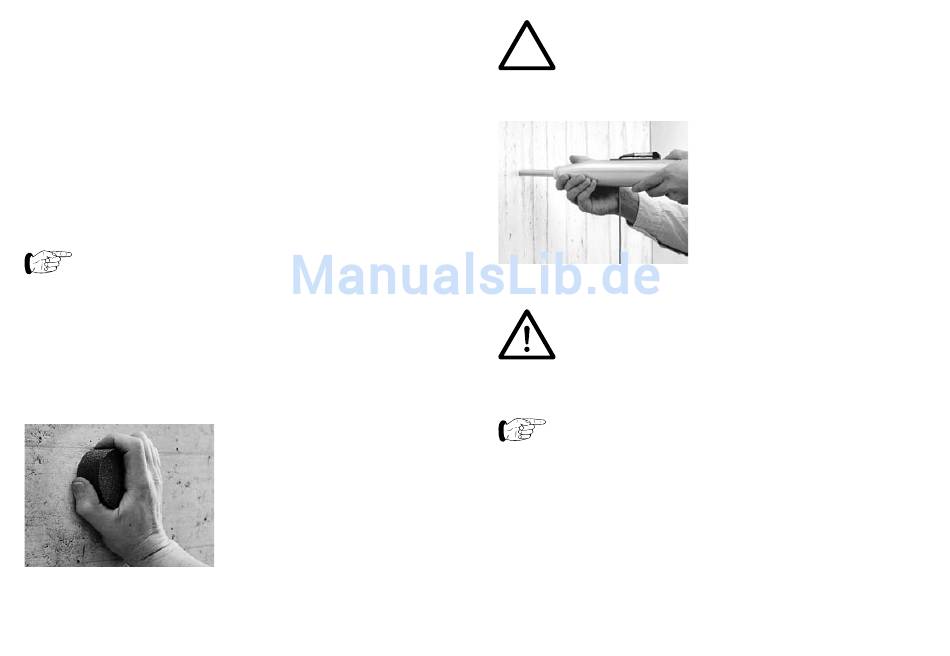

Fig. 5.1 Preparing the test surface
12 Measuring Process
• Enter the basic settings as
described under "Settings".
• Use a grindstone to smoothen
the test surface.
Warning!
The impact plunger (1) generates a recoil
when it deploys. Always hold the concrete test
hammer in both hands!
•
Fig. 5.2 Deploying the impact plunger (1)
Danger!
Always hold the concrete test hammer in
both hands, perpendicular to the test sur-
face, before you trigger the impact!
Each test surface should be tested with at
least 10 impacts.
The individual impact points must be spaced at
least 20 mm apart.
• Position the concrete test ham-
mer perpendicular to the test
surface.
• Deploy the impact plunger (1)
by pushing the concrete test
hammer towards the test sur-
face until the pushbutton (6)
springs out.
