Functional description sun protection

When the sun sensor is exposed to sun rays, the sun symbol will flash
in the display. After the sensor measures 1 minute of continuous sun-
shine, the roller shutter moves as far down to cover the sun sensor. In
order to clear the sun sensor for further monitoring, the roller shutter
then moves a few inches up. We call this roller shutter position "shade
position".
The display indicates the current light inten-
sity with the corresponding symbols (S):
(Example: strong light intensity)
If the sun sensor cannot detect any sun rays over a continuous period
of 16 minutes, the roller shutter will move up again. During this delay
time, the sun symbol will keep flashing in the display. The sensor sig-
nals are checked on a regular basis and the position of the roller
shutter position will be corrected accordingly in the course of a sunny
day.
Important: The sun sensor is only activated in between the up and
down times. If the current time does not lie within these
times, the display will indicate a moon symbol.
Remove the sun sensor, if you do not need to use the sun protection
function for an extended period of time.
17:19 Seite 71

G/S functions

s0S8:0ß0)
- 69 -
G/S functions

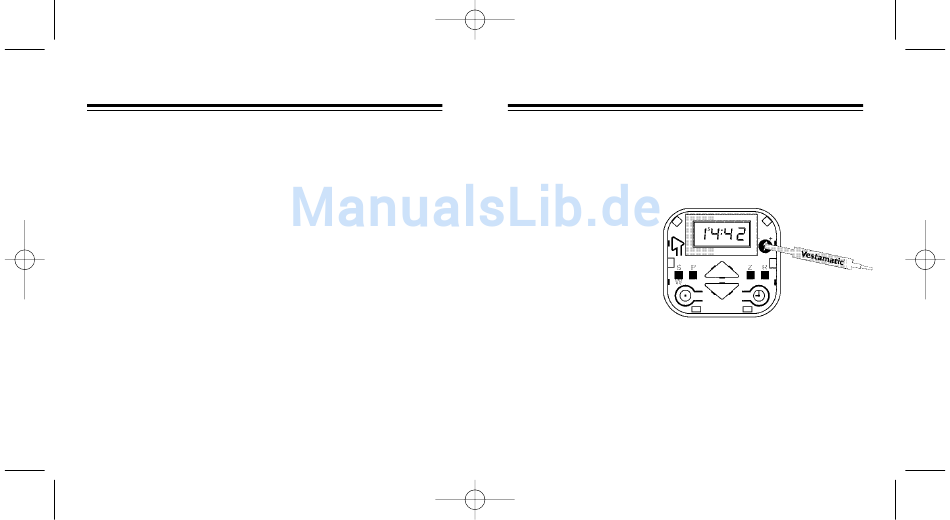

Set the response to the sun intensity with the potentiometer and the
delivered adjustment tool. Carefully pull to remove the cover cap of
the Vestamatic Rolltec Pro G/S roller shutter control.
r The roller shutter
moves down at a
low sun intensity
(approx. 12 kLux).
o The roller shutter
moves down at a
medium sun inten-
sity (approx. 17 kLux).
l The roller shutter
moves down at a
high sun intensity
(approx. 22 kLux).
Sun response delay:
Sun reset delay:
G G

Setting the response (sun intensity)

1 minute
16 minutes
- 70 -
