OPERATION

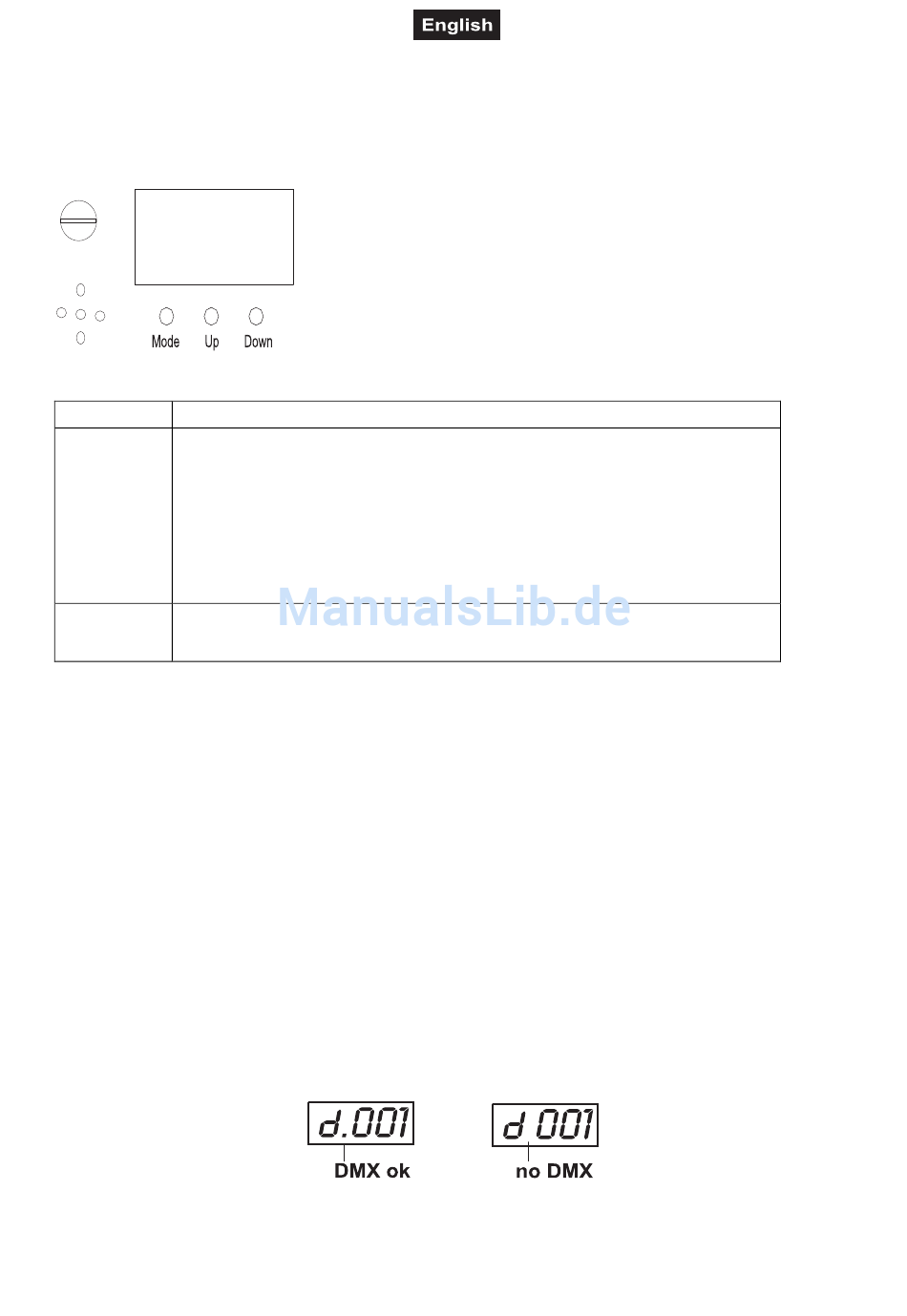

Control Board
Main menu
Function
Stand-alone operation
Master mode, automatic program mode
AUTO
With the function you can run the internal program.
Master-Mode, sound-controlled mode
SND
The device features a built-in microphone, which provides automatic sound-
control. You can adjust the sensitivity with the rotary-control on the rearpanel.
DMX mode
512
With this function you can adjust via the UP or DOWN button the desired
DMX512 starting address.
DMX-controlled operation
You can control the devices individually via your DMX-controller. Every DMX-channel has a different
occupation with different features.
Addressing
Each EUROLITE LED GF-10 occupies 3 DMX-channels. The Control Board allows you to select the DMX
starting address, which is defined as the first channel from which EUROLITE LED GF-10 will respond to the
controller.
If you set, for example, the address to channel 4, the LED GF-10 will use the channel 4 to 6 for control.
Please make sure that you don't have any overlapping channels in order to control each EUROLITE LED
GF-10 correctly and independently from any other fixture on the DMX data link.
If several EUROLITE LED GF-10 are addressed similarly, they will work synchronically.
Note:
The modes of DMX512 data are shown via the blinking control LED in the display of the device:
After switching on, the device will automatically detect whether DMX512 data is received or not. If the data is
received, the display will show "d.001" with the actually set address.
The Control Board offers several features: you can e. g. simply set
the starting address.
Enter the menu by pressing the MODE button. You can change the
selection by pressing UP or DOWN. You can leave every mode by
pressing the MODE button. The functions provided are described in
the following sections.
After you connected the effect to the mains, the LED GF-10 starts
running and the display indicates:
20/23
00057164.DOC, Version 1.0
