Description; Features; Overview - EuroLite LED GF-10 DMX Flower Effect Bedienungsanleitung

DESCRIPTION

Features

Deco flower effect
• Built-in color gobo disc and mirror disk offers a lovely effect
• Equipped with a white 10 W LED
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Dimmer
• Strobe effect
• Manual focus
• Sound-control via built-in microphone
• Microphone-sensitivity adjustable via rotary-control
• Ready for connection with power cord and safety-plug
• Addressing via control panel with 4-digit LED display
• Perfect for use with EUROLITE KLS spotlight sets with IEC outputs
• DMX control via every standard DMX controller

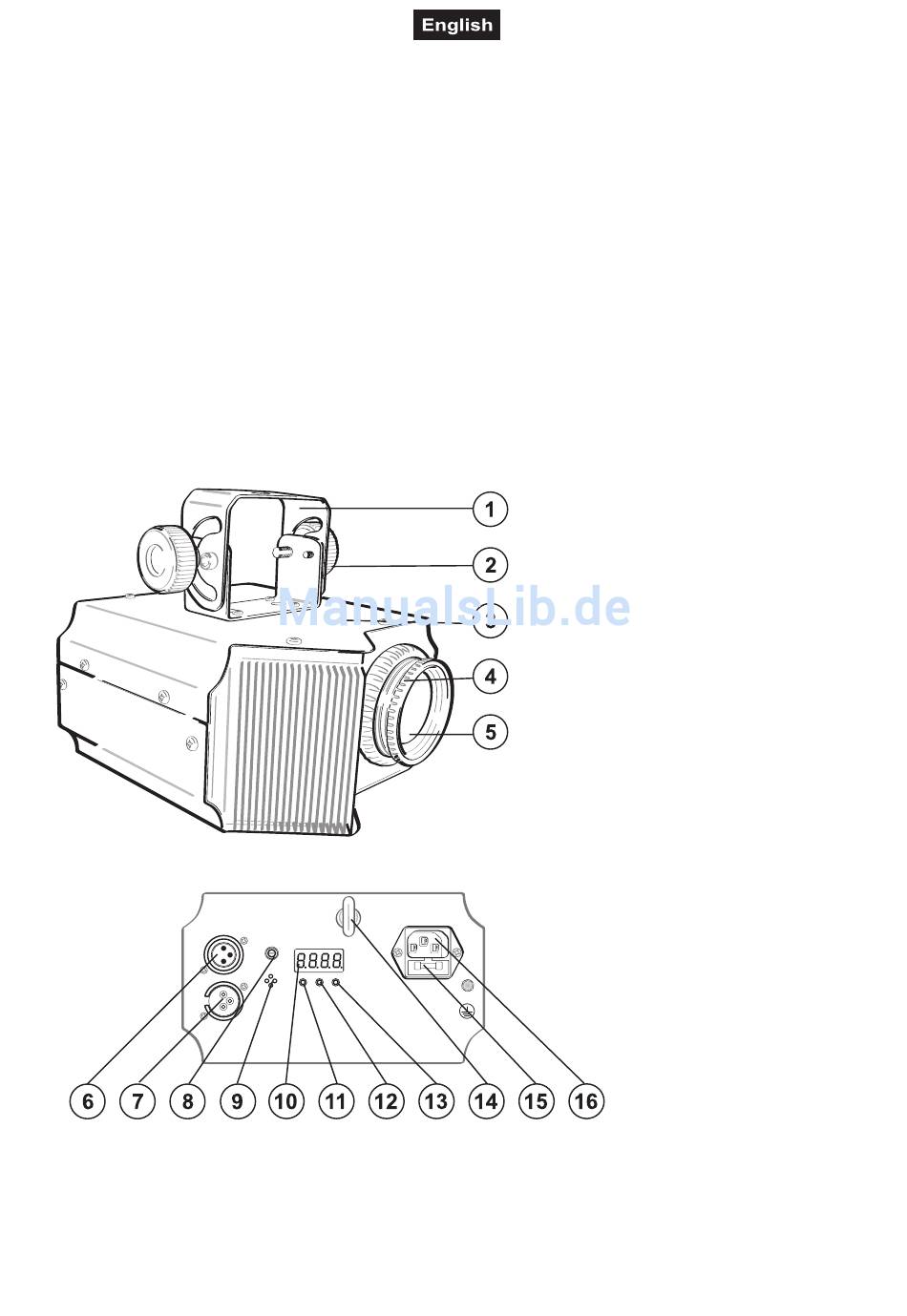

Overview

16/23
(1) Mounting bracket
(2) Fixation screw
(3) Housing
(4) Focus
(5) Objective-lens
(6) DMX-Out socket
(7) DMX-In socket
(8) Sensitivity control
(9) Microphone
(10) Display
(11) MODE button
(12) UP button
(13) DOWN button
(14) Safety eyelet
(15) Fuseholder
(16) Power input
00057164.DOC, Version 1.0
