Prior to use

Connecting Cables

Attention
• When replacing the current monitor with a T1721 monitor, be sure to change the PC settings for
resolution and vertical frequency to those which are available for the T1721 monitor referring to the
resolution table (back of cover page) before connecting the PC.
NOTE
• When connecting two PCs to the monitor, refer to the User's Manual on the CD-ROM.
1
Check that the monitor and the PC are powered off.
2

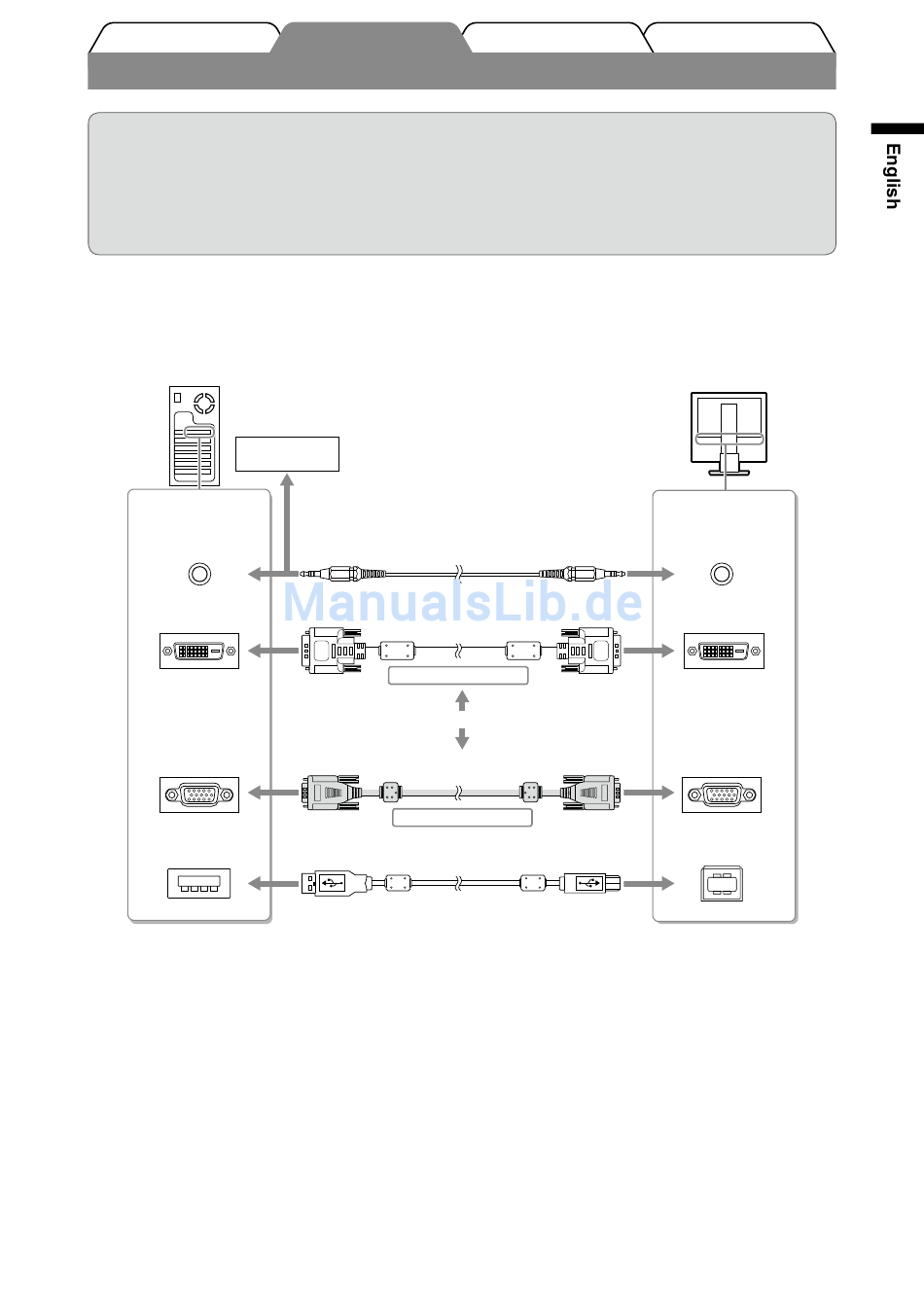

Connect the monitor to the PC with a signal cable that matches the connectors.
After connecting the cable connectors, tighten the screws of the connectors to secure the coupling.
CD player, etc
Connectors on
the PC
Audio output
connector
DVI-D connector
D-Sub mini 15-pin
connector
USB
Downstream
3
Plug the power cord into a power outlet and the Power connector on the monitor.
Installation Setting/Adjustment
Stereo mini jack cable (supplied)
Signal cable FD-C39 (supplied) *
Digital connection
or
Signal cable MD-C87 (supplied)
Analog connection
USB cable MD-C93 (supplied) *
Troubleshooting
Connectors on
the monitor
Audio input
connector
1
DVI-D connector
D-Sub mini 15-pin
connector
Upstream
2
*
1 D o not use the Dual Link cable.
*
2 R equired when used as a touch panel.
USB
3
