I n t e n t o f U s e
R a n g e o f F a s t e n e r s
n G2s is a hydro-pneumatic tool designed to place Avdel
breakstem fasteners at high speed making it ideal for batch or
flow-line assembly in a wide variety of applications throughout
all industries. It can place all fasteners listed opposite.
The tool features a vacuum system for fastener retention and
trouble free collection of the spent stems regardless of tool
orientation.
See the 'Operating Procedure', page 7, for adjustment
instructions.

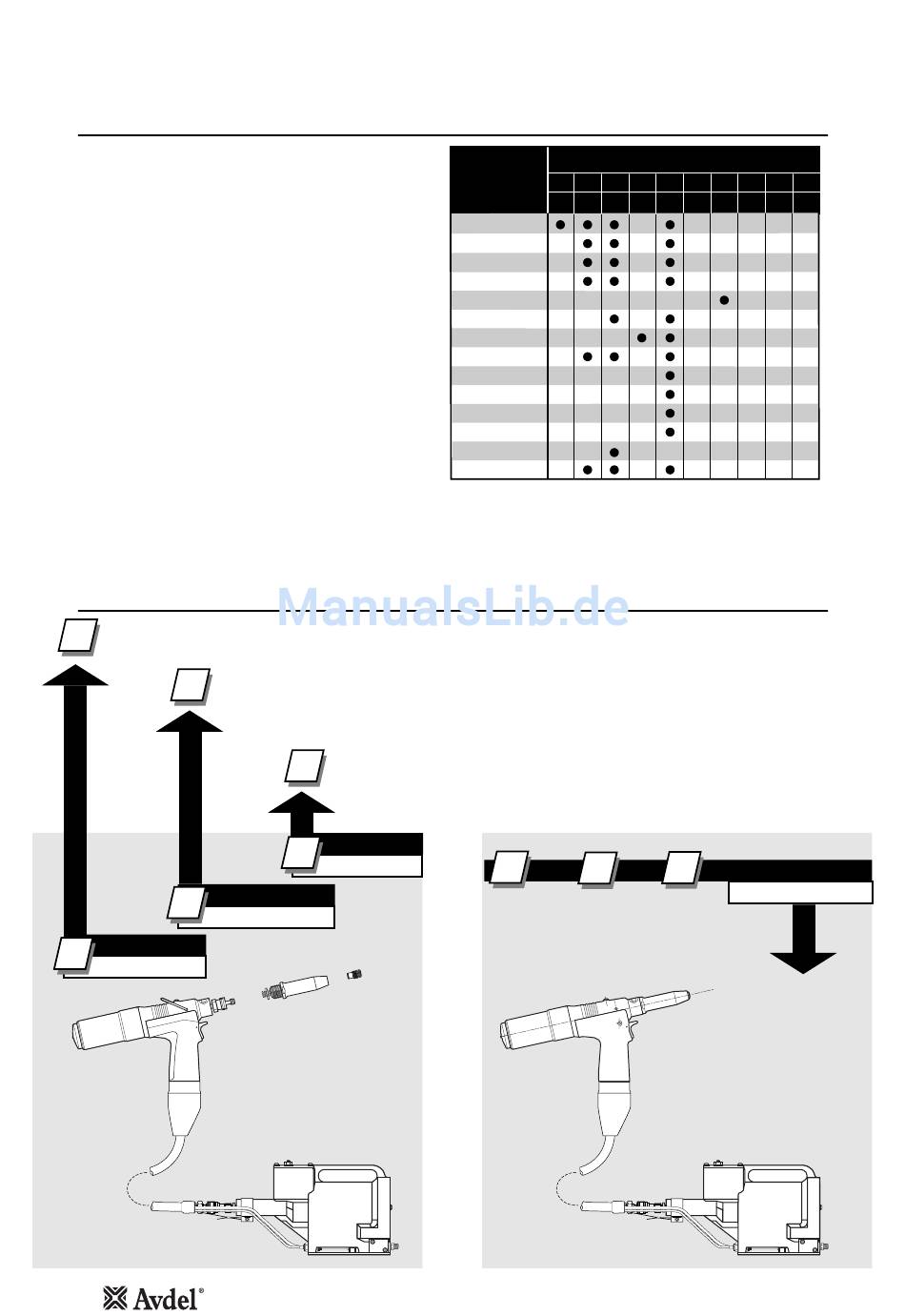

A complete tool, except the 71401-00039, is made up of three
separate elements which must be ordered individually.
See diagram below.
If you wish to place most of the fasteners in the table
opposite, you can order the 71401-00039 complete tool
comprising:
•
71401-01000 base tool.
•
71213-15000 nose assembly.
•
Nose tips 71210-05002, 71210-16070 and 07381-
04701.
Fit nose tips as indicated on pages 8 to 11.
You can order the above three nose tips and nose assembly as a nose assembly kit part number 71213-15100. For some
fasteners, the base tool, nose assembly and nose tip must be ordered separately. NOSE EQUIPMENT MUST BE FITTED AS
DESCRIBED ON PAGE 8.
P a r t N u m b e r i n g
The part number of the base tool remains the same whichever nose assembly, or nose tip is fitted. For details of the pistol, see
1
page 24. If a swivel head is fitted, the same base tool must be adapted. See details pages 13, 14 and 15.
2
NOSE ASSEMBLY
2
71213-15000
BASE TOOL
1
71401-01000
6
This single nose assembly will allow placing of fasteners by simply selecting the appropriate nose tip from
the range of type 1 nose tips. Other nose assemblies are available for applications with restricted access and
for special fasteners. See tables on pages 9 and 11. A nose assembly can be substituted by a swivel head
(see pages 13 to 15). In this case the nose tip is part of the swivel head.
The nose tip part number relates to a specific fastener. If access to the application is
3
restricted, some extended nose tips are available. See page 11 for selection table.
NOSE TIP
3
see note 3
®
FÄSTELEMENTETS STORLEK (
FÄSTELE-
MENTETS
3 3.2 4.0 4.3 4.8 5 5.2
NAMN
1
–
/
8
®
AVEX
®
STAVEX
AVINOX
®
II
®
AVIBULB
ETR
®
BULBEX
®
T-LOK
AVDEL
®
SR
®
MONOBOLT
®
INTERLOCK
®
KLAMPTITE KTR
KLAMP-TITE
®
*
®
AVSEAL
II
Q RIVET
*
For Avseal
®
equipment refer to Data Sheet 07900-00840
+
1
2
MM
tum
6
6.5 7
5
3
/
–
/
–
–
–
32
16
+
=
3
COMPLETE TOOL
71401-00 . . .
*
ADD 3 DIGITS FROM THE
LAST COLUMN OF A NOSE
TIP TABLE ON PAGE 9 OR
11.
FOR TOOLS WITH SWIVEL
HEADS USE TABLE PAGES 13
AND 14.
)
–
–
*
